Kaplan Water Turbine /Axial Flow Hydro Turbine with Zzy130-Lh-360

Name: Kaplan Water Turbine /Axial Flow Hydro Turbine with Zzy130-Lh-360
Brand: aboutgenerator.com
SKU: 700780302
Availability: InStock
Rating: 4.8 (93 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Jiangsu Aerospace Hydraulic Equipments Co., Ltd.

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Head:	3-40 M
Discharge:	9.61-14.98 M3/S
Power:	Less Than 50MW
Regulation Work:	3000-5000kgm
Size:	Medium &Small
Bearing Support:	Thin Oil Lubrication Cylindrical or Split Type
Bearing Number:	1

Product Description

Kaplan Turbine

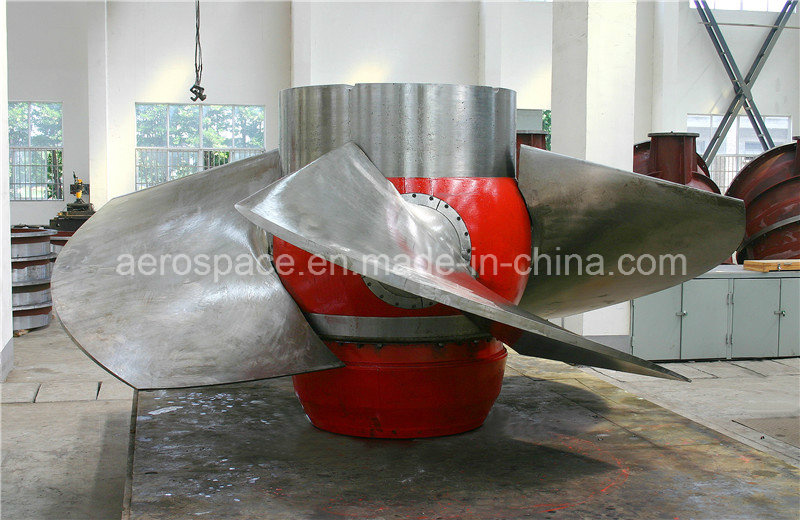

Axial flow turbine is used in the condition with low head which is between 3m and 40m and MID-large flow. It is vertical type with concrete spiral case or metal spiral case and it could be regulated blade runner and fixed blade runner. Fixed blade turbine is used in the hydropower plant whose head rangeability, is not large. And it has compact structure and will reduce the investment. Regulated blade turbine is used in the hydropower plant whose head rangeability is large. And it has complex structure .However the high effective operation zone is large and with high average efficiency. We can provide you all kinds of the kaplan turbine whose runner diameter is between 0.8m and 4.5m and output is lower than 50MW.

Turbine					Governor	Transmission
Turbine					Governor
Type	Head(m)	Discharge (m3/s)	Speed (rpm)	Power (kW)	Regulation Work (kgm)


Y130
ZDY130-LH-160	≤22	6.63-19.7	250-375	533-3341	1000-3500	Directly coupling
ZDY130-LH-180	≤22	8.26-24.6	214.3-333.3	664-4173	1000-5000	Directly coupling
ZDY130-LH-200	≤22	10.5-30.7	187.5-300	848-5236	1800-6000	Directly coupling
ZDY130-LH-225	≤22	13.8-38.7	187.5-272.7	1072-6600	3000-6500	Directly coupling
ZDY130-LH-250	≤22	16.6-48.9	166.7-250	1334-8340	3000-11000	Directly coupling
ZDY130-LH-275	≤22	20.9-61.1	150-250	1688-10420	3500-14000	Directly coupling
ZDY130-LH-300	≤22	26.1-70.3	150-214.3	2108-11989	4500-16000	Directly coupling
ZDY130-LH-350	≤22	41.7-76.4	115.4-166.7	3387-13101	7000-20000	Directly coupling
ZDY130-LH-380	≤22	51.6-97.8	115.4-166.7	4191-16771	10000-25000	Directly coupling
ZDY130-LH-410	≤22	64.5-122.2	107.1-150	5239-20955	12000-33000	Directly coupling
ZDY130-LH-450	≤22	82.1-152.7	100-136.4	6669-26185	16000-43000	Directly coupling
Y120
ZDY120-LH-160	≤40	10.4-26.1	375-500	1820-8434	1800-6000	Directly coupling
ZDY120-LH-180	≤40	13.1-33.6	333.3-500	2234-10498	3000-8000	Directly coupling
ZDY120-LH-200	≤40	15.5-40.6	272.7-428.6	2658-13048	3000-11000	Directly coupling
ZDY120-LH-225	≤40	19.8-51.9	250-375	3377-16679	4000-14000	Directly coupling
ZDY120-LH-250	≤40	24.7-64.9	214.3-333.3	4213-20972	5500-20000	Directly coupling
ZDY120-LH-275	≤40	30.9-80.6	214.3-333.3	5270-26045	7000-25000	Directly coupling
ZDY120-LH-300	≤40	38.9-96.8	187.5-300	6670-31280	9000-31000	Directly coupling
ZDY120-LH-350	≤40	49.4-129.0	166.7-250	8471-41685	12000-45000	Directly coupling
ZDY120-LH-380	≤40	61.8-148.3	150-214.3	10597-48184	16000-52000	Directly coupling
ZDY120-LH-410	≤40	76.0-161.2	136.4-187.5	13103-52375	20000-60000	Directly coupling
ZDY120-LH-450	≤40	97.2-203.1	125-187.5	16758-66347	28000-78000	Directly coupling
T03
ZDT03-LH-160	3.0-8	7-13.1	214.3-300	281-709	600-1000	Speed increase or Directly coupling
ZDT03-LH-180	3.0-8	9.58-16.2	9.58-16.2	214.3-300	1000-1800	Directly coupling
ZDT03-LH-200	3.0-8	11.5-19.5	166.6-250	451-1096	1000-1800	Directly coupling
ZDT03-LH-225	3.0-8	14.2-28	166.6-250	546-1793	1500-3000	Directly coupling
ZDT03-LH-250	3.0-8	16.8-41	100-214.3	696-2690	1800-5000	Directly coupling
ZDT03-LH-275	3.0-8	19.2-49.7	100-200	882-3255	2000-6000	Directly coupling
ZDT03-LH-300	3.0-8	23.6-59.2	93-187.5	1106-3874	3000-8000	Directly coupling
JP502
ZDJP502-LH-120	8.0-30	6.3-12.7	300-600	885-2660	1000-1800	Directly coupling
ZDJP502-LH-140	8.0-30	8.6-17.3	272.7-500	1204-3622	1000-3000	Directly coupling
ZDJP502-LH-160	8.0-30	11.3-22.6	250-428.6	1573-4730	1800-4000	Directly coupling
ZDJP502-LH-180	8.0-30	14.3-28.6	200-375	1990-5986	2000-5000	Directly coupling
ZDJP502-LH-200	8.0-30	17.6-35.3	200-333.3	2458-7391	3000-6000	Directly coupling
ZDJP502-LH-225	8.0-30	22.3-44.7	166.6-300	3111-9354	4000-8000	Directly coupling
ZDJP502-LH-250	8.0-30	27.5-55.1	150-272.7	3841-11549	5000-11000	Directly coupling
ZDJP502-LH-275	8.0-30	33.3-66.7	136.4-250	4648-13974	6500-14000	Directly coupling

WELCOME TO OUR COMPANY AND VISIT!

Jiangsu Aerospace Hydraulic Equipments Co., Ltd. (formerly State-owned Gaoyou Water Pump Factory), a state grade II enterprise and the state high-tech enterprise, is the professional manufacturer of large-scale water pump and hydro turbine unit, designated by the former ministry of machinery industry; And a key enterprise of Jiangsu province machinery industry. Now it becomes the enterprise under the No. 6 Institute of China Aerospace Science and Technology Group, with strong supports of the application technology of aerospace fluid technology and materials. Our company is the domestic large production base with the first class comprehensive ability for design and manufacturing of medium and large pump, hydro-equipments.

The main products of the company: Medium-sized and large series axial flow pump and mixed flow pump (full adjustable, semi-regulation); Medium and large series of axial flow, mixed flow, tubular Hydro Generating Units; Open series centrifugal pump, mixed flow pump, the mobile pumping station and other industrial, municipal pumps.

The company covers an area of 20 hectares, has the modern industrial workshops of 45, 000 square meters, equipped with large-scale manufacturing and CNC processing center at the leading position among the same field in China. The Company has Hydraulic Machinery Research Institute and the hydraulic test center, for research and developing on high quality complete sets of hydraulic machinery. The quality system passed the ISO9002 international quality certification. The company has is qualified of import and export business. Large scale pump and turbine generator units, has received the awards of the National Science Conference, the pump research award of the National South-North Water Diversion Project, and national and provincial science and technology progress awards.

The company is located in Economic Development Zone of Gaoyou City, Jiangsu Province, China, close to the Beijing-Shanghai Expressway, Beijing- Shanghai High-speed Railway, Yangzhou Airports, the traffic is convenient. Warmly welcome friends from home and abroad to visit and instruct us.
