| Prod Model: |
HOG SERIES |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gas Source: |
Gas |
Product Description

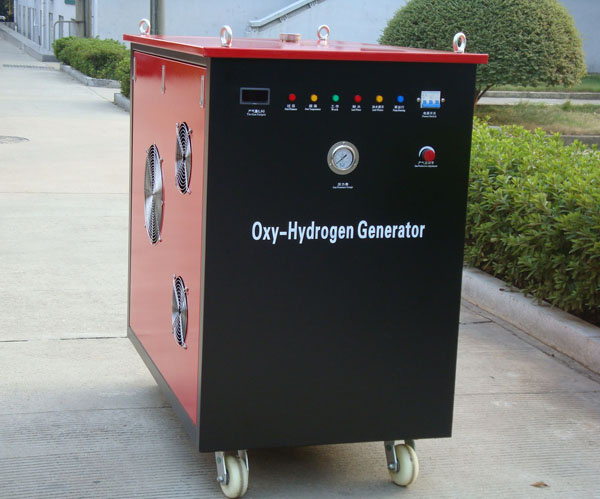

Oxyhydrogen Generator:
Water is H2O, under some circumstances, if electrolysis water, it could give out H2 and O2. Hydrogen is a quite good fuel material, in normal uses, oxygen helps hydrogen to burn into water again. Whole process is quite clean, no pollution.
Oxy-hydrogen generator just use above principle, through electrolysis water to produce H2 and O2. Main parts have: Electrolysis cell, power system, gas/water separator, cooling system, safety system, gas cleaning system, electric control systems etc. And electrolysis cell is the most important part. Our electrolysis cell is integration formed, which guarantee no liquid leakage. Promise to use 10 years on average.
|
Model No |
HOG-1500 |
HOG-3000 |
HOG-5500 |
HOG-7500 |
Gas output flow
( liter/hr) |
0--1500 |
0-3000 |
0--5000 |
0--7200 |
|
Gas output pressure |
<0.2 (MPa) |
|
Gas burning fire temperature |
2800---3000 |
|
Rated Input power ( KWH ) |
6 |
9 |
18 |
23
|
|
Normal working Power (KWH) |
3--4.5 |
7--8 |
14--16 |
18--21 |
|
Input voltage |
Four wires, three phase, AC380V±10%, 50--60HZ |
|
Water requirement |
Pure water or destilled water
|
|
Maximum Cutting Thickness |
<30mm |
<80mm |
<150mm |
<250mm |
|
Water adding |
Automatically by inside pump |
|
work environment temp |
maximum 40 centigrade |
|
Relative Humidity |
90% |
Cooling Method
|
Air cooled
|
|
Insulation Grade |
F |
|
Power Protection Frade |
IP21S |
|
Working Time |
Continuous working |
Water consumption
( L/Hr) |
0.9 |
1.8 |
3.3 |
4.5 |
|
Equipment size (mm) |
1200*800*
1200 |
1300X800X
1300 |
1500X800X
1500 |
1700X800X
1700 |
|
Weight (kgs) |
285 |
350 |
400 |
600 |
