Product Description

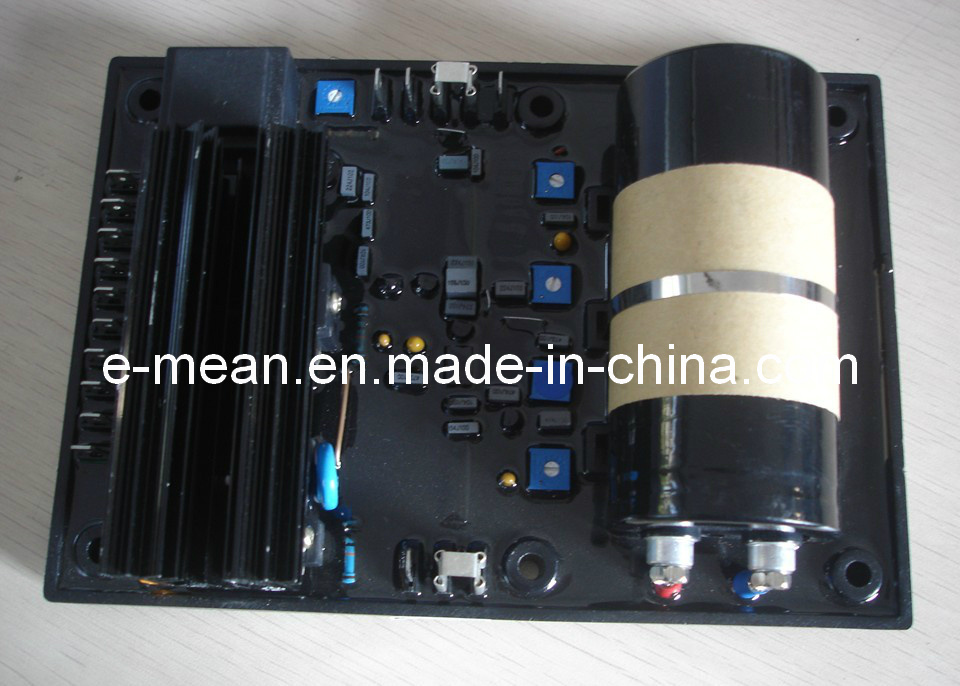

Leroy somer AVR R448
R448 is voltage regulator of a sealed electronic devices, by adjusting the excitation current in order to stabilize the output voltage of the brushless generator.
1. It is Compatible with Leroy Somer Brushless generators over 100KW
2. CE and ISO9001 certificated
3. Competitive price and good service
4. Quick delivery time
Technology data
Power Input: 30 ~ 140VAC 50/60Hz
Excitation maximum output: DC 140V/10A/10S
Detection voltage input: 110/220/400V
Remanence minimum excitation voltage: ≥ 5V/25Hz
Voltage regulation rate: ≤ ± 0.5%
External voltage potentiometer 1K/2W fine-tuning when the ± 8%
Differential input current tune: 0 ~ 1.0A
Operating temperature: -40 ~ 65 degree
Installation size: 21*14.5 *7cm
Sensing Input
Terminal 0 ~ 110V = 95 ~ 140V
0 ~ 220V = 170 ~ 260V
0 ~ 380V = 340 ~ 520V
Frequency 50 / 60 Hz, selectable
Power Input
Voltage 40 ~ 150 VAC, 3 phase
Voltage Output
Max 160VDC @120VAC
Current Output
Max 10A
Voltage Regulation
< ± 0.5% ( with 4% engine governing )
Voltage Build-up
Residual voltage at AVR terminal > 5 VAC
External Volts Adjustment
± 10% @ 1K ohm
Dimensions
203mm L * 153mm W * 60.5mm H
