Liter Per Hour Air Warm Mist OEM Steam Generator with CE Certification

Prod Model:	OEM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	OEM004 to OEM045
Use:	Air Conditioning
Steam Capacity:	4kg/H to 45kg/H
Principle:	Steam Hmidifier
Input Voltage:	3p-AC380V 440V
Room Air Conditioners Accessories:	OEM Humidifier
Control Mode:	Switch and Proportion
Main Material:	Stainless Steel
Warranty:	1 Year
Water Steam:	Pure
Power:	3kw to 35kw

Product Description

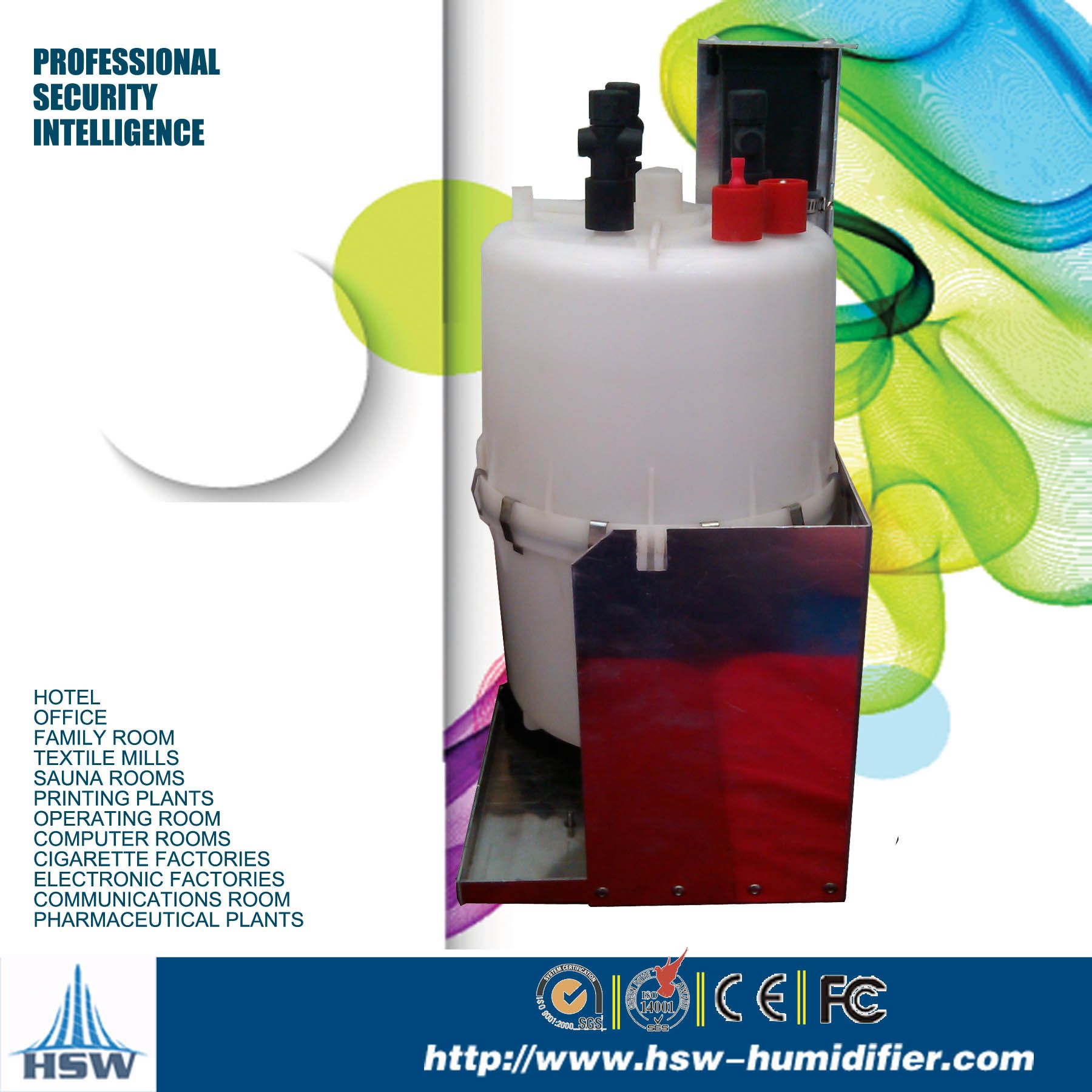

Product descriptions OEM series humidifier has no external enclosure and is usually supplied with spare parts package,which includes the water assembly,circuit board,steam hose and steam distributor,etc.It is mainly used to computer room air conditioning,constant temperature and humidity chamber.Control mode (on/of or proportional)posit box or other similar products as a steam generator. Customer installs OEM humidifier inside the air conditioning units and put the circuit board within the electrical cabinet of AC. Customer needs additional AC contactors,air swithes,wires,plugs and other accessories to establish a complete humidifier system. component of product which includes the water assembly,circuit board,steam hose and steam distributor,etc. Applications Purifying air conditioning,AHU,fan coil unit,constant temperature and humidity air conditioning,cold storage,heritage preservation,archives,laboratories,computer rooms,communications room,office,family room,hotel,operating room,printing plants,electronic factories,cigarette factories,pharmaceutical plants,textile mills,etc. purchasing Notification Please provide information below: Steam Capacity of humidifier Power supply (voltage,phase,frequency) Length of steam hose Length of steam distributor Control mode (on/of or proportional) Water supply Leading technology The world's only electrode humidifier that 32-bit low-power micro-processing chip; The world's only electrode humidifier controller that uses neural networks and artificial intellingence algorithms; The world only electrode humidifier that supports WIFI communications for monitoring and controlling networks; The world's only built-in micro-chip in cylinder for intelligent cylinder working process control; The world's only electrode humidifier who has high-grade electric leakage protection function; The world's only super-cleaning functioned electrode humidifier; Technical parameters Model 004 008 015 023 032 045 Steam Capacity Kg/h 4 8 15 23 32 45 Lb/h 9 18 33 51 71 100 Voltage V 3phases,380VAC Phase Current A 4.4 8.8 16.5 25.3 35.2 49.5 Power KW 3 6 11.5 17.5 24.3 34.2 Controller Voltage 2phases,220VAC,50/60Hz Cylinder Model C4 C8 C15 C23 C32 C45 Size(mm) Width 220 220 280 280 330 330 Thickness 230 230 280 280 330 330 height 450 500 550 550 650 650 Weight Kg 8.8 9.3 14.5 15.5 22.0 23.5 Diameter of steam outlet mm 22 35 Diameter of water inlet 6′male thread Diameter of water drainage mm 32
