Capacity:
30-5000kVA
Purpose:
Mining, Construction, Community
Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Air Cooled
Output Type:
AC Three Phase
Product Description

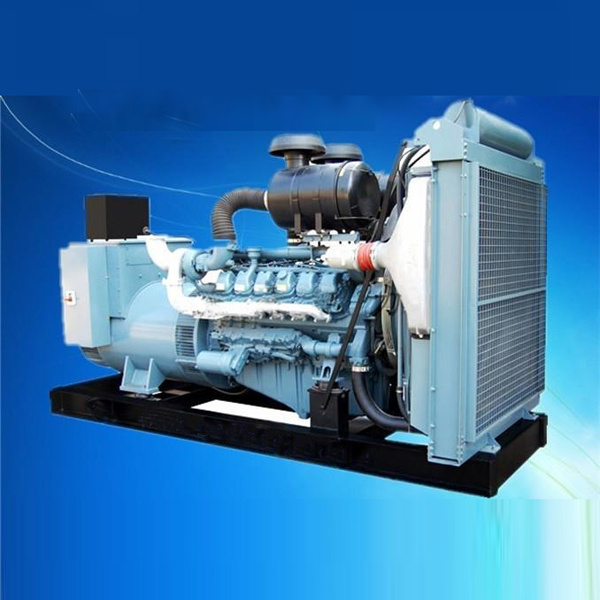

MAN engines, under the same cubic capacity with much higher output power and much better environmental protection performance have been the representative particular for MAN generating sets application. They can satisfy with the harsh requirement of the generators and were developed under the newest technology study. This promised the absolute reliability, usability and economy during their operations. These are the strongpoint for those MAN generating sets manufactures and similar operators. In addition, MAN engines have much more merits to mention in the environmental protection aspect, such like their gas exhaust and noise discharge are the best among those engines. Herein according to the comparatively strict environment law and regulation, the diesel engine will play a very important role and those industrial departments will benefit from the application of those high-speed diesel engines.
The design of MAN diesel engine is light, strong power supply permanence application, low fuel consumption and can operating continuously. Thus as far as the engine is concerned, they showed many convinced merits for the customers. The MAN engines are developed and manufacture for generating power are D28 series (D2688, D2876, D2848, D2840, and D2842), D08 series are also available for small 6 cylinders engines.
Genset Model
Prime Power (KW/KVA)
Engine Model
Cylinders
Bore/Stroke (mm)
Fuel Cons. (L/hr)
Dimensions (L× W× H) (mm)
Weight (kg)
KH-280GF
280 / 350
D2866LE201
6
128/155
72
3100× 1200× 1850
2350
KH-320GF
320 / 400
D2866LE203
6
128/155
76
3100× 1200× 1850
2600
KH-350GF
350 / 438
D2876LE201
6
128/166
85
3200× 1135× 1954
2760
KH-400GF
400 / 500
D2876LE203
6
128/166
85
3200× 1135× 1954
2760
KH-450GF
450 / 563
D2848LE213
8
128/142
118
3140× 1380× 1995
3050
KH-450GF
450 / 563
D2840LE201
10
128/142
108
3140× 1180× 1995
3050
KH-500GF
500 / 625
D2840LE203
10
128/142
117
3140× 1380× 1995
3150
KH-550GF
550 / 688
D2840LE213
10
128/142
145
3670× 1400× 1995
3880
KH-550GF
550 / 688
D2842LE201
12
128/142
129
3670× 1610× 1995
3880
KH-600GF
600 / 750
D2842LE203
12
128/142
138
3670× 1610× 1995
3950
KH-650GF
650 / 813
D2842LE213
12
128/142
151
3670× 1631× 2010
3990
KH-800GF
800/ 1000
D2862LE223
12
128/157
189
3750× 1631× 1950
4170
Eternoo machinery Co., Ltd is a comprehensive manufacturing and trading company. Our cooperative factory has land coverage of over 8.13 million square meters, fixed assets of about USD 200 million, and a staff of over 3200. In recent years, over 0.4 billion yuan for technical transformation was invested, mainly used to imported advanced CNC and other modern equipment from Germany, United States, and Switzerland. Now there are over 3800 sets of machines in the factory, forming multiple product line. At present, the factory has formed stronger production capacity in precision machining, standard machinery work, large equipment manufacturing etc.
Our product line mainly around the development and construction of hydropower stations including relative hydro-power equipment, substation and auto-control equipment, penstock and engineering machine, lifting equipment, steel structure and relative construction material. Besides various products manufactured by our factories, we also have a member of affiliated companies that provide us with items to be marketed overseas. Our company has independent import and export rights.
For the hydro-power equipment, our supplying ability can be up to 200MW, except the turbine-generator, we also can supply hydro-power station the complete set of mechanical & electric system from water to wire, including water turbine-generator system, governor, excitation system, technical water supply system, drainage system, measurement equipment system, DC power supply system, auxiliary AC power distribution system, high-voltage switch cabinet, integrated automation system, metering system, computer protection system, grounding devices and booster station switching equipment etc.
The productions enjoy popularity in many places in China, and export some countries and districts such as Middle East, south American, Africa, and east-south Asia.
We have a first-class technical service and installation team who can provide quality installation service and good after-sales service.
Advanced ISO9001 quality control system to ensure the quality and reliability of our products, and sincerely hope to cooperate with you!
