Model:
Small Wind Turbine for Home
Max Power:
400W
Blades:
5
Start-up Wind Speed:
2m/S
Cut-in Wind Speed:
2.5m/S
Mount:
1.9 Inch (48 Mm) Od Pipe
Body:
Cast Aluminum
Survival Wind Speed:
50 M/S
Certificate:
ISO9001:2008 ,CE, RoHS
Warranty:
3years
Number Of Blade:
Three Blade
Rotating Shaft:
Horizontal
Stress Way Of Blade:
Resistance
Phase:
3phase Generator
Product Description

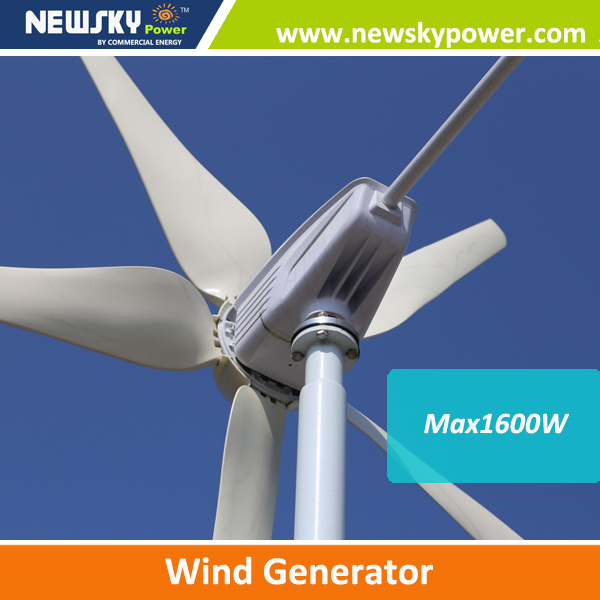

MAX400W600W800W1000W1200W small wind generator for home
Bearing from "SKF" Sweden.
Stainless steel screw bolt from "THE".
Primary aluminum housing, not secondary aluminum.
Low start-up wind speed
High-efficient Generator
Perfect Wind Wheel System
Unique Design Of The Rudder
Damp-proof, sand-proof, Anti-rust, Anticorrosion
Easy installation, Free of maintenance, Long lifespan over 15years.
Model
MAX 400W
MAX 600W
MAX 800W
MAX 1200W
Rated power
400W
600W
800W
1200W
Max power
450W
750W
950W
1300W
Rated voltage
12/24 VDC
24 VDC
48 VDC
48VDC/110VDC
Rated current
33A/16.7A
25A
16.7A
25A/10.9A
Rated Rpm
650
Blades
5 Pcs Nylon Fiber glass
Rated wind speed
11m/s
12m/s
Start-Up Wind Speed
1.5 ( m/s)
1.5 ( m/s)
1.5 ( m/s)
2.0 ( m/s)
Cut-In Wind Speed
2.0 (m/s)
2.0 (m/s)
2.0 (m/s)
2.5 (m/s)
Rotor Diameter
1.7 m
1.7 m
1.8 m
2.0 m
N.W
23KG
28.5KG
30KG
36KG
G.W
28KG
33KG
35.5KG
41KG
Shipping Dimensions
1690*540*290mm
1690*540*290mm
1690*540*290mm
1890*540*290mm
Mount
Flange connection
Turbine Controller
MPPT wind solar hybrid controller
Body
Cast aluminum
Overspeed Protection
Electromagnetic & blade aerodynamic braking
Working temperature
-20ºC~ 120ºC
Certificate
ISO9001:2008 ,CE, Rohs
Survival Wind Speed
50 m/s
Warranty
3 year limited warranty

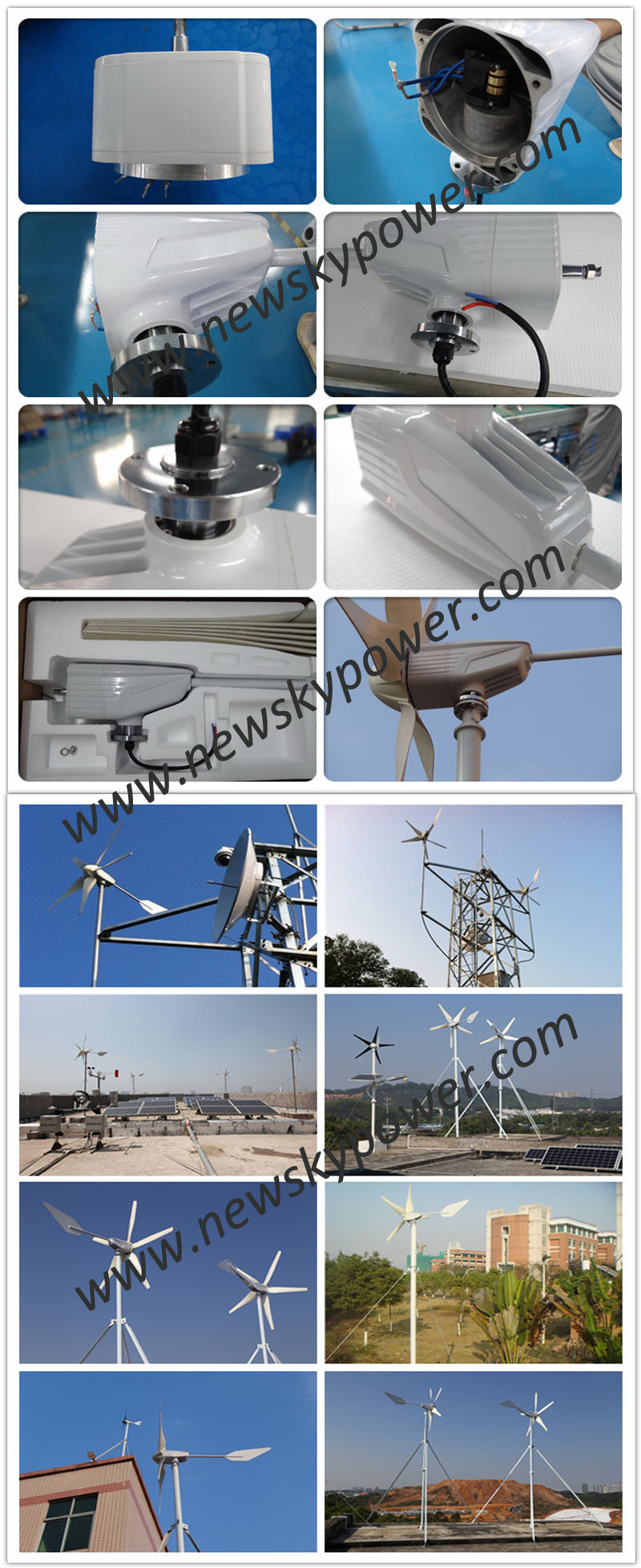

Guangxi Pingguo primary aluminum, not recycled aluminum, the free of impurities, higher hardness
Innovative unique square design. No exposed screws, abandon the traditional single screw connecting stress, adopts embedded connection, the overall motor and blade stress is uniformly distributed on the circular mosaic surface
Sweden original import bearing, low temperature resistant of -40 degrees , adapt to the alpine areas (Tibet, Xinjiang, Inner Mongolia, Northeast China, Russia, Europe, Canada), longer service life.
Taiwan Dongming 304 stainless steel screws, quality assurance, no rust and fracture, enhance its durability and life expectancy
Blade and hub: unique patented design, inserted connection, closely connected effectively ensure the safety
Nylon / glass fiber composite high strength blade, resistant to -40 degrees is not broken, anti UV UV aging, longer life. Enhancement and thickness design of blade, high density and intensity pressure injection, better ablility of wind resistance ,and reduces the noise.
Body rotation yaw sleeve, the first use of built-in type design, more beautiful. Yaw shaft built-in way, make the yaw and the host machine body increased upper and lower connecting area, uniform stress distribution, safe and beautiful.
Longer tail rudder design, enhance the ability of matching wind, giving higher generation efficiency. The use of novel high-quality aerospace industry level color galvanizing technology, longer oxidation time.
Clip: double insurance, prevent the wheels fly off.

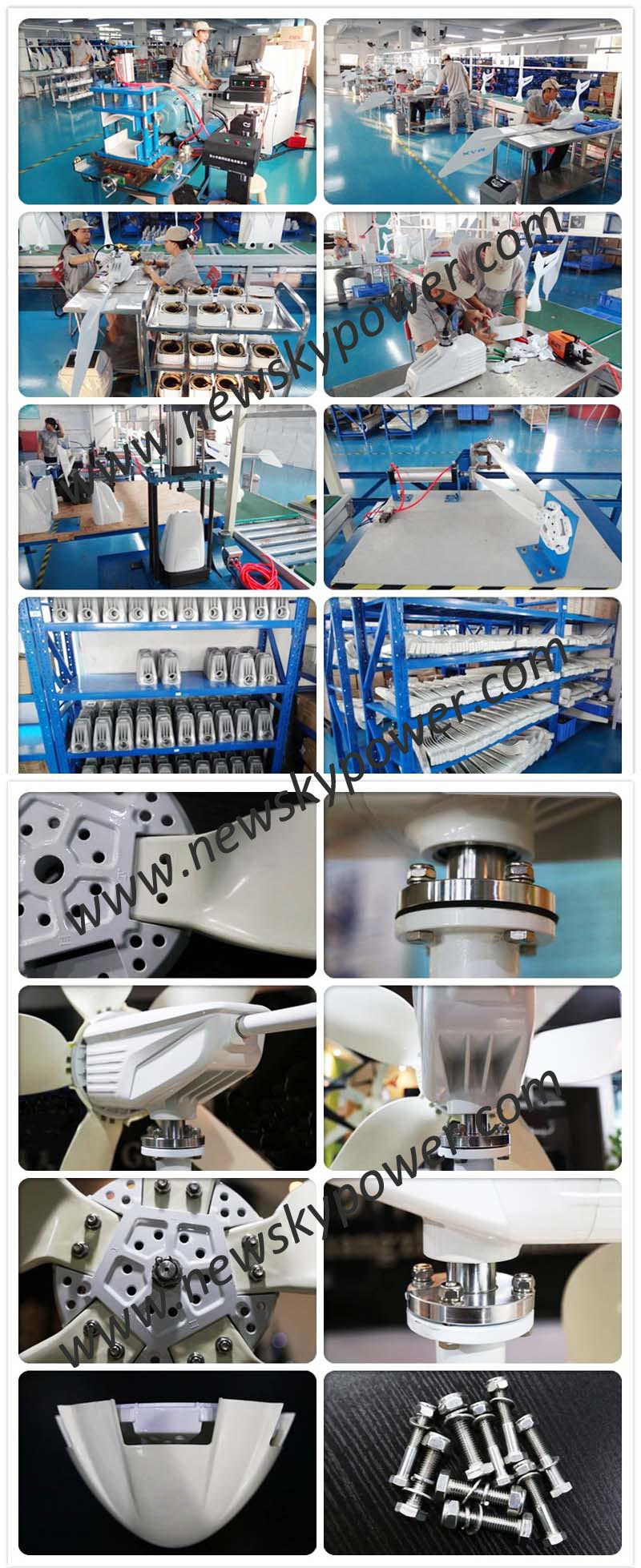

Qingdao commercial energy electronics Co., Ltd is subsidiary corporation of Commercial energy group limited, We are manufacturer of solar and wind products over 7years with well-equipped testing facilities and strong technical force. Our main products are all in one solar street light, MPPT solar charge controller, Phocos solar charge controller, solar refrigerator & freezer, wind turbine.
"NEWSKY POWER" is our brand which is one of the famous trademarks of China. With world advanced quality and technology, the products enjoy high reputation and wide influence in the domestic and overseas markets. It occupies most of the consumption market with its high product quality and sincere service
Thanks to its strong professional technical strength, strict quality management system, measuring and inspection system, standardization system, informatization system and modernized scientific management means, it exerts the potential advantages of sustainable development and undisputedly ranks the leading position in the same industry, becoming an acknowledged leading enterprise and excellent representative in China renewable industry.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
