| Prod Model: |
JAY-10/15/20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Oxygen Flow: |
15L/Mi |
| Oxygen Purity: |
93%+-3% |
| Oxygen Outlet Pressure: |
0.14-0.4mpa |
| LCD Display: |
With LCD Display |
| Group: |
Adult |
| Kind: |
Oxygen Concentrator |
| Function: |
Produce Oxygen |
| Theory: |
Psa Oxygen Generator |
Product Description

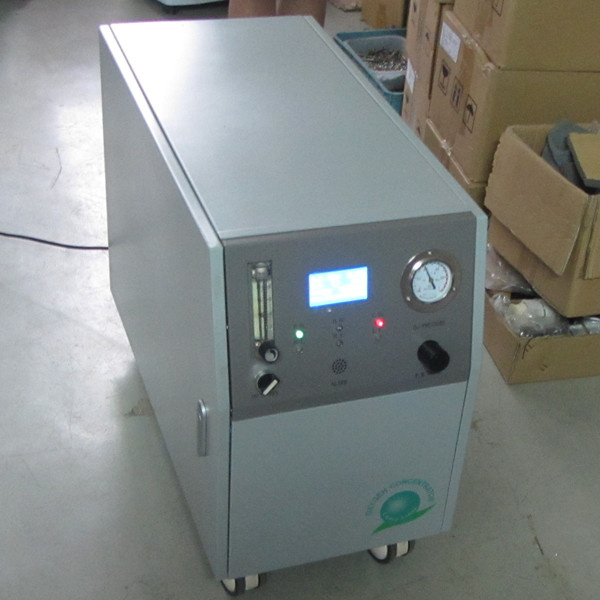

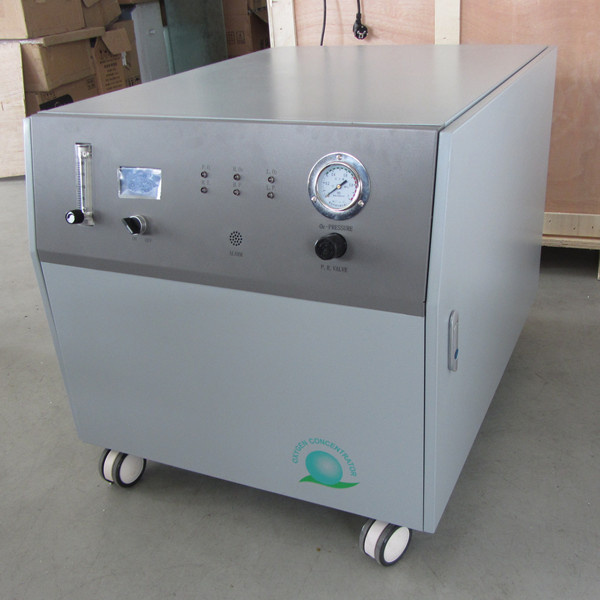

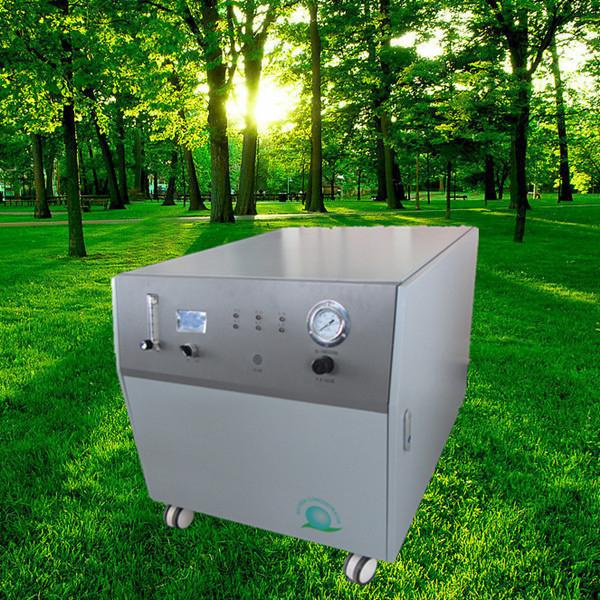

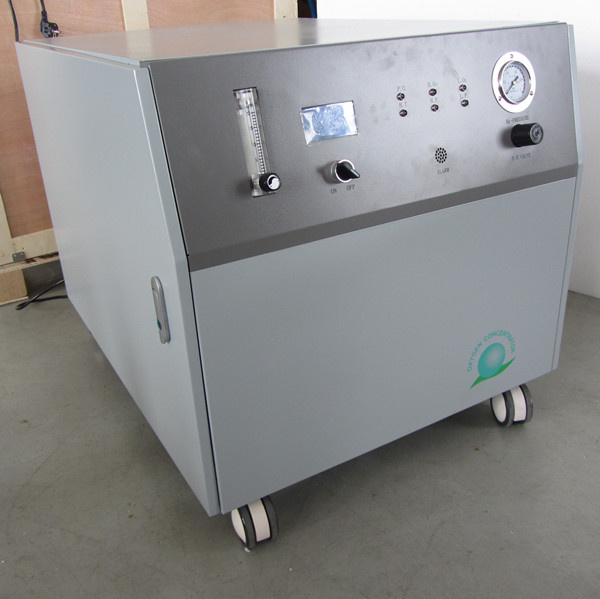

Large pressure oxygen concentrator(JAY-15)
Features:
Automatic on and off
Manually remove the alarm
Emergency stop button
Audio and visual alarm for high&low pressure
Full digital control system
Low purity alarm function
Specification
Oxygen flow (L/min): 15
Air flow (L/min): 15
Oxygen outlet pressure (Mpa): ≥ 0.38Mpa
Air outlet pressure (Mpa): ≥ 0.38Mpa
Oxygen concentration: ≥ 90%
Sound level: ≤ 60dB
Power: AC220V± 10%, 50/60± 1Hz; AC110V± 10%, 50/60± 1Hz
Power consumption: ≤ 1250W
Alarm: Power failure alarm, high&low pressure alarm
Net weight: 80kg
Size(cm): 60*50*100.
| Model | JAY-10 | JAY-15 | JAY-20 |
| Oxygen Flow | 0-10L/min | 0-15L/min | 0-20L/min |
| Outlet Pressure(Mpa) | 0.14-0.4 |
| Oxygen concentration | 93%±3% |
| Sound level(dB) | ≤55 db | ≤60db | ≤60db |
| Power | AC220V±22V 50Hz±1HzAC230V, 50Hz(AC220V/110V±10%, 50/60±1Hz are available) |
| Power Consumption | 600/850 | 1500/1550 | 1800 |
| LCD display | Switch times, Operating pressure, Present Working Time Accumulating Time,Presetting time from 10 mins to 40 hours |
| Alarm | Power failure alarm, High&Low pressure alarm; |
| Dehumidifier | Automatic Dehumidifier | Automatic Dehumidifier/ Refrigerated air Dryer | Refrigerated air Dryer |
| Net weight (Kg) | 45/ 65 Kgs | 85/118 Kgs | 125 Kgs |
| Size (mm) | 365x375x600mm
830*360*600mm | 920x360x660mm
860x580x660mm | 860x640x660mm |
Longfian Scitech Co., Ltd, located in Longxing Building A(413), 77 Longxing Road, 071051 Baoding China, The company has first-class professional management personnel and research&development technical team, with their own product development capabilities, mainly engaged in medical molecular sieve oxygen concentrator as well as assorting the development of electronic products, now has a variety of standard models and a variety of uses oxygen concentrator, has successfully developed JAY-1, JAY-2, JAY-3, JAY-5, JAY-6, JAY-8, JAY-10 type normal pressure medical oxygen concentrator, JAY-10-4.0, JAY-15-4.0, JAY-20-3.5 with 0.14 ~ 4KG pressure of high-pressure oxygen concentrator, industrial oxygen concentrator and ozone generator etc.; The product has got EU's CE certificate, ISO certificate and FDA certificate, and exported to the United States, France, Spain, Germany, Russia, India, Singapore, Turkey, Thailand etc. More than 60 countries and regions, enjoy a high reputation in Foreign markets
In recent years, the company has joined OEM companies and developed some related medical products for the demands of market, especially for pulse oximeter, SpO2&Blood pressure monitor, SpO2&ECG monitor, syringe pump, infusion pump, etc.
Our goal is "PROFESSIONAL IN QUALITY, FOCUS ON RESPIRATORY PRODUCTS ", to meet the demands of various specialists of medical field and continue to bring you not just the innovative equipment but also the most reliable, long-lasting & quality products.
