Material:
Ceramic Catalyst and Metal Catalyst
Conten:
Greater Than or Equal 85%
Implementation Of Quality Standards:
ISO 16949
Classification:
Catalyst Carrier
Usage:
Treat Engine Exhaust
Product Description

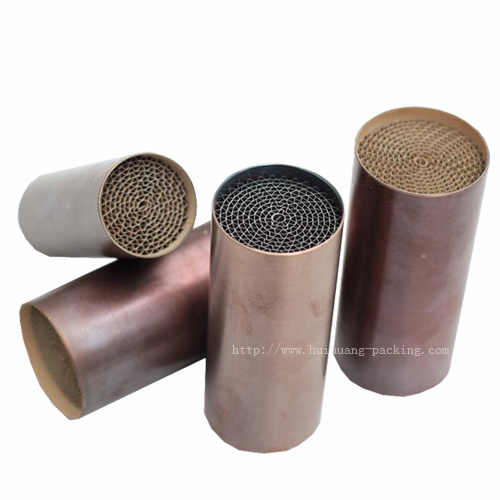

Metallic Honeycomb Catalyst is suitable for automobile exhaust purification catalytic converters , industrial waste gas purification and other fields. It can meet the increasing requirements of environmental protection .We also supply Catalytic Converter, Catalytic muffler, Motorcycle catalytic converter, DPF,DOC Catalyst, SCR catalyst ,TWC catalyst,Ceramic honeycomb monolith , Metal honeycomb carrier, ect. Our management system has been certified the ISO9001 and TS16949 by SGS company.
We offer the most diverse metallic substrate configurations in the world.
All shapes can be made with or without mantels. Sizing for rounds, ovals and rectangles up to 48" - 1200mm OD Custom cell configurations available
Substrate
Configurations
Shapes can be made with or without mantels/tube Custom shapes that may not be shown here are also available upon request Custom foil geometries available Extensive product offering with variable cell sizes and flow depth options
Substrate
Construction
Brazed, Oxidized & Mechanically Retained Single brazed rounds as large as 48"OD (1200mm) Rectangles up to 48" (1200mm)
Standard Metallic Substrate Nomenclature Metal Substrates without mantels Metal Substrates with mantels Matrix OD x Matrix length x CPSIMatrix OD(Mantel OD)x Matrix length(Mantel Length) Example: 6.5 inch x 3.5 inch x 300CPSI Example:6.38 inch (6.5 inch ) x 3.5 inch (4.0 inch) x 300CPSI
Cell densities - CPSI
Stock foil widths
Rounds in Mantels
(air flow depth)
Available tube sizes smaller 6″ OD
25
260
Inches
mm
Inches
mm
50
300
1
25
1
25
70
350
1.7
43
1.25
32
80
400
2
51
1.5
38
100
500
2.25
57
1.75
44
150
600
2.5
64
2
51
200
900
2.75
70
2.25
57
230
1000
3
76
2.5
64
Custom sizes also available upon request
3.25
83
2.75
70
3.5
89
3
76
4
102
3.25
83
4.72
120
3.5
89
5
127
4
102
5.91
150
5
127
12
305
6
152
Any OD larger than 6″
is available
Advantage
1.Low initiation temperature 2. Low pressure drop 3.High mechanical strength 4. Excellent thermal and coking resistance 5. Reliable braze welding intensity 6. Durable heat-resisting impact performance 7. Perfect catalyst coating binding force 8. Good anti-shock 9.can be specialized designed for the customers various vehicle type
Application
Use for exhaust system of general engine and off-road engine's catalyst carrier/support. Apply to Auto/Motorcycle, Infrared Gas Stove, garden machinery (Gasoline Chain Saw, Brush Cutter, Hedge Trimmer, Earth-Auge), etc.
Specification
Diameter: 35-266mm Length: 40-130mm Round/ Racetrack/Oval or can be customized to your requirement Cylinder shape, "T" series(one hole)/ "S" series (Two holes)
Pore density
100-400CPSI
Conversion rate
If have coating ,CO≥96%, HC≥95%, NO≥90%.
Coating losing rate
If have coating, ≤3 %
Emission Standard
Meet the Standards Euro II ~ Euro V emission standard, EPA, CARB standard
Service life
Above 120,000 KM
Specifications
Mantle
Matrix
Brazing
Ferritel (SUS444, SUS441, SUS430)
Fe-Cr-Al with RE, Zr/Ti additions high temperature oxidation resistant special alloy
Nickel base alloy
Domestic FeCrAl(2073/216)
or Austenitic heat resistant stainless steel(SUS304)
Import FeCrAl(1.4725/1.4767)
Dimension and Cell Densitities
Dimensions(mm)
Cell densities(CPSI)
Foil thickness(mm)
round shape with diameter more than 28mm, length up to 300mm
50,100,200,250,300,400,000,000
0.03,0.04, 0.05,0.06,0.08,0.10
Oval shape
Others (Rectangle etc.)
