| Prod Model: |
ZSFD-WQ2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Rotating Speed: |
3000r/Min |
| Rated Current: |
250mA |
| DC Voltage Output: |
4.5-6V DC |
| Widely Used: |
Hand Crank Generated Flashlight, Lantern |
| Output: |
1.2-1.6W |
| Weight: |
35.5g |
| Size: |
49.5*33*21.5mm |
| AC Voltage Output: |
4V |
| Mechanical Noise: |
<45db |
Product Description
Specifications

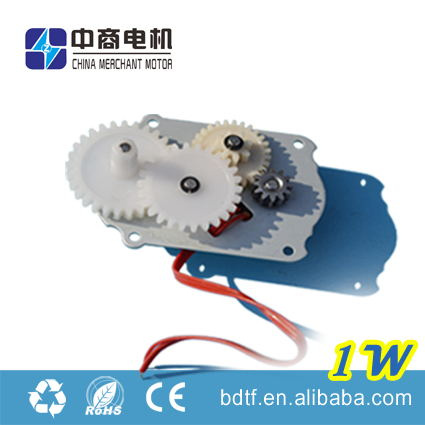

(1)micro generator 1w for hand crank torch
(2)Output: 4.5-6V; 220mA
(3)Dimension(mm): 55X33X21
(4)Use: Flashlight, Lantern
micro generator 1w for hand crank torch Widely used for camping light ,hand crank radio,
interphone ,car hammer,Disinfection pen ,lamp radio and many other portable energy saving products
Modo | Phase | Speed | AC Voltage Output | DC Voltage Output | Current
Output | Line to Line Resistance | Mechanical Noise | Ratio of Speed | Output | Weight | Dimension (mm) |
| r/min | v | v | Ma | Ω | dB |
| W | g | Length | width | height |
| ZSFD-WQ2 | 3 | 3000 | ≥4V | 4.5-6 | ≥250 | 5±0.5 | <45 | 1:27.5 | 1.2-1.6 | 35.5 | 49.5 | 33 | 21.5 |
