| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Wind Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Micro-Computer Control Automatic Diesel Generator |

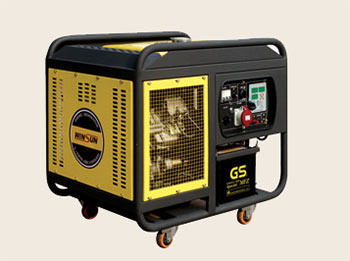

Product Description
POWER RANGE: 5KW-12KW
Rated frequency Hz: 50 60
Rated voltage V: 400/230 416/240
Phase No.: Three
Power factor (cosφ ): 0.8(lag)
Insulation: F
Pole No.: 2
Exciting way: Brush, exciting-self voltage-constant (with AVR)
Panel type: Intelligent
Output socket: Three-phase socket\single-phase socket
DC12V output: 12V, 8.3A
Dimensions: L× W× H mm: 870× 630× 700
Net weight Kg: 195
Noise (7m)dB(A): 82
Structure type: Half-closed
Engine model: R2V870
Type: V-twin, two-cylinder, four-stroke, DI
Cylinder No. Single bore × Stroke mm: 2-88× 72
Total displacement ml: 870
Rated power kW/ rated speed r/min: 13/3000 14/3600
Compressed ratio: 20: 1
Cooling way: Air-cooled
Lubricating way: Pressure & splashing
Starting way: Electric
Fuel used: 0#(summer)-10#(winter)-35#(cold winter) light diesel
Oil used: SAE10W30(CD grade above)
Lubricating oil capacity L: 1.7
Starting motor capacity V-kW: 12V 1.4kW
Dynamo capacity V-A: 12V 8.3A
Battery capacity V-Ah: 12V 45AH
Fuel consumption g/kW. H: ≤ 298 ≤ 320
Fuel tank capacity of the generator L: 25
Continuous operation time of the generator H: 7 6.5
We manfacture the diesel engine generator. The engine we used cummins. We can provided ccs BV, Gl ABS certificate.
At the same time we can provide the diesel engine parts which made in China at low price.
