| Prod Model: |
UNIV-4DS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery: |
4ah |
| System: |
Off-Grid system |
Product Description
？ ？

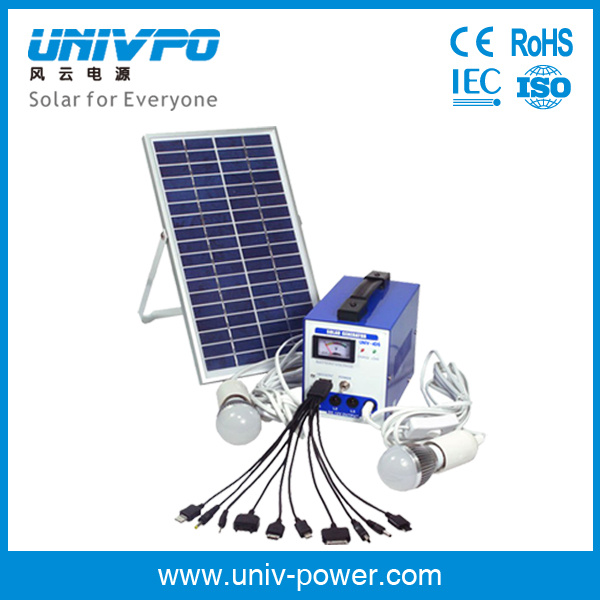

Mini Solar Lighting System Power Kit | Solar Home Lighting ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？Kit(UNIV-4DS)
A solar power kits uses a photovoltaic (solar-electric) module to provide power for lights and small appliances. The power is available even at night and on cloudy days, makes your home or outside independent from the utility company and provide your own power.
Features:
1. Designed for small family
2. Output: 12VDC(4outlets)
3. With battery voltage display
4. LED displays charge and load
5. With USB 5VDC output
6. Battery low voltage protection
？ ？ Over charge protection
？ ？ Over discharge protection
？ ？ Overload protection
7. Battery need to be Charged 6 hours full, and can load 2 PCS of 3W bulbs for 6 hours
4AH DC solar power kits components:
1. Solar module: 12V/6W. With 8m cable and 2.1mm DC port, poly crystalline. (one set)
2. LED lights, 12V/3W, white color. With 4m cable and 2.1mm DC port. (two sets)
3. Battery box with controller built-in. (one set)
Model: UNIV-4DS
Rated charging current: 1A
Rated discharging current: 2A
Rated working voltage: 12V
Solar panel voltage: <25V
Float charging voltage: 14V
Low voltage disconnecting point: 10.5V
Low voltage reconnecting point: 11.5V
No load loss: <=8mA
USB port current: <=500 mA
Working temperature: -10degree~50degree
Storage temperature: -15degree~40degree
Humidity requirement: <90%, no condensation
Dimension: 161X97X147 mm
Suzhou Universal-Power is a high-tech enterprise, which was established on May 2003, a professional and vigorous new energy company focusing on inverters, solar charge controllers and solar power systems. Until now, Universal-Power has produced more than 300000 sets of inverters and our products have reached over 100 countries worldwide, famous as a world leading professional manufacturer of cost-effective inverters with high quality and efficiency.
Universal-Power offers a full line of on grid and off grid inverters. Products from Universal-Power are with completely independent intellectual property rights and inverter core technology, the products including 60 Watts to 10K Watts off grid single phase high frequency inverter; 10K Watts to 17K Watts off grid three phase high frequency inverter; 1K Watt to 5K Watts grid tie single phase solar inverter; 10K Watts to 17K Watts grid tie three phase high frequency solar inverter. At the same time, Universal-Power's solar charge controller and off grid solar PV systems are designed for Solar system, Wind power system, and all inverters are widely used for automotive equipment, outdoor working, telecom and mechanical field etc.
Universal-Power strictly carries out ISO9001 standard and audit successfully, so we got certificates issued by international authorities such as UL, ETL, CE, RoHS etc. Relying on-class products quality and improved after-sale service, our company has won the popularity of consumers. Universal-Power has a R&D team with more than 30 engineers, 40% of the staff, who has been deeply engaged in the photovoltaic industry for 10 years.
Universal-Power owns 13 the national patents; especially, the Intelligent High Frequency Three Phase Inverter and Isolated Grid tie inverters have gained certificate of Hi-Tech product. Universal-Power has been set to Engineering Research Centre of isolated grid tie inverter by the Government of Suzhou. Our R&D takes the mission to increase the inverter availability and efficiency, putting continuous innovation to make Universal-Power inverter easier for installation and operation, and more cost-effective for the greener world.
Building an elite service team is Universal-Power 's another responsibility. In Universal-Power, service is not only the basic principle, but also blends into the hearts of the staff, and reflects in the daily work of everyone.
At Universal-Power, we see the power in clean energy. Our ENERGETIC goal is to bring simple, accessible solar solutions to the marketplace, improving the efficiency and reliability of solar power systems through our innovative products. Universal-Power brings you more powerful solutions for a greener world.
