| Prod Model: |
CP320BW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Chain Bag: |
2-99, 999 Bags Each Chain |
| Warranty: |
One Year Full Warranty |
| Function: |
Forming, Fillling and Sealing |
| CE No.: |
Ec.1282.0d131115.GCP3095 |
| SGS No.: |
Qip-Asi1311019 |
| Qms: |
ISO9001:2008 |
| Automatic Grade: |
Automatic |
| Application: |
Oil |
| Driven Type: |
Pneumatic |
| Material Type: |
Grain |
| Packaging Material: |
Film |
| Packaging Type: |
Plastic Bag |
Product Description

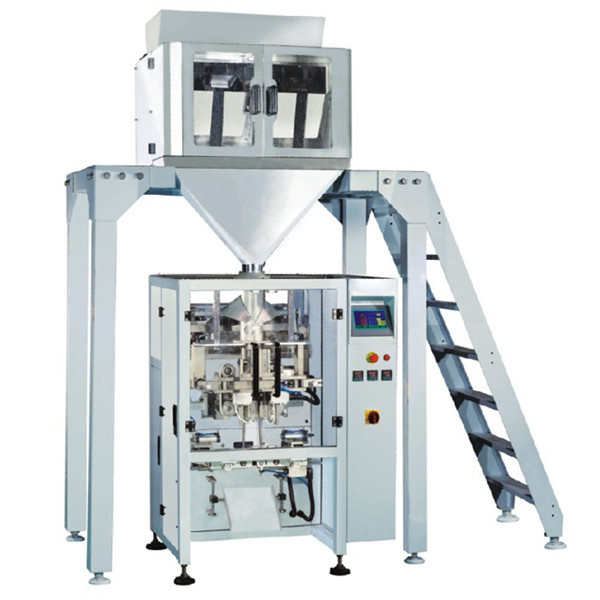

CER 4 Heads Liner Weigher VFFS Packaging Line CP320BW
About the contract,we need to confirm the following details.Warmly Tips:
a). What do you want to pack? Pls give me the picture.
b). Bag size ( length and width).
c). Bag weight and shape.
d). Film material.
Features:
1. Mitsubishi PLC+ WEINVIEW HMI/Siemens PLC+HMI, Double/Three Servo motor unit is available;
2. Servo motor unit& Double belt unit film transport;
3. Auto program set-up, Photo sensor tracking mark, quick change former assembly;
4. Perfect weighing accuracy performance by multi-head weigher.
Applications:
Suitable to packaging the high accuracy and easy fragile material, such as: Puffy food, crispy rice, Potato Chips, Snacks, candy, pistachio, sugar, apple slices, dumpling, chocolate, pet food, small wares etc
The above whole system does consist of the following:
1. Single bucket elevator/Z bucket conveyor with vibrating feeder;
2.2/4 heads Liner weigher;
3. Working platform;
4. VFFS Packaging machine;
5. Output conveyor
6. Optional: Metal detector, Check weigher, Rotary collecting table, Nitrogen Generator, Air compressor.
Specifications of the main packaging machine CP320:
| Model | CP320B |
| Capacity | Max 70bags/min |
| Measuring range | Max 500ml |
| Bag model | chain pilow bag |
| Bag size | L 50-230mm
W50-150mm |
| Film Width | Max 320mm |
| Control+HMI | PLC + Chinese/English interface |
| Air consumption | 0.8Mps, 0.25m3/min |
| Power | 1Phase, 50Hz, AC 220V, /2KW |
| Optional functions | Punching; Vacuum pulling film. |
| Dimension(LxWxH) | 1200x905x1300 |
| Weight | 300kg |
