| Prod Model: |
BH7000 |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Name: |
Multi-Purpose Air Cooled Generator (Bh7000) |
| Generator Set: |
Yes |
| Engine: |
Honda/Kohler/YAMAHA/Vangard/Cummins/China Engine |
| Fuel: |
Gasoline/Diesel |
| Output Power: |
0-30 Kw |
| Frequency: |
50/60 Hz |
| Cooling System: |
Forced Air Cooling |
| Current: |
AC/DC |
| Certificate: |
CE, ISO 9001:2008, Saso, Tlc |
| Lead Time: |
30 Days |
| Output Type: |
AC Single Phase |
| Power: |
5kw |
Product Description
PRODUCT DETAILS

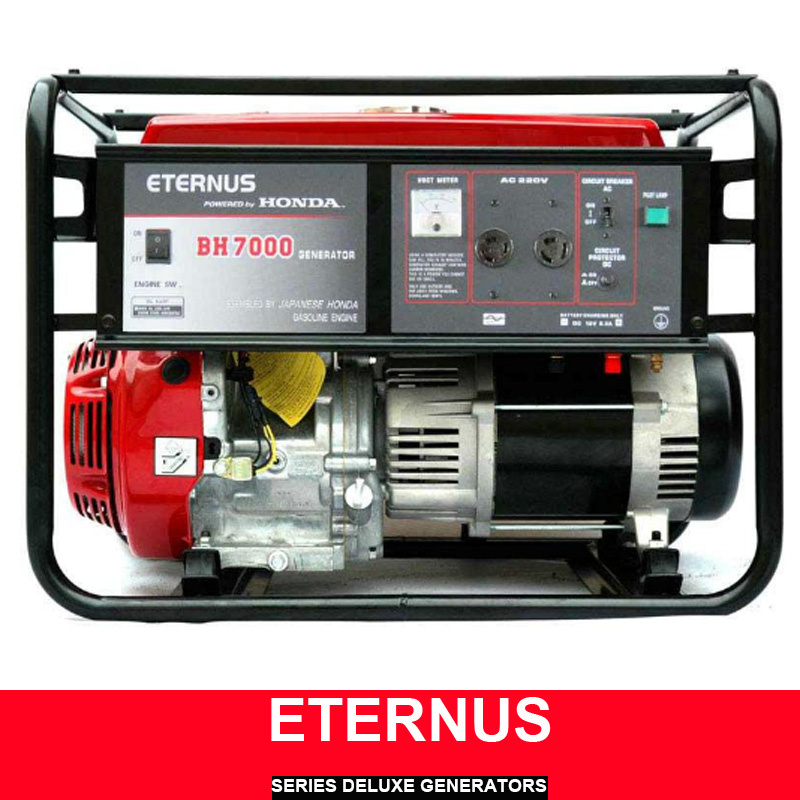

Multi-purpose Air Cooled Generator (BH7000)
1. Engine: Honda GX390
2. Engine type: Air-cooled, 4-stroke, OHV, Single cylinder
3. Starting system: Electric or Recoil Start
4. Displacement: 389.2CC
5. Frequency: 50Hz / 60Hz
6. Rated Voltage: 220V, 230V, 240V/120V, 120V both available
7. Rated power: 6.0kVA
8. Max power: 6.5kVA
9. Fuel tank capacity: 25L
10. Phase: Single
11. 100% copper coil
12. AVR
13. With battery, handles and wheels
| Gasoline generator | BH2900DX | BH5000DX | BH7000DX | BH7000DXE | BH8000DX | BH8000DXE | BH11000 | BH13000 | BH15000 |
| Engine |
| Model | GX160 | GX270 | GX390 | GX630 | GX690 | GX690 |
| Type | 4-Stroke OHV 1 cylinder | 4-Stroke OHV 2 cylinders |
| Displacement | 163 cm³ | 270.1
c m³ | 389.2 cm³ | 614 cm³ | 688cm³ | 688 cm³ |
| Bore x Stroke | 68x45mm | 77x58mm | 88 x 64 mm | 77x66 mm | 77x72 mm | 78x72 mm |
| Cooling system | Air cooling |
| Starting system | Recoil | Recoil+ Electric | Recoil | Recoil+ Electric | Electric |
| Fuel tank capacity | 25 L | 25 L |
| Generator |
| Rated voltage | 220V/(110/120/230/240V) | 220V | 220V (120V/240V) | 230V(120V/240V) |
| Rated frequency | 50Hz / 60Hz | 50Hz / 60Hz |
| Rated current | 8.7A(9.1A) | 13.0A(13.6A) | 21.7A(22.73A) | 26A | 38.6A
(79.2A/
39.6A) | 47.7A
(95.8A/
48.9A) | 47.8A
(100A/
50A) |
| Rated output | 2.0kVA | 3.0kVA | 5.0kVA | 6.0kVA | 8.5kVA (9.5kVA) | 10.5kVA (11.5kVA) | 11.0kVA (12.0kVA) |
| Max. output | 2.2kVA | 3.3kVA | 5.5kVA | 6.2kVA | 9.5kVA (10.5kVA) | 11.5kVA (12.5kVA) | 12.0kVA (13.2kVA) |
| Rated power factor | CosΦ = 1 |
| Phase | Single |
| Other |
| Length x width x height(mm) | 615x430x 430 | 680x510x 495 | 690x510.520 | 870x510.520 | 690x510x520 | 870x510x520 | 935 x 617x 622
|
| Net weight(kg) | 41.5 | 70 | 75.5 | 81 | 77 | 82.5 | 188 | 195 | 195 |
