| Prod Model: |
HLD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fuel: |
CNG Engine |
Product Description

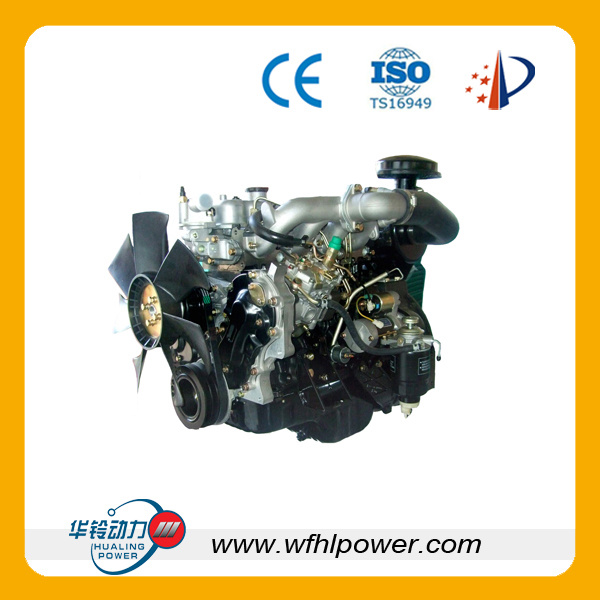

This kind of engine can be used for the Gas Generators. Cars, trucks and so on.
|
HL494 ENGINE SPECIFITIONS (ISUZU Base) |
|
Model |
HL493CNG-K |
HL493CNG-G |
HL493CNG-Q |
HL493CNG-ZQ |
|
Used in |
General type |
Project engine |
Vehicle type |
Pressurized type |
|
Power |
20-200KW |
|
Style |
Four strokes/four cylinders/water cooling/multi-point controlled sequential injection/dry-type thin wall chromium plated cylinder jacket |
|
Number of cylinders cylinder Diameter-stroke |
4-93-103 |
|
Air inflowing |
Naturally aspirated |
|
Output(L) |
2.771 |
|
Compression ratio |
18.2: 1 |
|
Rated power(kW)/speed(r/min) |
28/2000; 21/1500; 13/1100 |
39/2500 |
57/3600 |
68/3600 |
|
Maximum torque (N. m) /speed(r/min) |
|
165/1800 |
178/(1800-2000) |
210/2000 |
|
Idle speed(r/min) |
800± 50 |
|
Ignition model |
ECU controlling |
|
Cylinder ignition sequence |
1-3-4-2 |
|
Minimum fuel consumption (g/kW. h) |
210 |
|
Fuel |
12T, designated by Compressed Natural Gas for Vehicles, GB18074 |
|
Lubricating oil |
Engine oil specially used for gas engine(SAEl15W/40) |
|
Engine oil consumption (g/kW. h) |
≤ 1.36 |
|
Noises |
Technical ≤ 90dB(A) |
|
Rotating direction of crank shaft |
Anticlockwise (from flywheel side) |
|
Dimension: length* width *height |
734*632*682 |
717*632*682 |
734*632*682 |
< 240 |
|
Allowable maximum temperature of working medium |
Engine oil 120° ; cooling water 95° C; exhaust air 680° C |
|
Net weight of engine(kg) |
< 224 |
< 252 |
< 224 |
< 240 |
|
Allowable maximum temperature of working medium |
Engine oil 120° ; cooling water 95° C; exhaust air 680° C |
|
Engine oil pressure(kPa) |
150 Minimum(idle speed)200-539(normal rotating speed) |
|
Capacity of lubricating oil (L) |
7 |
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
