| Prod Model: |

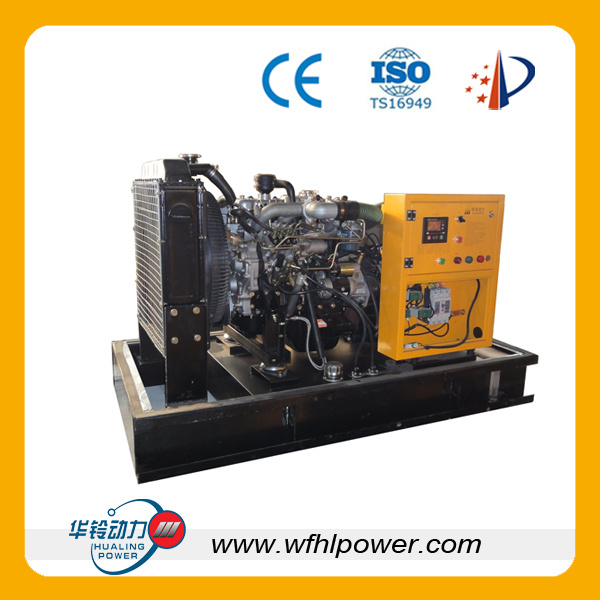

10-200KW Natural Gas Generator |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
AC Three Phase |
Product Description
Introduction Controller Panel
About Redesigning DEEP SEA controller or demostic product
The generator based on natural gas energy Digital control;
Deagnostic function
It is an electric equipment that is transmition energy Fault indication; MOBUS protocol;
Panallel By thermo-motive. There are coolant; Lubricating; Data be output by wire;
Communication Fuel suplied; Controller system. It can supply electric compatible;
Long-distance controlled Power out And can be Low/High pressure gas fuel Start by hand or automatic Characteristic of Natural Gas Engine ECU Natural Gas Control System Electric controll ignation for engine combustion EFI management system for engine
Electric controll turbo-charger Lean burn system Sequential multi-point ignition system
Air to air system Electric controller for speed Lean burn and multi-spark system
Electric speed controller A veriaty of fuel tracking compensated system
ECU controller panel Multi-spark and High energy
ECU actuator Hot wire for spark plug. It has shield The management system for natural gas has Alternator and Chassis detecting system Synchronization alternator;
Adjustment by automatic The spark plug is special that is for natural gas Brushless/permanent; Parallel by automatic
Monocoque-type chassis can be all part of generator
The engine be connected by flange with alternator
Rubber seal for insulationContinuous Operation type generator
|
Data of Natural Gas Generator |
|
|
|
|
|
HL100GF Natural Gas Generator |
|
Data of Technology |
|
Emission standard |
mg/m³ |
EII |
|
Intake Air Temperature |
Deg C |
<45 |
|
Before Air to Air |
Deg C |
82-87 |
|
After Air to Air |
Deg C |
35-42 |
|
Generator Data |
|
|
|
Rated power factor |
0.8 |
Operation Continous/Kw |
100 |
|
Full power |
Kw |
276 |
|
Electric Efficiency |
% |
36.2 |
|
Thermal Efficiency |
% |
87.9 |
|
Engine Data |
|
|
|
Fire order |
|
1-5-3-6-2-4 |
|
Over speed |
rpm |
2160 |
|
Over RPM |
rpm |
2160 |
|
Oil |
L |
16.4 |
|
Water |
L |
21.9 |
|
Back pressure |
kpa |
10.2 |
|
Comsumption |
|
|
|
Natural gas(based on 36Mj/cube) |
m3/kw•h |
<0.3 |
|
Oil |
g/kWh |
<1.5 |
|
Thermal Radiation |
|
|
|
water radiator and oil radiator |
Kw |
18 |
|
Exhaust pipe(based on 120 degree) |
Kw |
5 |
|
Engine |
Kw |
8 |
|
Alternator |
Kw |
6 |
|
Coolant system |
|
|
|
Water temperature |
Deg C |
95 |
|
Oil temperature |
Deg C |
<120 |
|
Exhaust pipe(based on 120 degree) |
Kw |
100 |
|
Exhaust pipe System |
|
|
|
Before turbo charger |
Deg C |
660±25 |
|
Ratio of exhaust flow |
m³/h |
900 |
|
Ratio of Fan |
m³/s |
5.8 |
|
Noice Level |
|
|
|
1 meter fay |
db(A) |
100 |
Weifang Hualing POWER CO. Ltd. It is located in the Power city, WEIFANG. With the integration of R&D, Design, Producing, Marketing and whole project construction, specializes in Energy, Electricity power, energy-saving, Environmental protection project.
The company has been identified OEM certificates by 8 World famous Engine group, ISO9001 quality management system certification, China energy-saving product certification. The company invested 2.6 billion RMB in the product line, and now is the first and top diesel engine and gas engine product line.
We produced a series multi-point injection electronic control engine and report to the National Development and reform commission, series of engines on the HL. CNG special report on current trends.
Since 2008, the product of HUALING Power Co., Ltd. Enter to the oil industry, develop and produce wellhead gas generating set, now has been widely used in the CBM oil brand and running in the subsidiaries.
