| Prod Model: |
SS-PPS400W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery: |
50ah 12V Lithium Battery |
| Load Power: |
400W |
| AC Output Voltage: |
110V~240V |
| DC Output Voltage: |
5V/18V |
| Work Time(H): |
Depends on Application |
| Working Temperature: |
-338 F to 1690 F |
| N.W.: |
9kg |
| Unit Size: |
385mm*280mm*150mm |
| Warrenty: |
12~18 Months |
| Application: |
Outdoor, Marine,Travel, Medical, Military |
| Specification: |
Normal |
Product Description

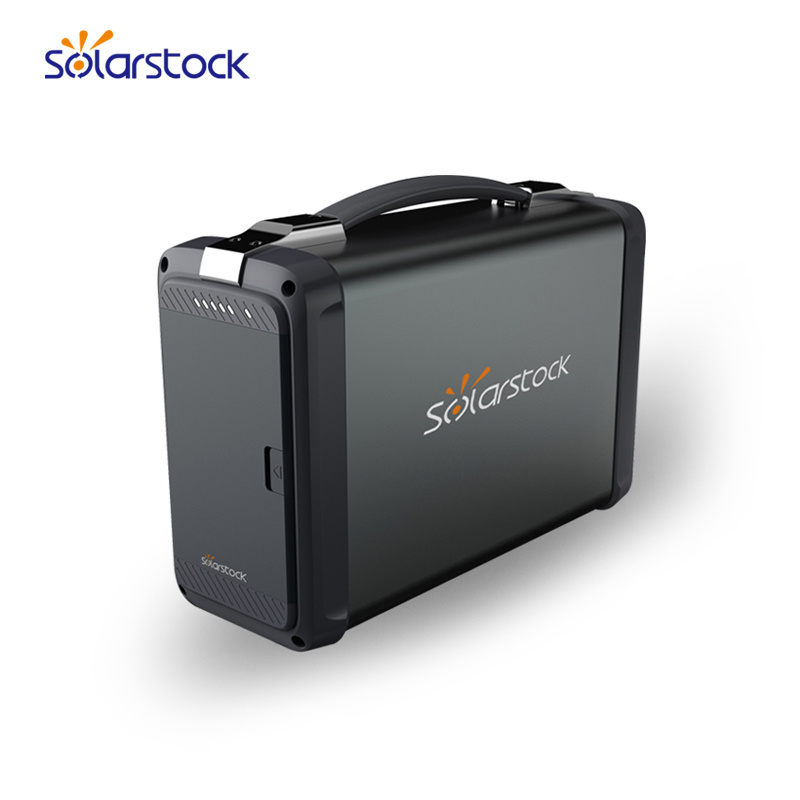

Outdoor Use Suitcase Style PV Portable Solar Electricity Generator
)
Introduction
This portable solar power multifunction system adopts digital intelligent control with flexible and powerful control
way, arbitrarily choice to use AC&DC output. It is ideal equipment for army, fire protection, scientific, earthquake,
industrial and mining, tourism, grazing field and other outdoor activities.
Description
Light weight, small volume. Appearance vogue, with delicate to manual work.
IP 67 waterproof, no worry for being damaged by rainy weather or water.
With intelligent display system, it can indicate the status of battery, charging, mistake, the connection of AC/DC output.
Integrated portable design, super function with AC/DC input and output.
Lithium battery, with long lifespan, can be replaced easily after its service period.
Adopt intelligent control, with 6 kinds of protection, over charging, over voltage, under voltage, over loading, over heating and short circuit protection.
Multifunction charging ways: solar panel, electricity AC or car charging.
It can load various voltage of appliances, with DC5V/12V or AC 220V. As TV, mini refrigerator, lamp, fan, laptop, mobile phone, digital camera and so on.
The unique function of stating the car.
Operating environment:
1. The product should be used in dry cleaning ventilated environment.
2. Avoid to use in direct sunlight, blazing sun, rain, moisture, dust, and mist environments.
3. Prohibiting use in flammable, explosive gas environment, and must beware of flames and sparks.
4. The environment temperature is from -10ºC to 45ºC.
5. Air relative humidity is not greater than 80%(25ºC±5ºC).
Portable Solar Power System Parameter:
Model No. | SS-PPS400W |
| Battery | Polymer lithium battery 12V 50AH |
| Car charging | Voltage:12V-20V Current:5A |
| Solar charging | Voltage: 18V Current: 10A |
| AC charging | Voltage: 13V Current: 6A |
| AC output | Max output power: 400W |
| Output voltage: AC110V~240V |
| Output frequency: 50Hz |
| Output waveform: Pure sine wave |
| DC12V output | Output voltage: DC12V |
| Max output current: 8A |
| USB DC5V output | Output voltage: DC5V |
| Max output current: 3A |
| Jump starter | 12Vbattery car engine start |
| Radiating | Air cooling |
| Protections | Over charge protection
Under voltage protection
Over voltage protection
Over load protection
Short circuit protection
Overheating protection |
| Size | 385mm*280mm*150mm |
| N.W. | 9KG |
