| Prod Model: |
HO2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fuel: |
O2 & H2 |
| Color: |
Blue |
| Net Weight(Kg): |
159 |
| Dimension(Mm): |
760*450*800 |
| Gas Source: |
Water & Electricity |
Product Description

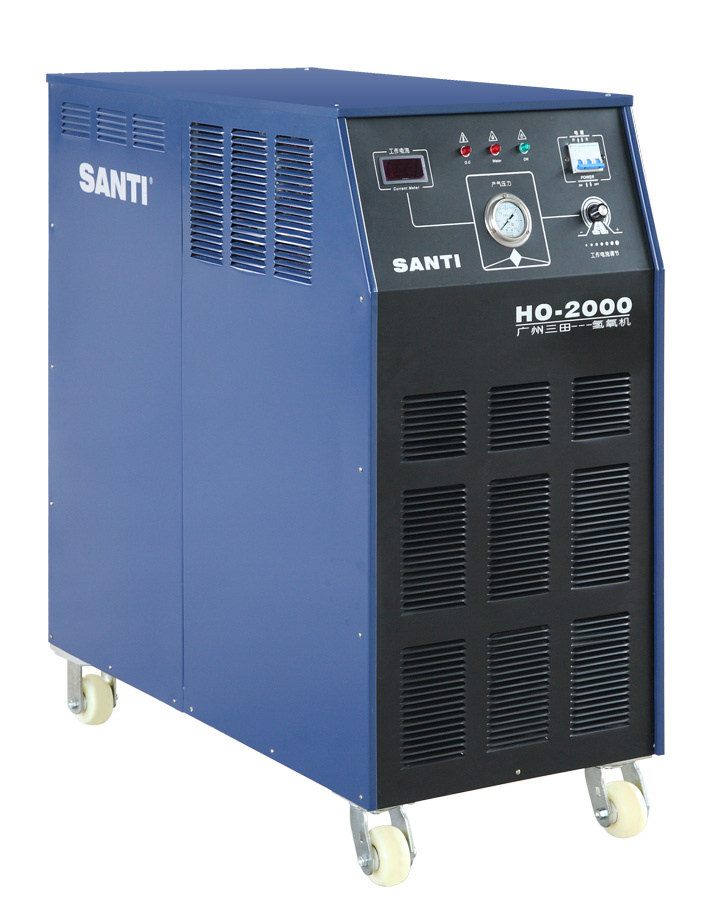

HHO gas Generator
We're a leading factory which can supply environmental and energy -saving hydrogen oxygen generators in China.
Our oxy-hydrogen machine consumes water and electricity, electrolyze water into H2 and O2 as the fuel. We can use H2 and O2 as source of flame replacing acetylene or natural gas or other fuel.
Our oxy-hydrogen machines can work 24 hours continuously every day and its designed life is 5 years.
To avoid the after-sale cost, we we use good parts so no problem happened during the operation process. And we also provide detailed instructions to our customers, thus they can use the machine easily.
Multi-purposes
This machine might turn water into flame which is like that produced by oxy-acetylene, oxy-propane and oxy-LPG and can do same work like cutting carbon iron, metal welding, processing headgears, jewelries, gold, platinum, silver, glassware.
Safe energy
Oxy-hydrogen is a very safe fuel, no poison, no harming smell to human body. Hydrogen has the smallest density among all gases, once leaking it will escape to the air quickly and not as dangerous as LPG, acetylene etc.
Easily procured energy sources
Oxy-hydrogen fuel is easily procured as we can find water and electricity easily. It can save much energy other than using acetylene, propane, LPG, etc., for example, each cubic oxy-hydrogen gas consumes 0.5 liter water and 3.5 KW electricity which is cheaper cost than using acetylene.
|
Parameter |
Model |
|
SANHO-2000 |
SANHO-4000 |
SANHO-6000 |
SANHO-8000 |
|
INPUT VOLTAGE(V) |
(3 Phase) AC380 ± 10% 50/60HZ |
|
RATED CAPACITY(KVA) |
7 |
17 |
24 |
31 |
|
RATED OUTPUT POWER(KW) |
6.4 |
13 |
21 |
25.6 |
|
RATED OUTPUT CURRENT(A) |
160 |
250 |
370 |
460 |
|
WORKING MIDIUM |
Distilled Water or Deionized Water |
|
AMBIENT TEMPERATURE() |
0~40 |
|
RELATIVE HUMIDITY(%) |
≤ 90 |
|
OPERATION GAS PRESSURE(MPa) |
≤ 0.18 |
|
RATED OUTPUT GAS(L/h) |
2000 |
4000 |
6000 |
8000 |
|
CONSUMPTION RATE OF WATER(L/h) |
≤ 1.1 |
≤ 2.2 |
≤ 3.3 |
≤ 4.4 |
|
MAX FLAME TEMPERATURE() |
3000 |
|
MAX CUTTING THICKNESS(mm) |
50 |
80-90 |
110-120 |
140-150 |
|
MAX WELDING THICKNESS(mm) |
3 |
5 |
5 |
5 |
|
OPERATION METHOD |
Continuous |
|
POWER SUPPLY SAFEGUARD GRADE |
IP21S |
|
WEIGHT(kg) |
159 |
247 |
320 |
390 |
|
DIMENSIONS(mm) |
760*450*800 |
880*550*1000 |
1150*630*1050 |
1150*700*1200 |
Guangzhou Santi Electro-mechanical Equipment Co., Ltd, as one of the main suppliers of inverter welding and cutting machines in China, We are specializing in Inverter Welding & Plasma Cutting Machines for 10 years. With high technology & development capacity, our product range covers inverter MMA, TIG, MIG/MAG, PULSE TIG, AC/DC TIG, PLASMA CUTTING digital controlled flames series. Quality is reliable and price is reasonable.
Our new machine Hydrogen Oxygen Generator consumes water and electricity and electrolyze water into H2 and O2 as the fuel. This kind of product not only save energy but also protect environment. It can be used for welding, cutting, glass processing and jewelry processing.
Generally speaking, Guangzhou Santi Electro-mechanical Equipment Co., Ltd has been endeavoring to make perfect products for customers. Welcome to cooperate with Santi.
