| Prod Model: |
TY-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Life: |
Long Life |
| Using: |
Can Work Continu at 24 Hour Work |
| Gas Source: |
Gas |
| Power: |
50-200kW |
| Certification: |
CE, ISO |
Product Description
OZONE GENERATOR
WATER TREATMENT
Products Name: TY
-3
Products Detail:

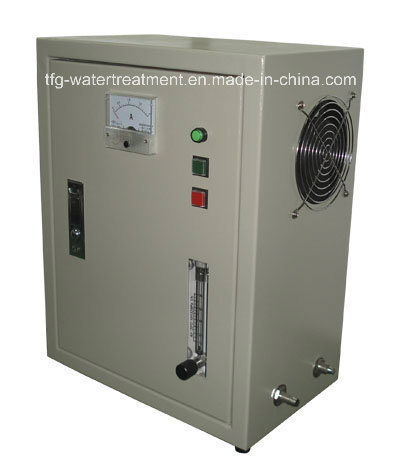

TY-3 ozone generator
*Generating capacity: 3g/h
*Gas source: Oxygen
*Power supply: 220V/50Hz
*Power: 150W
*Net weight: 10kg
*Size: 320*175*380
Production characteristic:
1 Take bottle oxygen or oxygen generator as gas source, with high ozone concentration. The concentration can reach
70mg/L (35000 ppm ) under rated state, if need specially, it can reach 100mg/L (50000 ppm ).
2 Plate-style ozone generating unit with air cooling, driven by high-frequency & high voltage power.
Production characteristic
Built-in oxygen generator.
Application field
L Disinfect and sterilize purified water, mineral water, beverage(material water), treat medium water and waste water.
L Disinfect and sterilize aseptic workshop with the outside centralizing method.
L Produce high concentrated ozone water, rinseand spray raw material and accessorial material, clean vegetables and fruits, to reach the purpose of disinfecting and sterilizing the surface.
L Produce high concentrated ozone water, disinfect and sterilize pipeline and utensils.
L Decolor the high-level oxidation technology of chemical and industrial system.
|
model |
ozone capacity |
gas source |
power supply |
power |
net weight |
size(L*W*H) |
structure |
|
CFY-3 |
3g |
oxygen |
220V50Hz/60Hz |
180W |
14kg |
365*190*420 |
With airpump inside |
|
CFY-6 |
6g |
oxygen |
220V50Hz/60Hz |
650W |
55kg |
500*420*870 |
With oxygen generator in side |
|
CFY-12 |
12g |
oxygen |
220V50Hz/60Hz |
700W |
58kg |
500*420*900 |
|
CFY-24 |
24g |
oxygen |
220V50Hz/60Hz |
1000W |
75kg |
500*420*1100 |
|
CFY-36 |
36g |
oxygen |
220V50Hz/60Hz |
1200W |
95kg |
500*900*820 |
|
CFY-50 |
50g |
oxygen |
220V50Hz/60Hz |
2000W |
131kg |
500*900*1120 |
