| Prod Model: |
UHT(T) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Uht(T) |
| Category: |
Water Treatment System |
| Motive Force: |
Electric Power |
| Performance: |
Efficient Filtration |
| Material: |
Stainless Steel 304# |
| Condition: |
New |
| Warranty: |
One Year |
| Export Markets: |
Global |
Product Description
Product Description

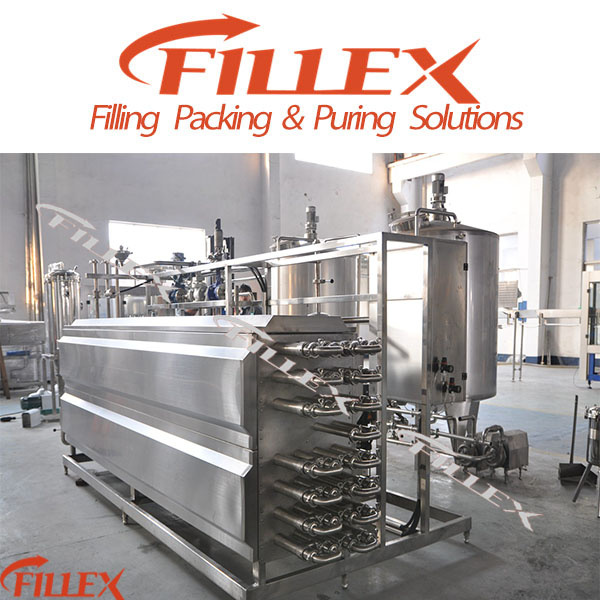

The machine has characteristics such as compact structure, effective sterilization, convenient operation, wide adaptation, low cost and so on. According to users' needs, it can be supplied separately UHT sterilization system, including tube-type sterilizing machine, preheating tank, and insulation tank, the homogenizer interfaces can prevent formatting milk stone, with the pasteurization function. It can also available the entire unit, including UHT sterilizing system and flash degassing system.
Usage
It's widely used in milk, juice, tea drinks, milk drinks, ketchup, condiments, beer, butter, ice cream, egg products, powder and other products.
Characteristics
1. The huge viscosity range. The use environment PH value is 1-14. It is suitable for sterile production of fresh milk, pasteurized milk, yogurt, colored milk, juice, tea drinks, wine, ice cream, soy milk, beverage, jam, butter and other products. The products produced by UHT sterilization system can maintain 3-6 months under normal temperature (do not add any preservatives), thus eliminating the cold chain.
2. The equipment is automatically or semi-automatically controlled by computer with LCD touch screen operation.
3. Instantaneous processing maintains the original flavor of the products.
4. PID temperature control system, sterilization temperature recorded continuously in real time.
5. The product has uniform heat treatment, heat recovery up to 90%.
6. The tube inside without any contact, no health dead corners, and the products will not adhere to the tube, and the bellows can form high turbulence in sterilization process, with a self-cleaning effect, so it is difficult to form tube fouling and pollution.
7. With a long continuous operating time and good CIP self-cleaning effect.
8. Less spare parts, low operating costs.
9. Easy to install, inspect and remove, convenient to maintain pipeline.
10. Reliable material, affordable a higher product pressure.
| Model | UHT-1(T) | UHT-2(T) | UHT-3(T) | UHT-4(T) | UHT-5(T) |
Production
capacity(T/H) | 1 | 2 | 3 | 4 | 5 |
Sterilizing
temperature(ºC) | 95-125(138ºC) |
| Size(mm) | 3500*
1600*1800 | 4500*
2000*1900 | 4500*
2500*2000 | 5000*
2000*2000 | 5000*
2000*2000 |
| Power | 8.75 | 12 | 18 | 21 | 25 |
FILLEX is a professional filling, packaging, water treatment solution manufacturer from China with ISO9001: 2000 & CE certification who dedicated to manufacture kinds of filling & packaging equipment & water treatment system for beverage & food field.
Built in 2006, Fillex has 4000 square meters modern standard workshop & 40 professional workers, integrate the R&D department, manufacturing department, technical services department and marketing department together, provide the reliable filling system & water treatment system worldwide.
Fillex Manufacture & Provide below filling & treatment system
--PET Bottle, Glass Bottle, Cans, Cups Filling & Packaging Line(Still water, Carbonated soft drink, Juice, Alcohol, Oil etc)
--1-2 & 3-5 Gallon Jar Bottle Water Plant
--Beverage Filling Line Auxiliary Equipment(Carbonator, UHT Sterilizer, Turned-up Bottle Sterilizer, Spray Cooler&Bottle Warmer, Homogenizer, CIP System etc)
--Bottle, Kind of Container Labeling & Post Packing Solutions
--Water Treatment System(RO Pure Water Purifier, UF Mineral Water Purifier, Brackish & Seawater Desalination Plant, Water Softener)
