Power:
2/3/5kw
Big Wheel:
Optional
Three Phase Voltage:
Optional
ATS:
Optional
Welding:
Various Forms
Oil Warning Light:
Optional
Stroke:
Four Stroke
Type:
Basic Diesel Generator
Cooling Method:
Air Cooled
Installation Method:
Portable
Output Type:
AC Sigle Phase&Three Phase DC12-18V
Product Description
DIESEL GENERATOR SET Portable diesel generator with 4 wheels, diesel generator professional export manufacturer. Diesel engine, diesel water pump, diesel generator and welder set, gasoline engine, gasoline generator set are also our best-selling products.
Introduction Our factory can produce portable diesel generator set. This kind of products can be used at home, office, fieldwork and many other work. We can supply this kind of products with power including 2KW, 3KW and 5KW Structural style: Open type, semi-open type, silent type. Single phase or three phase. Have CE(CONFORMITE EUROPEENNE) certificate. Have steady quality and competitive price.
Advantages: 1. Diesel generator set with CE 2. Skilled technicians and professional engineers 3. Every spart part supplier is chosen strictly based on excellent quality 4. Complete production procedures, strict test center, good package 5. Warranty: Running for one year 6. Standard operation / technical maintenance /manual/tool kits 7. Any questions. Pls do not hesitate to contact our salesperson

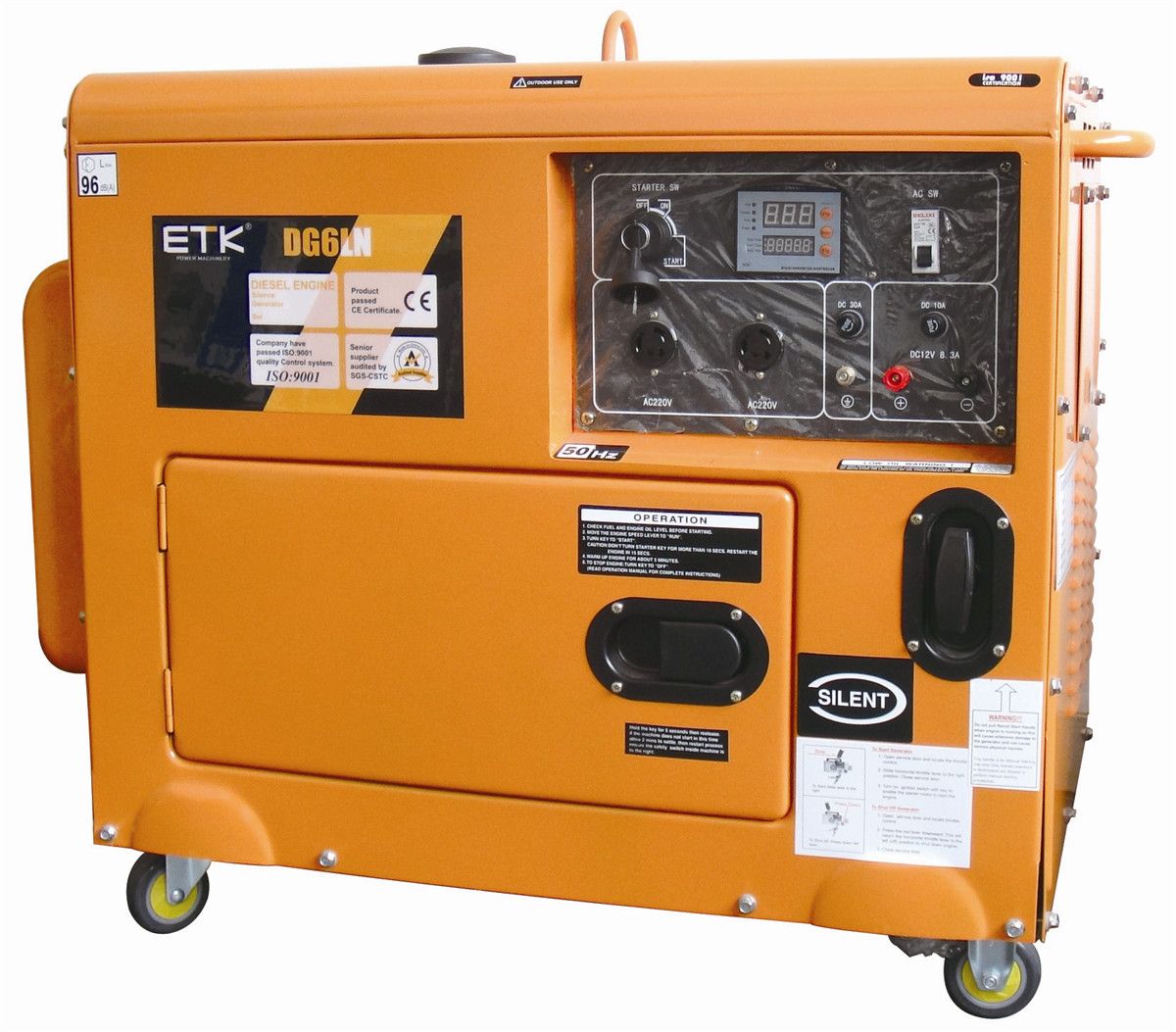

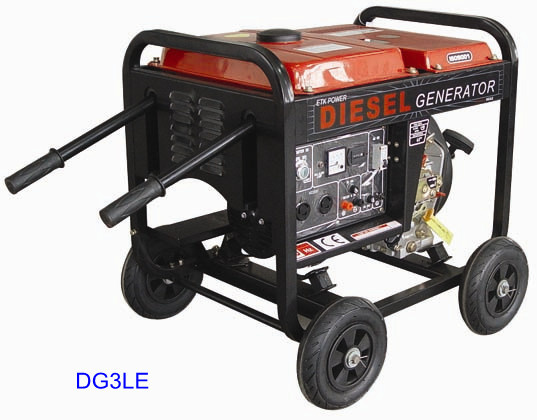

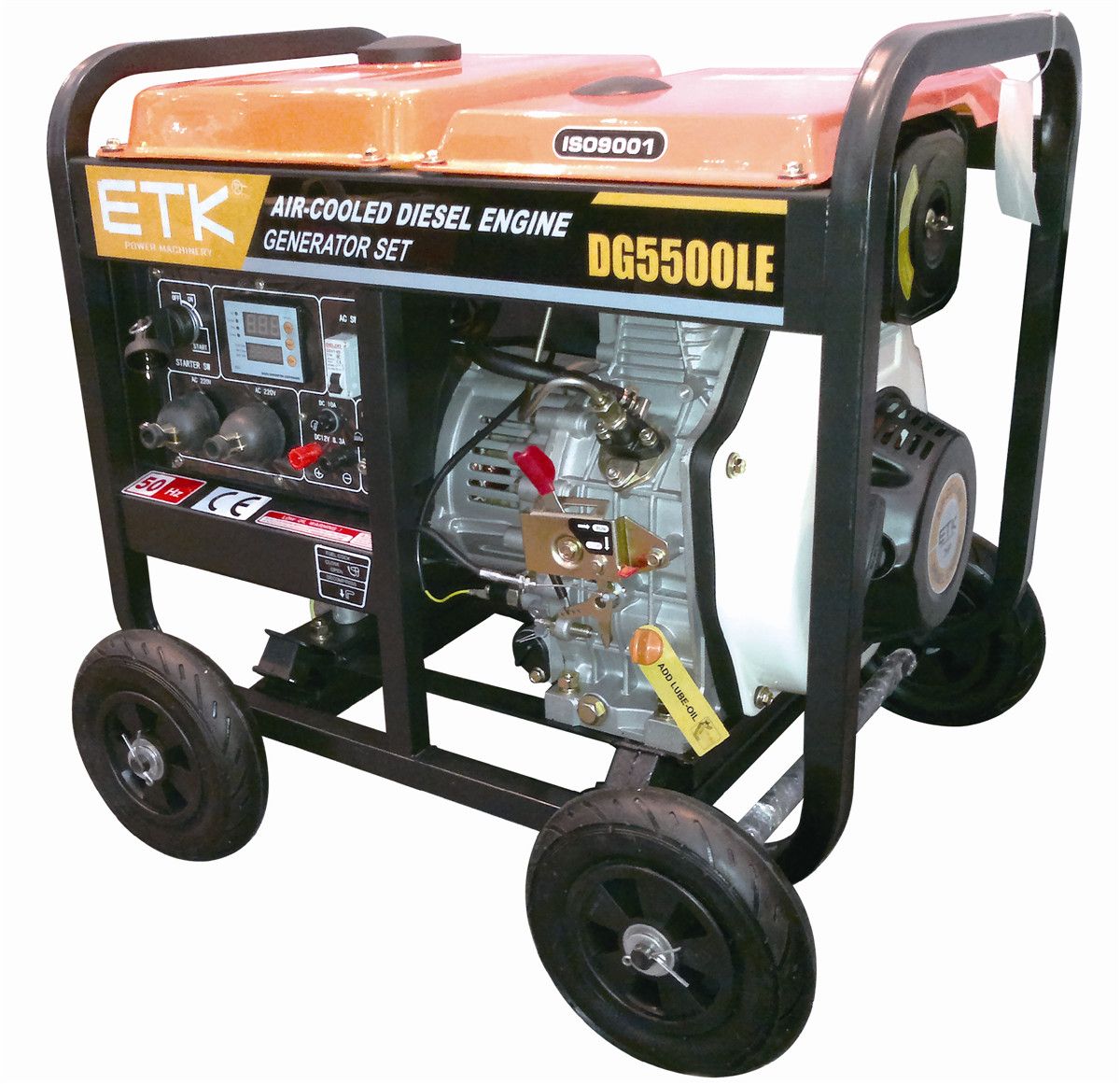

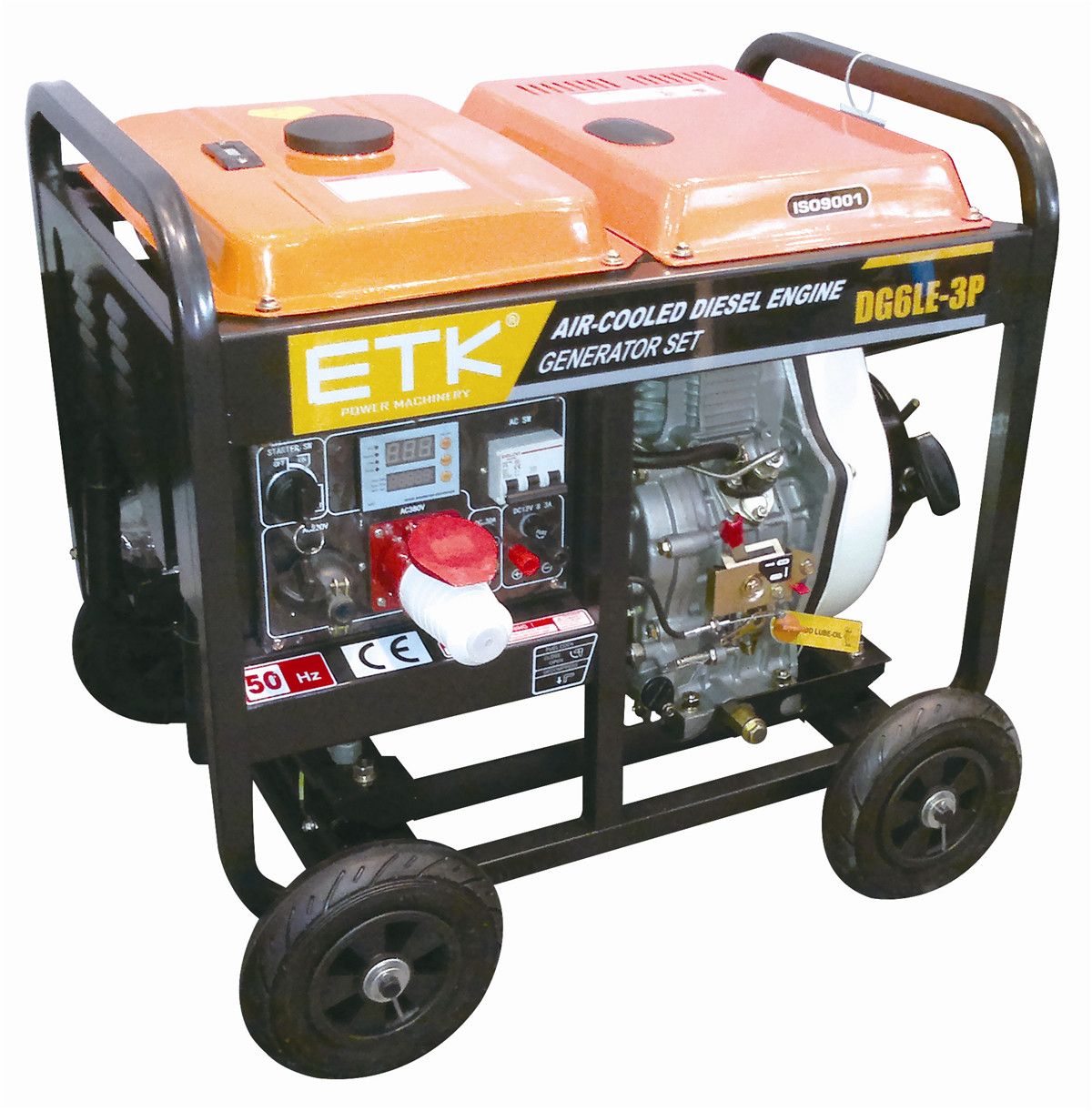

Diesel generator set pictures :
Model
open type diesel generator set
silent type diesel generator set
2KW
3KW
5KW
3KW
5KW
DG3LE
DG4LE
DG6LE
DG4LN
DG6LN
Frequency(Hz)
50 /60
50/60
50/60
50/60
50/60
Voltage(AC)(V)
220;230;120/240
220;230;120/240
220;230;120/240
220;230;120/240
220;230;120/240
Voltage(DC)(V)
12
12
12
12
12
Current(A)
8.30
8.30
8.30
8.30
8.30
Engine speed(rpm)
3000 /3600
3000 /3600
3000 /3600
3000 /3600
3000 /3600
Power facotr(cosφ)
1
1
1
1
1
Starting system
Recoil manual start/optional electric start
Rate power(Kw)
2.0/3.0
3.0/4.0
4.6/6.0
2.8/3.5
4.6/5.5
Net weight(kg)
75
96
119
139
168.5
Engine model
ETK170F(E)
ETK178F(E)
ETK186F(A)(E)
ETK178F(E)
ETK186F(A)(E)
Type
Single cylinder,vertical,direct injection,4-stroke,air cooled diesel engine
Cooling type
Force air-cooled
Crankshaft direction
Clockwise from flywheel end
Continuous Output(Kw)
2.5/2.98
3.4/4.4
5.7/6.6
3.4/4.4
5.7/6.6
Maximum Output(Kw)
2.8/3.36
4.0/4.9
6.3/7.34
4.0/4.9
6.3/7.34
Bore × Stroke(mm)
70*55
78*62
86*70/86*72
78*62
86*70/86*72
Displacement(cc)
211
296
406/418
296
406/418
Fuel Tank Capacity(L)
15
15
15
15
15
Packing dimensions(L×W×H)mm
705*520*580
745*520*600
785*550*635
950*550*770
965*565*725
Lube-oil Capacity(L)
0.75
1.1
1.65
1.1
1.65
20FT container (pcs)
132
99
99
72
72
