Output Type:
AC Three Phase

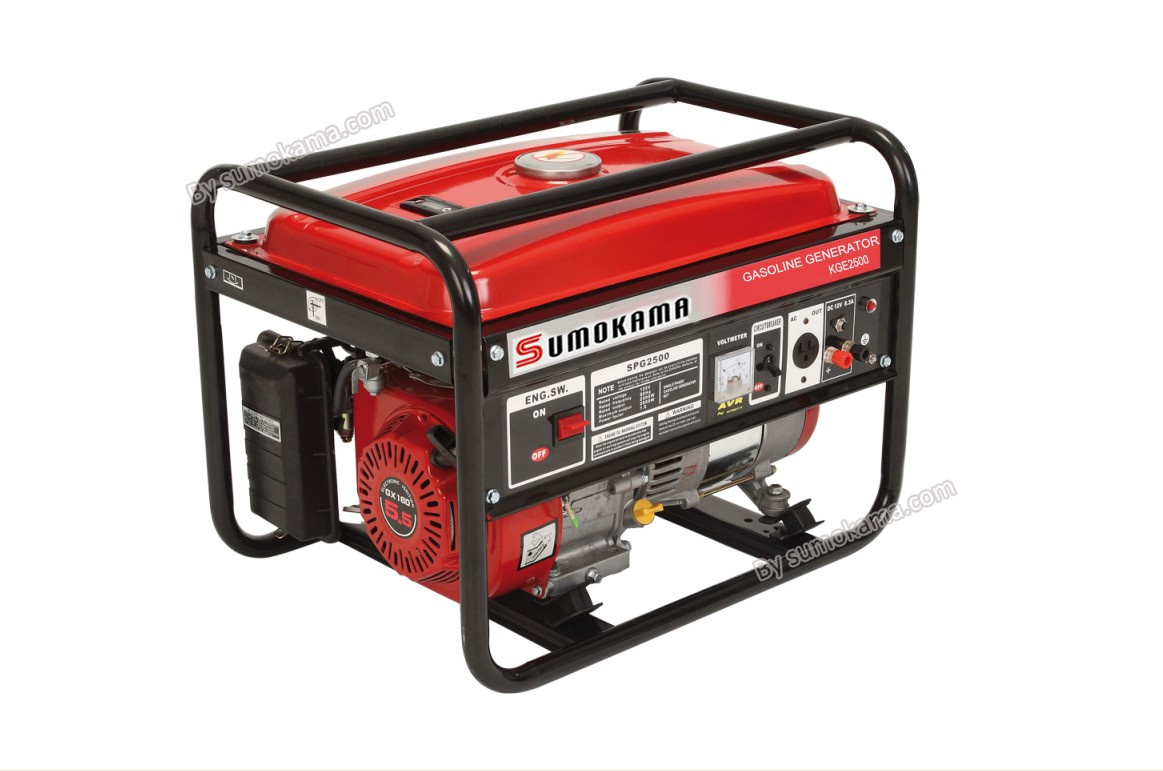

Product Description
Model
KGE2500
Rated frequency (Hz)
50
60
Rated voltage (V)
220; 230; 115/230
110; 120; 110/220; 120/240
Rated output power (kW)
2.0
2.2
Max output power (kW)
2.2
2.5
Rated rotation speed (rpm)
3000
3600
DC output:
12V 8.3A
Phase number
Single phase
Noise level dB (A)/7m (zero load-full load)
65-69
Fuel tank capacity
15L
Fuel consumption
1.13L/hr
Continuous operating hour
13hr
Engine Type
4-stroke single-cylinder air-cooled, OHV
Engine Model
KG160
Displacement
163ml
Max. Power output
5.5HP
Ignition system
Non-contact transistorized magneto
Starting system
Recoil or Electric start
Lube oil brand:
SAE10W30 (above CC grade)
Oil capacity
0.6L
Dimension(L*W*H mm)
590*425*435
N. W/G. W (Kg)
42kg/44kg
Carton dimension(L*W*H mm)
605*435*450
QTY 20FT/40FT
235
Model
KGE2500
Rated frequency (Hz)
50
60
Rated voltage (V)
220; 230; 115/230
110; 120; 110/220; 120/240
Rated output power (kW)
2.0
2.2
Max output power (kW)
2.2
2.5
Rated rotation speed (rpm)
3000
3600
DC output:
12V 8.3A
Phase number
Single phase
Noise level dB (A)/7m (zero load-full load)
65-69
Fuel tank capacity
15L
Fuel consumption
1.13L/hr
Continuous operating hour
13hr
Engine Type
4-stroke single-cylinder air-cooled, OHV
Engine Model
KG160
Displacement
163ml
Max. power output
5.5HP
Ignition system
Non-contact transistorized magneto
Starting system
Recoil or Electric start
Lube oil brand:
SAE10W30 (above CC grade)
Oil capacity
0.6L
Dimension(L*W*H mm)
590*425*435
N. W/G. W (Kg)
42kg/44kg
Carton dimension(L*W*H mm)
605*435*450
QTY 20FT/40FT
235
National Machinery Group Co., Ltd. It is a professional supplier of Air-Cooled Diesel Engine (Model: KM170F, KM178F, KM186F, KM186FA, KM188F-A, KM188F-B), Water-Cooled Diesel Engine (Model: ZS195, ZS1100, ZS1105, ZS1110, ZS1115, ZS1125, ZS1130), Portable Generator (KDE2500E, KDE3500E, KDE6500E, KDE3700T, KDE6700T, KDE6700TA), Industrial Generator Set (Powered by Cummins, Perkins, Deutz, Yanmar, Kubota, Lovol, Weichai, Ricardo, Shangchai, Wudong, Quanchai etc), Power Tiller(Model: KDT-105, KDT-135), Welding Generator, Water pump set (Model: KDP20, KDP30, KDP40, KDP80T) etc, with 10 yers of experience in research, development and selling, we can supply you products with good quality and reasonable price.
