| Prod Model: |
PSG Series |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Mid East |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Output Power: |
501 - 1000W |
| Power Source: |
Hybrid : Solar Power +Electric Power |
Product Description
Features:

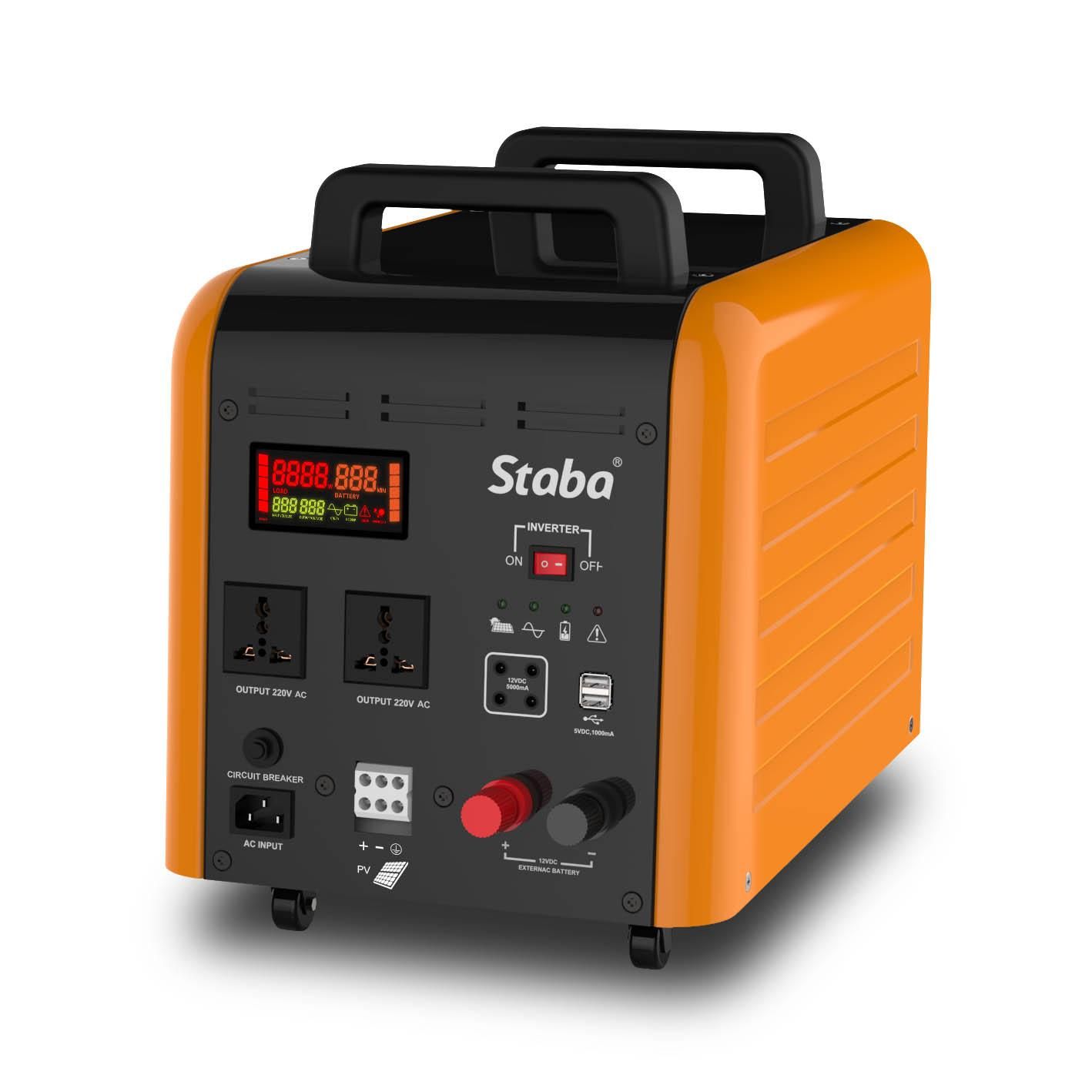

+ Hybrid portable solar generator, with built-in 100AH battery.
+ Built-in solar charger with MPPT technology.
+ Maximum 20A charging current at both solar charging mode and utility charging mode
+ Automatic switching between solar charger and mains charger, solar charger priority.
+ Complete protection functions.
+ 2 x USB port for charging mobile phones.
+ 4 x 12VDC output port, for DC loads like DC lighting bulbs, DC fans.
Model No. | PSG-400 | PSG-800 |
| Capacity | 400W | 800W |
| Built-in Battery | 12V/55AH, 1pc | 12V/100AH, 1pc |
| Recommended Min. Solar Panel | 70W | 150W |
| Solar Charger | Control Mode | MPPT |
| MPPT Range | 18-50VDC |
| Battery Voltage | 12VDC |
| Charging Scheme | 3 stage smart charging |
| Charging Current | 20A max |
| AC Input & Mains Charger | Rated Input Voltage | 230VAC |
| Input Voltage Range | 90-280VAC |
| Input Frequency Range | 45-65Hz |
| Charging Scheme | 3 stage smart charging |
| Charging Current | 20A max |
| Inverter | Rated Output Voltage | 230VAC |
| Output Voltage Range | +/-5% |
| Output Frequency | 50/60Hz +/-0.1Hz |
| Display & Indicators | Display | Coloful Graphic LED, showing Left Bakup Time |
| LED | PV on, Mains on, Charging, Protecting |
| Outlets | 230VAC | 2 x Universal (BS, Schuko, French, etc) |
| 5VDC | 2 x USB, 1000mA |
| 12VDC | 4 x Female DC Jack, 5000mA |
| Optional Functions | DC trigger | to start up the generator |
| Smart AC Distributor | Critical Load and Non-critical Load |
| Battery Selector | between New Battery and Old Battery |
| External Battery Terminal | Yes |
