| Prod Model: |
OX-SP500A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Genetate Electricity |
| Solar Panel: |
38W |
| Output Wave: |
Modify Sine Wave |
| Output Voltage: |
AC220V / AC110V |
| Output Frequency: |
50Hz/60Hz |
| Output Current: |
2.27A(220V)/4.54A(110V) |
| Capacity Of Built-in Battery: |
12V/20ah |
| Brand Name: |
ODM/OEM |
| Model: |
Sp500A |
| Size: |
450×420×240mm |
| System: |
Solar Power System |
| Certification: |
FCC |
| Power: |
600W |
Product Description

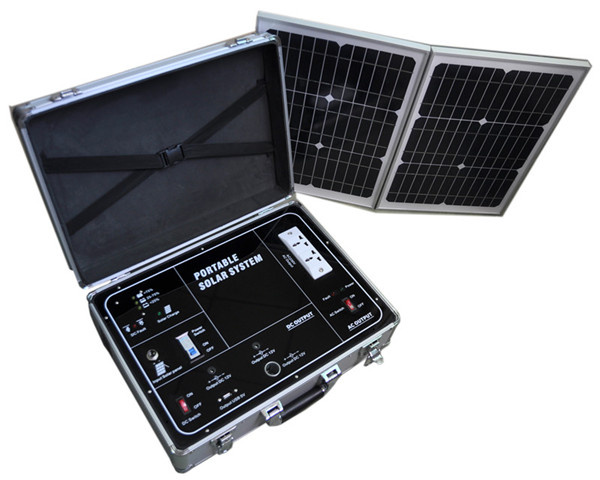

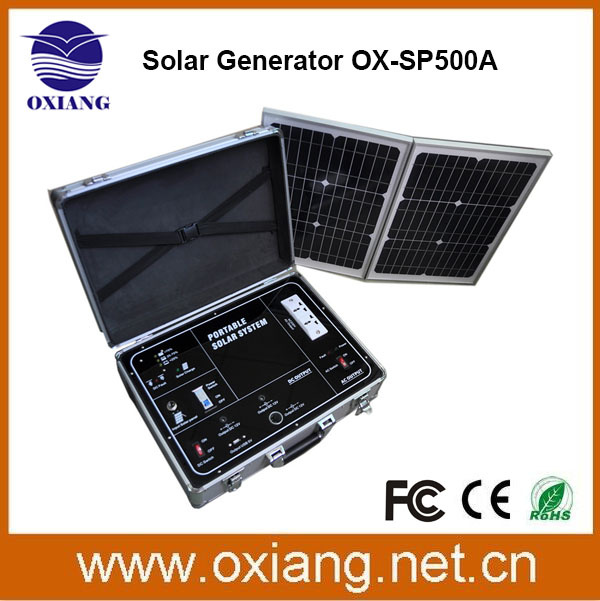

Portable Solar Panel 500W Energy System with 20ah Battery
Specifications:
Solar Panels - 38Wp,

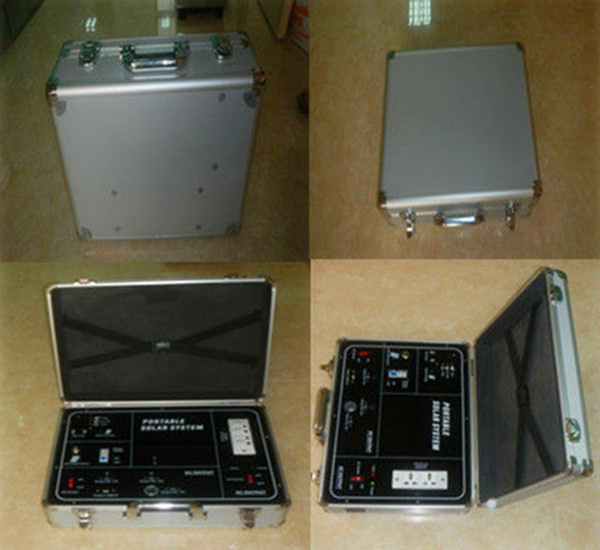

size - 450×420×240MM
maintenance-free batteries - 20AH/12V
modify sine wave inverter - 500W
controller - 12V/10AH
System voltage:12v DC
Output voltage:AC220V / AC110V
Output frequency:50HZ/60HZ
Optional working scope:

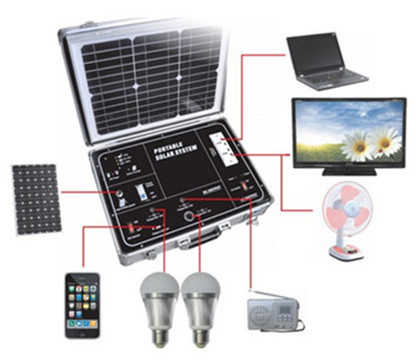

Our mobile power statation mainly use for Resistive load as household linghting, TV, fan, radio and computer. Not suitable for Capacitive load
as electric motor, refrigerator, air conditioning, Microwave and ovens.
In urgent case, our mobile power station can connect with automobile battery to start automobile.
Battery Charge Notices :
1. AC adapter charge ( different type of AC charge available )
While AC power available, please charge mobile power station with AC adapter.
Non-matching adapter is forbidden, Otherwise, the battery will be damaged.
2. Solar Panel charge
Place solar panel outdoors and remove all covering on surface of solar panels, make sure solar panels face sun in south direction to absorb sunlight fully,. then plug the power line of the solar panels into "SOLAR CHARGE" socket.
The adopted solar panels with peak power range : 10W-80W.( Monocrystalline or Polysilicon solar panels), and fully charge time vary with different solar panels.
3. To achieve the more working time, you can external connect with battery.
Connect red line with positive pole of battery, and back line with negative pole of battery.
Parametereter
Model | SP200-20W | SP300-30W | SP500-40W |
| Solar panels power | 20 Wp | 30 Wp | 40 Wp |
| Charging Adapter | 12V/2A | 12V/2A | 12V/5A |
| Solar panels charge current | 1.11A | 1.67A | 2.22A |
| Battery voltage /battery Capacity | 12V/10Ah | 12V/17Ah | 12V/20Ah |
| Max. current of DC input | 12V/5A | 12V/5A | 12V/5A |
| Max. current of DC fuse | 20A | 30A | 40A |
| Max. current of AC fuse | 250V/1A | 250V/1.5A | 250V/2.5A |
| Inside Fluorescent lamp (replaceable) | DC12V/5W |
| Output AC voltage/ Frequency | 220V/50Hz/60Hz, or 110V/50Hz/60Hz |
| Voltage Meter | Real-time display the output voltage |
| Output AC power | 200W | 300W | 500W |
| Output AC Wave | Modify sine wave |
| Battery voltage range | 10.0 -15.0 Vdc |
| Auto-protection | Low/High-voltage, overload/ overtemperature , short -current protection |
