| Prod Model: |
GG2500B/GG2800B/GG3000B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Type: |
AC Single Phase |

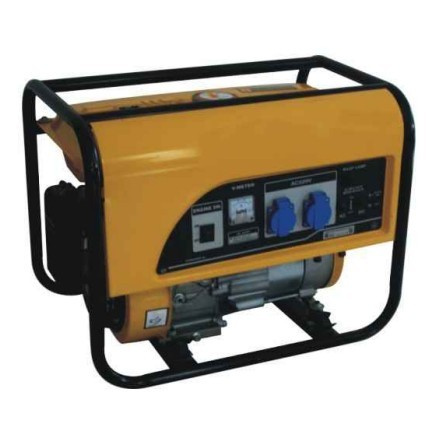

Product Description
Beauty Design with low noise and fuel consumption;
Economical, Convient operation, Easy maintain.,
Can be used in office, shop, house, travelling, fan place, restaurant and other places
Packing Dimension: 600X450X450
Rated AC Output: 2KW/2.5KW/2.8KW
Max. AC Output: 2.2KW/2.8KW/3KW
Rated AC Voltage: 220/110
Fuel Tank Capacity: 15 L
Engine Type: Forced air-cooled 4 stroke OHV single cyliner
Phase: Sigle Phase
Frequency: 50 Hz/60Hz
Export Markets: Global
|
Engine |
Model |
GG2500 |
GG2800 |
GG3000 |
|
Model |
168F |
168F-1 |
170F |
|
Type |
Forced air-cooled 4-stroke OHV single cyliner |
|
Displacement(ml) |
163 |
196 |
208 |
|
Max output(hp/rpm) |
5.5/3600 |
6.5/3600 |
7.5/3600 |
|
Ignition System |
Non-contact Transistorized Magneto |
|
Starting System |
Recoil and manual-operated,power-operated |
|
Fuel Tank Capacity(I) |
15 |
15 |
15 |
|
Fuel Consumption(l/h) |
1.13 |
1.36 |
1.36 |
|
Continuous Operating Hours(h) |
13 |
11 |
11 |
|
Engine Oil Capacity |
0.6 |
0.6 |
0.6 |
|
Operating Noise at 7m(db) |
65 |
67 |
67 |
|
Generator |
Phase Number |
Single phase |
Single phase |
Single phase |
|
Rated Frequency(hz) |
50/60 |
50/60 |
50/60 |
|
Rated Voltage(v) |
220/110 |
220/110 |
220/110 |
|
Power Factor |
1 |
1 |
1 |
|
Rated Output(kw) |
2 |
2.5 |
2.8 |
|
Max AC Output(kw) |
2.2 |
2.8 |
3 |
|
DC Output in Low Voltage |
12V,8.3A |
12V,8.3A |
12V,8.3A |
|
Packing |
Dimension LxWxH(mm) |
600x450x450 |
600x450x450 |
600x450x450 |
|
Carton |
Brown Carton |
Brown Carton |
Brown Carton |
|
N.W./G.W(kg) |
43/45 |
47/49 |
47/49 |
