Psa Industrial/Medical Oxygen Generator

Name: Psa Industrial/Medical Oxygen Generator
Brand: aboutgenerator.com
SKU: 668756372
Availability: InStock
Rating: 4.6 (139 reviews)

Price:	US $ 1000-10000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Brotie Technology Company Limited

Showroom Product Company Profile

Prod Model:	BRHO/BRIO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Purity:	93-95%
Language:	Chinese, English, Russian
Outlet Pressure:	1-150bar
Capacity:	1-200nm3/H
Flow Meter:	SMC Digital Style
Touch Screen:	Siemens
Color:	Blue or White
Optional 1:	Bro-Control System
Optional 2:	Oxygen Cylinder Filling System
Certificate:	CE and ISO
Gas Source:	Gas

Product Description

BROTIE PSA oxygen generator for medical&industrial purposes

(More than 10 years service life of our generators guaranteed to customers)

BROTIE Standard BRIO/BRHO- Series Oxygen Generators can produce from 1 to 200 cubic meters of oxygen per hour! Once you provide electricity and a source of compressed air, the BROTIE oxygen generator will provide oxygen for any application.

BROTIE oxygen generators are designed to produce between 4bar to 200bar output pressure, higher than 93% nominal purity oxygen, -100°F(-73°C) dewpoint and are available in 120 VAC or 220 VAC.

Oxygen where you need it, when you need it and for as long as you need it! Since BROTIE oxygen generator is entirely automatic, imagine no more worries about downtime from late deliveries, weather-related influences or unexpected empties.

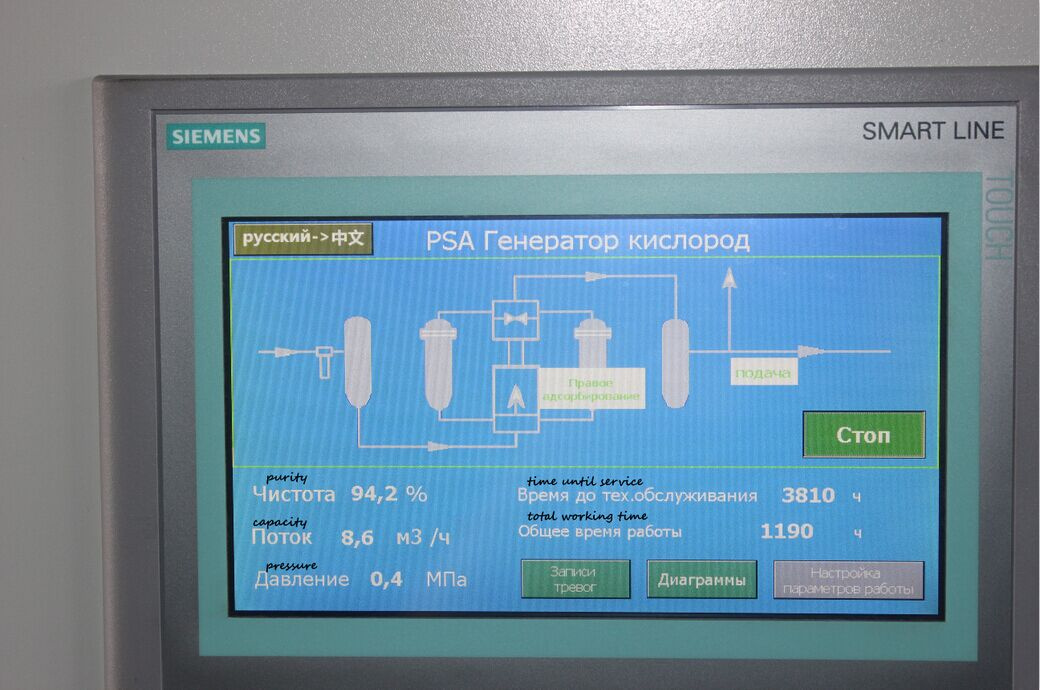

Optional BRO-CONTROL system, SMC online digital flow meter and a Danfoss pressure sensor and a Siemens touch-screen are added. Touch-screen BRO-CONTROL control, display and alarm system makes all the generation system to be operated by one touch. BRO-CONTROL displays working parameters, reminds filter elements replacing and instructs trouble shooting. It enables remote control.

The BRO-CONTROL system can show three optional languges as Chinese, English and Russian.

Applications:

1. After the N2 and O2 Separation Device, there is a O2 purification system to guarantee then quality of the O2 and removing dust, eliminating bacteria and stabilizing pressure to ensure the oxygen outputted stably and meeting medical standards.

2. Users only need to turn the start/stop button to gain the oxygen with designing required flow capacity and purity within 30 minutes.

3. Single line and double lines types are available for option. Users are suggested to choose the single line type when they only require a stable flow capacity; choose double lines when demand is unstable and sometimes meet extra peak values.

4. Qualified oxygen has been filled into cylinders, which is easy for transporting and convenient supplier to each patient room.

All the models can be customized, for more information, please do not hesitate to contact.

Model	Construction	Dimensions	Weight(Kg)
BRHO-1	Four towers	6205051260	226
BRHO-2	Four towers	10009001500	418
BRHO-3	Four towers	10009501580	515
BRHO-4	Four towers	120011001800	622
	Two towers	10506001700	433
BRHO-5	Four towers	130012001750	694
	Two towers	11006001620	459
BRHO-6	Four towers	130012001850	749
	Two towers	11006001850	502
BRHO-7	Four towers	140013001800	853
	Two towers	12006501650	586
BRHO-8	Four towers	140013001850	937
	Two towers	12006501820	640
BRHO-10	Four towers	150014001850	1076
	Two towers	13007001750	758
BRHO-15	Four towers	170015502120	1352
	Two towers	14007502120	923
BRHO-18	Four towers	180016502060	1531
	Two towers	15508002060	1062
BRHO-20	Four towers	180016502250	1618
	Two towers	15508002250	1130
BRHO-25	Four towers	180016502700	1899
	Two towers	15508002700	1327
BRHO-30	Four towers	190017502700	2166
	Two towers	16508502700	1524
BRHO-40	Four towers	210019002900	2633
	Two towers	17509002900	1847
BRHO-50	Four towers	210019503100	3179
	Two towers	18509503100	2325
BRHO-60	Four towers	230021003210	3599
	Two towers	190010503210	2615

Oxygen purification system equipped, with Odor Removal Filter and Bacteria Removal Filter, the high quality of the medical oxygen guranteed.

Two years spare parts have been provided with the generators.

All goods will be commissioned before delivery, international service can be provided.

All the models can be customized, for more information, please do not hesitate to contact.

(Cooperated with excellent suppliers as Siemens, CECA, CKD, SMC and so on. The service life of our PSA oxygen generator will be more than 10years. Please DO NOT compare BROTIE generators with the low quality plants from some manufactuers without honest, thanks a lot.)

BROTIE products, made in China, focus on world.

Registered in Beijing, BROTIE is specialized in air separation solutions, gas boosting solutions, gas analyzing and related industrial gas solutions. Our products include PSA nitrogen generators, PSA oxygen generators, totally oil-free gas compressors, gas analyzers and related equipments.

So far, BROTIE has extended its business scope from simple gas equipment to gas supply so as to provide particular product, technical consultations and solutions for global users in gas and gas equipment field. Owing to our self-motivated passion in researching and developing gas technologies with the cooperation of some professional researching institutes, our prompt and customer-oriented services have reached many countries over the world. You can find BROTIE in United States, Russia, Kazakstan, Tajikistan, Turkey, Philippines, Korea, Bolivia, Brazil, Colombia, Czech, Germany, Kenya, Korea, Turkey, India, Palestine, Senegal, Singapore, Indonesia, Iran, Saudi Arabia, Austrilia, Cyprus, Netherland, Thailand, Sudan, Surname, Ecuador and so on.

With the strategic location of BROTIE, we have got continuous development of technologies and more than 20 long-term partner suppliers located in China such as Siemens, Kobelco, Atlas Copco, Domnick Hunter, Mitsubishi, CKD and SMC. So, BROTIE is able to be one of the best air separation solution manufacturers and one of the most comprehensive Chinese industrial source solution providers for customers at every corner of the world.

Understanding that every application, location and every customer's demand is unique, BROTIE experienced engineers work closely with the customer to analyze the special requirements and the working conditions to provide gas generation systems which meet the specifications of flow, purity and pressure, and customize the system to meet every special requirement.

We believe in that the never stop improvement of ourselves and the support from the cooperators, professional, technical on-top and service concept, BROTIE is continuously supplying more and more professional solutions of on-site gas generation for customers.
