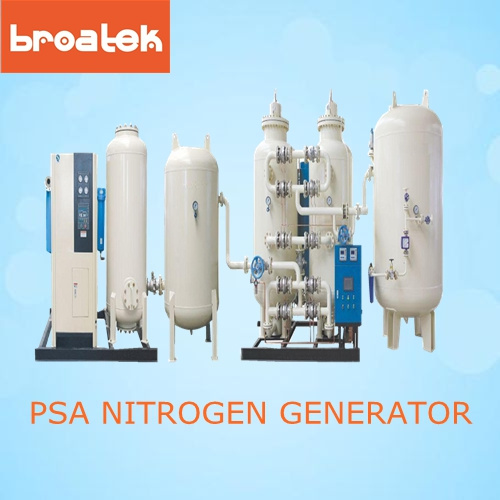

Psa Nitrogen Generator with Nitrogen Purity 97~99.999%

Name: Psa Nitrogen Generator with Nitrogen Purity 97~99.999%
Brand: aboutgenerator.com
SKU: 698593712
Availability: InStock
Rating: 4.8 (137 reviews)

Price:	US $ 2000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Shanghai Broatek Mechanical & Electrical Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	BRN999
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
5~4000nm³ /H:	N2 Purity :97~99.999%
Gas Source:	Gas

Product Description

PSA nitrogen generator
Nitrogen generator

Technical Index:
Nitrogen Output:5~4000Nm³ /h
Nitrogen Purity:97~99.999%
Outlet Pressure:0.05~0.8Mpa
Dew Point:-70ºC~-45ºC

Features
PSA (Pressure Swing Adsorption) circle consists of adsorption, pressure equalization, desorption and pressure equalization four steps. Two adsorption towers are adopted to ensure continuous gas supply. Carbon molecular sieve has obvious adsorption differences to oxygen and nitrogen. There are many tiny holes inside the carbon molecular sieve. Under certain pressure, the tiny holes have different adsorption capacity to oxygen and nitrogen. When air pressure increases, carbon molecular sieve adsorbs oxygen and produces nitrogen, when air pressure drops to normal condition; carbon molecular sieve desorbs oxygen and regenerates itself. Two towers are generally provided, when one absorbs oxygen and produces nitrogen, the other desorbs oxygen and makes regeneration. This alternate process constantly produces nitrogen. This device adopts unequal pressure equalization process to increase nitrogen recovery rate and nitrogen production rate of molecular sieve, which saves energy greatly.

Application of high-purity nitrogen:
Nitrogen is widely used in various industries. It is used in nitrogen protection, pneumatic transmission for synthetic drug, pure nitrogen insulation in bioengineering and nitrogen-back-filling embedment in preparation production. Nitrogen is also used as protective gas in electronic industry and glass industry and serves as product material in chemical industry.

Flow Chart:
1. Air compressor one set
2. Compressed air pretreatment system: air filter, refrigerated air dryer, oil remover
3. Air buffer tank and valves,
4. Oxygen and nitrogen separator system: with A,B tower, valves and clamping device,instrument board
5. Nitrogen buffer: buffer tank, air filter,,flow meter. Control system(including man-machine control interface).

Please send us below information to get a prompt quotation:
1) N2 flow rate: _____Nm3/hr.
2) N2 purity:    _____%
3) N2 discharge pressure:   _____Bar
4) Voltages and Frequency:  ______V/PH/HZ
5) Application:

Please refer to below basic technical specification before you choose a product

Technical Specification of BRN97 Series PSA Nitrogen Generator(Nitrogen Purity: 97%)
Model	Nitrogen Output (Nm3/h)	Required Air (Nm3/min)	Dimension L×W×H(mm)	Weight (kg)
BRN975	5	0.2	2300x1600x1600	1150
BRN9710	10	0.3	2300x1600x1600	1200
BRN9715	15	0.5	2300x1600x1900	1250
BRN9720	20	0.7	2300x1600x1900	1300
BRN9725	25	0.9	2300x1600x1900	1350
BRN9730	30	1	5000x1100x1900	1450
BRN9735	35	1.2	5000x1100x1900	1500
BRN9740	40	1.4	5100x1100x2400	1600
BRN9750	50	1.7	5100x1100x2400	1650
BRN9760	60	2	5400x1200x2400	1750
BRN9770	70	2.4	5700x1200x2700	1950
BRN9780	80	2.7	5800x1200x2700	2150
BRN9790	90	3.1	5800x1200x2700	2250
BRN97100	100	3.4	5800x1200x2700	2300
BRN97120	120	4.1	6000x1400x2700	2650
BRN97150	150	5.1	6300x1400x2850	3100
BRN97180	180	6.1	6500x1400x2850	3300
BRN97200	200	6.8	6600x1400x3100	3500
BRN97220	220	7.5	6600x1400x3100	3600
BRN97240	240	8.2	6600x1600x3100	3800
BRN97250	250	8.5	6700x1600x3100	3900
BRN97300	300	10.2	7500x1700x3100	4500
BRN97350	350	11.9	7800x1700x3150	4700
BRN97400	400	13.6	7900x1700x3150	5100
BRN97450	450	15.3	8300x1850x3500	6000
BRN97500	500	17	8500x1850x3500	6300
BRN97550	550	18.7	8500x1850x4100	6600
BRN97600	600	20.4	8500x1850x4100	7400
BRN97650	650	22.1	9000x1850x4600	7900
BRN97700	700	23.9	9000x1850x4600	8100
BRN97750	750	25.5	9200x1900x4600	8700
BRN97800	800	27.4	9600x2100x5000	9200
BRN97900	900	30.8	9800x2100x5000	10400
BRN971000	1000	34.2	10500x2100x5000	11900
BRN971100	1100	37.6	11000x2600x4200	12600
BRN971200	1200	41	11600x2600x4200	14100
BRN971300	1300	44.4	11600x2600x5100	15000
BRN971400	1400	47.9	11800x2600x5100	15400
BRN971500	1500	51.3	12100x2600x5100	16500
BRN971600	1600	54.7	12200x2700x5500	17400
BRN971700	1700	58.1	12200x2700x5500	17800
BRN971800	1800	61.8	13800x2700x5500	22000
BRN971900	1900	65.3	14000x2900x5500	23200
BRN972000	2000	68.7	14000x2900x5500	23600
BRN972100	2100	72.1	14200x2900x5500	23900
BRN972200	2200	76	14600x2900x5500	25800
BRN972300	2300	79.4	14600x2900x5500	26200
BRN972400	2400	82.9	15400x2900x5500	27100
BRN972500	2500	86.3	15400x2900x5500	27400
BRN972600	2600	89.8	15500x3000x6600	28100
BRN972700	2700	93.7	15700x3000x6600	31200
BRN972800	2800	97.1	15700x3000x6600	31500
BRN972900	2900	100.6	16100x3000x6600	35100
BRN973000	3000	104.1	16100x3000x6600	35400
BRN973100	3100	107.5	16100x3000x6600	35700
BRN973200	3200	111	16200x3100x7300	36500
BRN973300	3300	114.5	16200x3100x7300	36900
BRN973400	3400	118	16200x3100x7300	37100
BRN973500	3500	121.4	16300x3100x7300	39900
BRN973600	3600	124.9	16300x3100x7300	40100
BRN973700	3700	128.4	16300x3100x7300	40500

Technical Specification of BRN98-Type PSA Nitrogen Generator(Nitrogen Purity: 98%)
Model	Nitrogen Output (Nm3/h)	Required Air (Nm3/min)	Dimension L×W×H(mm)	Weight (kg)
BRN985	5	0.2	2300×1600×1600	1200
BRN9810	10	0.4	2300×1600×1600	1250
BRN9815	15	0.5	2300×1600×2000	1300
BRN9820	20	0.7	2300×1600×2000	1350
BRN9825	25	0.9	2300×1600×2000	1400
BRN9830	30	1.1	5200×1100×1900	1350
BRN9835	35	1.3	5200×1100×1900	1400
BRN9840	40	1.4	5200×1100×1900	1500
BRN9850	50	1.8	5400×1100×2400	1550
BRN9860	60	2.2	5600×1200×2400	1700
BRN9870	70	2.5	5600×1200×2400	1750
BRN9880	80	2.9	5700×1200×2400	1900
BRN9890	90	3.2	5800×1200×2400	2100
BRN98100	100	3.6	5800×1200×2700	2350
BRN98120	120	4.3	6000×1400×2700	2700
BRN98150	150	5.4	6400×1400×2850	2950
BRN98180	180	6.5	6700×1400×2850	3250
BRN98200	200	7.2	6700×1400×2850	3350
BRN98220	220	7.9	6700×1400×2850	3550
BRN98240	240	8.7	7100×1600×3100	3850
BRN98250	250	9	7100×1600×3100	4000
BRN98300	300	10.9	7400×1700×3100	4450
BRN98350	350	12.7	7900×1700×3100	5050
BRN98400	400	14.5	8200×1700×3100	5400
BRN98450	450	16.3	8500×1700×3100	6050
BRN98500	500	18.1	8600×1850×3500	6550
BRN98550	550	19.9	8600×1850×3500	7350
BRN98600	600	21.7	8900×1850×3500	7650
BRN98650	650	23.5	8900×1850×4100	8250
BRN98700	700	25.5	9600×1900×4100	9050
BRN98750	750	27.3	9600×1900×4600	9550
BRN98800	800	29.1	9600×1900×4600	9800
BRN98900	900	32.7	10400×2100×5000	11900
BRN981000	1000	36.4	10400×2100×5000	12300
BRN981100	1100	40	11200×2400×5000	13950
BRN981200	1200	43.6	11700×2600×4200	14700
BRN981300	1300	47.3	11900×2600×4200	15000
BRN981400	1400	50.9	12000×2600×4600	16100
BRN981500	1500	54.5	12000×2600×5100	17200
BRN981600	1600	58.5	12400×2600×5100	18200
BRN981700	1700	62.1	13800×2800×5100	22300
BRN981800	1800	65.8	13800×2800×5100	23000
BRN981900	1900	69.8	14100×2800×5500	24900
BRN982000	2000	73.5	14100×2800×5500	25500
BRN982100	2100	77.1	14100×2800×5500	26100
BRN982200	2200	80.8	15100×3000×6400	28200
BRN982300	2300	84.9	15800×3000×6400	29400
BRN982400	2400	88.6	15800×3000×6400	29900
BRN982500	2500	92.3	15800×3000×6400	30400
BRN982600	2600	96	15800×3000×6400	31000
BRN982700	2700	99.7	16200×3000×6400	34800
BRN982800	2800	103.4	16200×3000×6400	35500
BRN982900	2900	107.1	16200×3000×6400	36300
BRN983000	3000	110.7	16300×3000×6600	37500
BRN983100	3100	114.4	16300×3000×6600	38300
BRN983200	3200	118.1	16300×3000×6600	39000
BRN983300	3300	121.8	16400×3100×6600	42200
BRN983400	3400	125.5	16400×3100×6600	43000
BRN983500	3500	129.2	16400×3100×6600	43800

Technical Specification of BRN99-Type PSA Nitrogen Generator(Nitrogen Purity: 99%)
Model	Nitrogen Output (Nm3/h)	Required Air (Nm3/min)	Dimension L×W×H(mm)	Weight (kg)
BRN995	5	0.2	2300×1600×1600	1150
BRN9910	10	0.4	2300×1600×1600	1200
BRN9915	15	0.6	2300×1600×2000	1300
BRN9920	20	0.8	2300×1600×2000	1350
BRN9925	25	1	5100×1100×1900	1400
BRN9930	30	1.2	5100×1100×1900	1450
BRN9935	35	1.4	5300×1100×2400	1550
BRN9940	40	1.7	5400×1100×2400	1600
BRN9950	50	2.1	5600×1200×2400	1750
BRN9960	60	2.5	5600×1200×2400	1900
BRN9970	70	2.9	5600×1200×2400	2000
BRN9980	80	3.3	5800×1200×2700	2400
BRN9990	90	3.7	5800×1200×2700	2450
BRN99100	100	4.1	6200×1400×2700	2800
BRN99120	120	5	6200×1400×2700	3000
BRN99150	150	6.2	6700×1400×2850	3400
BRN99180	180	7.4	6700×1400×2850	3600
BRN99200	200	8.3	7000×1600×3100	4000
BRN99220	220	9.1	7000×1600×3100	4100
BRN99240	240	10	7300×1600×3100	4200
BRN99250	250	10.4	7900×1700×3100	4800
BRN99300	300	12.5	8000×1700×3300	5200
BRN99350	350	14.6	8300×1700×3200	5800
BRN99400	400	16.6	8700×1850×3500	6600
BRN99450	450	18.7	8700×1850×3500	7000
BRN99500	500	20.8	9000×1850×4100	8100
BRN99550	550	23	9200×1850×4100	8700
BRN99600	600	25.1	9600×1900×4600	9600
BRN99650	650	27.2	10000×1900×4600	10000
BRN99700	700	29.3	10000×1900×4600	10400
BRN99750	750	31.4	10500×2100×5000	12200
BRN99800	800	33.5	10500×2100×5000	12600
BRN99900	900	37.6	10500×2200×5000	13300
BRN991000	1000	41.8	11900×2600×4200	15100
BRN991100	1100	46	11900×2600×4200	15700
BRN991200	1200	50.5	12200×2600×5100	18100
BRN991300	1300	54.7	12200×2600×5100	18700
BRN991400	1400	58.9	12400×2600×5100	19300
BRN991500	1500	63.4	14100×2800×5500	24500
BRN991600	1600	67.7	14100×2800×5500	25200
BRN991700	1700	71.9	14100×2800×5500	26000
BRN991800	1800	76.6	14500×2900×6400	28300
BRN991900	1900	80.8	15300×3000×6400	29700
BRN992000	2000	85.1	15800×3000×6400	30500
BRN992100	2100	89.3	15800×3000×6400	31300
BRN992200	2200	93.6	15800×3000×6400	32100
BRN992300	2300	97.8	15800×3000×6400	32900
BRN992400	2400	102.1	16300×3000×6600	37400
BRN992500	2500	106.3	16300×3000×6600	38500
BRN992600	2600	110.6	16300×3000×6600	39600
BRN992700	2700	114.8	16300×3000×6600	40700
BRN992800	2800	119.1	16300×3000×6600	41800
BRN992900	2900	123.3	16400×3100×6600	45300
BRN993000	3000	127.6	16500×3100×7300	46900
BRN993100	3100	131.8	16500×3100×7300	48000
BRN993200	3200	136.1	16500×3100×7300	49100
BRN993300	3300	140.4	16500×3100×7300	50200

Technical Specification of BRN995-Type PSA Nitrogen Generator(Nitrogen Purity: 99.5%)
Model	Nitrogen Output (Nm3/h)	Required Air (Nm3/min)	Dimension L×W×H(mm)	Weight (kg)
BRN9955	5	0.2	2300×1600×1600	1200
BRN99510	10	0.4	2300×1600×1600	1250
BRN99515	15	0.7	2300×1600×2000	1350
BRN99520	20	0.9	2300×1600×2000	1400
BRN99525	25	1.1	4900×1100×1900	1450
BRN99530	30	1.3	5100×1100×2400	1550
BRN99535	35	1.6	5100×1100×2400	1600
BRN99540	40	1.8	5100×1100×2400	1650
BRN99550	50	2.2	5400×1200×2400	1850
BRN99560	60	2.7	5600×1200×2400	2000
BRN99570	70	3.1	5800×1200×2700	2350
BRN99580	80	3.6	6000×1200×2700	2500
BRN99590	90	4	6200×1400×2700	2900
BRN995100	100	4.4	6200×1400×2700	3000
BRN995120	120	5.3	6300×1400×2850	3150
BRN995150	150	6.7	6700×1400×2850	3600
BRN995180	180	8	6900×1600×3100	4050
BRN995200	200	8.9	6900×1600×3100	4150
BRN995220	220	9.8	7500×1700×3100	4750
BRN995240	240	10.7	7500×1700×3150	4850
BRN995250	250	11.1	7500×1700×3200	4950
BRN995300	300	13.3	8200×1700×3200	5750
BRN995350	350	15.5	8600×1850×3500	6800
BRN995400	400	17.8	8700×1850×3500	7100
BRN995450	450	20.1	9100×1850×4100	8500
BRN995500	500	22.3	9100×1850×4100	9100
BRN995550	550	24.6	9900×1900×4600	10100
BRN995600	600	26.8	9900×1900×4600	10500
BRN995650	650	29	10200×2100×5000	11300
BRN995700	700	31.3	10400×2200×5000	12900
BRN995750	750	33.5	10400×2200×5000	13300
BRN995800	800	35.7	11100×2600×4200	14000
BRN995900	900	40.2	11700×2600×4200	15300
BRN9951000	1000	44.9	12100×2600×5100	17400
BRN9951100	1100	49.4	12200×2600×5100	18900
BRN9951200	1200	54.2	12500×2700×5500	21400
BRN9951300	1300	58.8	12500×2700×5500	22100
BRN9951400	1400	63.3	14100×2800×5500	26500
BRN9951500	1500	68.2	14500×2900×5500	28700
BRN9951600	1600	72.7	14500×2900×5500	29500
BRN9951700	1700	77.3	14500×2900×5500	30500
BRN9951800	1800	81.8	15300×3000×5500	32200
BRN9951900	1900	86.4	15300×3000×5500	33200
BRN9952000	2000	90.9	15900×3000×6600	34800
BRN9952100	2100	95.5	15900×3000×6600	36000
BRN9952200	2200	100	16300×3000×6600	40500
BRN9952300	2300	104.6	16300×3000×6600	41700
BRN9952400	2400	109.1	16300×3000×6600	42900
BRN9952500	2500	113.6	16300×3000×6600	44100
BRN9952600	2600	118.2	16400×3100×7300	45800
BRN9952700	2700	122.7	16400×3100×7300	49400
BRN9952800	2800	127.3	16400×3100×7300	50600


Technical Specification of BRN999-Type PSA Nitrogen Generator(Nitrogen Purity: 99.9%)
Model	Nitrogen Output (Nm3/h)	Required Air (Nm3/min)	Dimension L×W×H(mm)	Weight (kg)
BRN9995	5	0.3	2300×1600×1600	1250
BRN99910	10	0.5	2300×1600×2000	1350
BRN99915	15	0.8	2300×1600×2000	1450
BRN99920	20	1.1	5400×1100×2400	1550
BRN99925	25	1.3	5400×1100×2400	1650
BRN99930	30	1.6	5500×1100×2400	1850
BRN99935	35	1.9	5500×1100×2400	2000
BRN99940	40	2.1	5900×1200×2700	2350
BRN99950	50	2.7	6000×1200×2700	2500
BRN99960	60	3.2	6200×1350×2850	2750
BRN99970	70	3.7	6200×1350×2850	2850
BRN99980	80	4.3	6500×1400×2850	3300
BRN99990	90	4.8	6500×1400×3100	3550
BRN999100	100	5.4	6700×1400×3100	3700
BRN999120	120	6.4	7400×1600×3100	4350
BRN999150	150	8	7400×1600×3200	4750
BRN999180	180	9.6	7800×1700×3200	5300
BRN999200	200	10.7	8400×1850×3500	6100
BRN999220	220	11.8	8400×1850×3500	6400
BRN999240	240	12.8	8500×1850×4100	6900
BRN999250	250	13.4	8500×1850×4100	7400
BRN999300	300	16.2	8800×1850×4600	8900
BRN999350	350	18.8	9700×2100×5000	9900
BRN999400	400	21.5	10000×2100×5000	11100
BRN999450	450	24.2	10000×2100×5000	11900
BRN999500	500	26.9	11100×2600×4200	13200
BRN999550	550	29.6	11100×2600×4200	13500
BRN999600	600	32.5	11500×2600×5100	16300
BRN999650	650	35.2	11500×2600×5100	17200
BRN999700	700	37.9	11500×2600×5100	18200
BRN999750	750	40.9	12700×2700×5500	21100
BRN999800	800	43.6	12700×2700×5500	21700
BRN999900	900	49.1	12900×2900×6400	24100
BRN9991000	1000	54.9	12900×2900×6400	26600
BRN9991100	1100	60.4	14500×2900×6400	31700
BRN9991200	1200	65.9	15100×3000×6600	33900
BRN9991300	1300	71.3	15100×3000×6600	35900
BRN9991400	1400	76.8	15100×3000×6600	37900
BRN9991500	1500	82.3	16000×3100×7300	41000
BRN9991600	1600	87.8	16000×3100×7300	43000

Technical Specification of BRN49-Type PSA Nitrogen Generator(Nitrogen Purity: 99.99%)
Model	Nitrogen Output (Nm3/h)	Required Air (Nm3/min)	Dimension L×W×H(mm)	Weight (kg)
BRN495	5	0.3	2300×1600×1600	1200
BRN4910	10	0.6	2300×1600×2000	1250
BRN4915	15	0.8	2300×1600×2000	1300
BRN4920	20	1.1	4860×1100×1900	1450
BRN4925	25	1.4	5150×1100×2400	1550
BRN4930	30	1.7	5150×1100×2400	1700
BRN4935	35	1.9	5200×1100×2400	1800
BRN4940	40	2.2	5200×1100×2400	1900
BRN4950	50	2.7	5500×1200×2400	2100
BRN4960	60	3.3	5800×1300×2700	2350
BRN4970	70	3.8	6000×1300×2700	2550
BRN4980	80	4.4	6000×1300×2700	2900
BRN4990	90	4.9	6450×1550×2850	3100
BRN49100	100	5.5	6450×1550×2850	3200
BRN49120	120	6.6	6450×1550×2850	3600
BRN49150	150	8.2	7000×1620×3100	4000
BRN49180	180	9.9	7650×1800×3100	4650
BRN49200	200	11	8000×1800×3200	4950
BRN49220	220	12.1	8200×2000×3100	5500
BRN49240	240	13.2	8200×2000×3150	5500
BRN49250	250	13.7	8400×2000×3200	5750
BRN49300	300	16.5	8600×2100×3500	6870
BRN49350	350	19.2	9500×2100×4100	7300
BRN49400	400	22.1	9500×2100×4100	9500
BRN49450	450	24.9	9900×1900×4600	10100
BRN49500	500	27.6	10200×2300×5000	10950
BRN49550	550	30.4	10200×2300×5000	12850
BRN49600	600	33.1	10200×2300×5000	12850
BRN49650	650	35.9	10750×2300×5000	13250
BRN49700	700	38.7	11650×2600×4200	14050
BRN49750	750	41.4	12300×2700×4200	15300
BRN49800	800	44.2	12300×2700×4200	15850
BRN49900	900	50	12500×2700×5100	19100
BRN491000	1000	55.6	12500×2700×5100	20100
BRN491100	1100	61.5	13000×2700×5500	26450
BRN491200	1200	67.1	13000×2700×5500	27450
BRN491300	1300	73.2	14300×2900×6400	30150
BRN491400	1400	78.8	14300×2900×6400	31200
BRN491500	1500	84.4	15200×3000×6400	32750
BRN491600	1600	90.1	15200×3000×6400	33750
BRN491700	1700	95.7	16400×3000×6600	35150
BRN491800	1800	101.3	17000×3000×6600	39450
BRN491900	1900	107	17000×3000×6600	40450
BRN492000	2000	112.6	17000×3000×6600	41650
BRN492100	2100	118.2	17100×3100×7300	45600
BRN492200	2200	123.9	17100×3100×7300	46650
BRN492300	2300	129.5	17100×3100×7300	47650
BRN492400	2400	135.1	17100×3100×7300	48650


Technical Specification of BRN59-Type PSA Nitrogen Generator(Nitrogen Purity: 99.999%)
Model	Nitrogen Output (Nm3/h)	Required Air (Nm3/min)	Dimension L×W×H(mm)	Weight (kg)
BRN595	5	0.6	2400×1600×1600	1300
BRN5910	10	1.2	5200×1100×2400	1650
BRN5915	15	1.8	5500×1100×2400	1980
BRN5920	20	2.4	5800×1200×2700	2250
BRN5925	25	3	6100×1200×2700	2600
BRN5930	30	3.6	6300×1400×2850	2850
BRN5935	35	4.2	6450×1400×2850	3450
BRN5940	40	4.8	6450×1400×2850	3650
BRN5950	50	6	7000×1400×3100	4000
BRN5960	60	7.2	7500×1700×3100	4600
BRN5970	70	8.4	7500×1700×3300	5000
BRN5980	80	9.6	7900×1700×3200	5350
BRN5990	90	10.8	8500×1850×3500	6100
BRN59100	100	12	8500×1850×3500	6850
BRN59120	120	14.3	8500×1850×4100	7550
BRN59150	150	18	9100×1900×4600	9000
BRN59180	180	21.5	10100×2100×5000	10700
BRN59200	200	23.9	10100×2100×5000	11500
BRN59220	220	26.3	11000×2600×4200	12900
BRN59240	240	28.7	11600×2600×4200	14400
BRN59250	250	29.9	11800×2600×4200	15850
BRN59300	300	35.9	12000×2600×5100	17850
BRN59350	350	41.8	13100×2700×5500	21300
BRN59400	400	47.8	13100×2700×5500	22800
BRN59450	450	54.2	13700×2700×6400	26250
BRN59500	500	60.2	15200×3000×6400	31600
BRN59550	550	66.3	15200×3000×6400	33600
BRN59600	600	72.3	15300×3000×6600	36000
BRN59650	650	78.3	15300×3000×6600	37500
BRN59700	700	84.3	16100×3000×6600	40200
BRN59750	750	90.4	16200×3100×7300	42200
BRN59800	800	96.4	16200×3100×7300	44150

Shanghai Broatek is a high-tech filter manufacturer specializes in high-performance filtration products. Our product range from filter elements to post-treatment equipment for screw air compressor. We focus on continuously developing high efficiency and cost-saving products for OEMs, wholesaler and end users throughout the world.

Screw air compressor filters

With full range of replacement/retrofit filters for screw air compressor (over 10, 000 part No. ), our filter element (air filter, oil filter, air oil separators) are installed on many brand screw air compressors, most including Ingersoll-Rand, Atlas Copco, Sullair, Compair, Kaeser, Gardner Denver, BOGE, Hitachi, Kobelco, Mitsui-Seiki and Fusheng etc.

Post-treatment equipment for air compressor

Our basic product includes pipeline filtration, oil remover, desiccant compressed air dryer, refrigerated compressed air dryer, PSA nitrogen generator and self-clean air filter. All these products are made to help decreasing the damages of industrial equipment. As the compressed air contains water vapor and dust, it's a big threaten to keep machine running. Without effective control of these air during the regularly working, plug valves worn, pipeline corrupted, equipment damaged by air leakage, sometimes even caused production stagnation. Broatek is aiming at solving these problems and help our client to saving cost on maintenance.

We value sustainable relationships with our employees, customers and partners based upon honest dealings, mutual satisfaction and respect.
