Purity:
93-95%
Outlet Pressure:
1-150bar
Language:
Chinese, English, Russian
Touch Screen:
Siemens
Flow Meter:
SMC Digital Style
Color:
Blue or White
Optional 1:
Bro-Control System
Optional 2:
Oxygen Cylinder Filling System
Gas Source:
Gas
Product Description

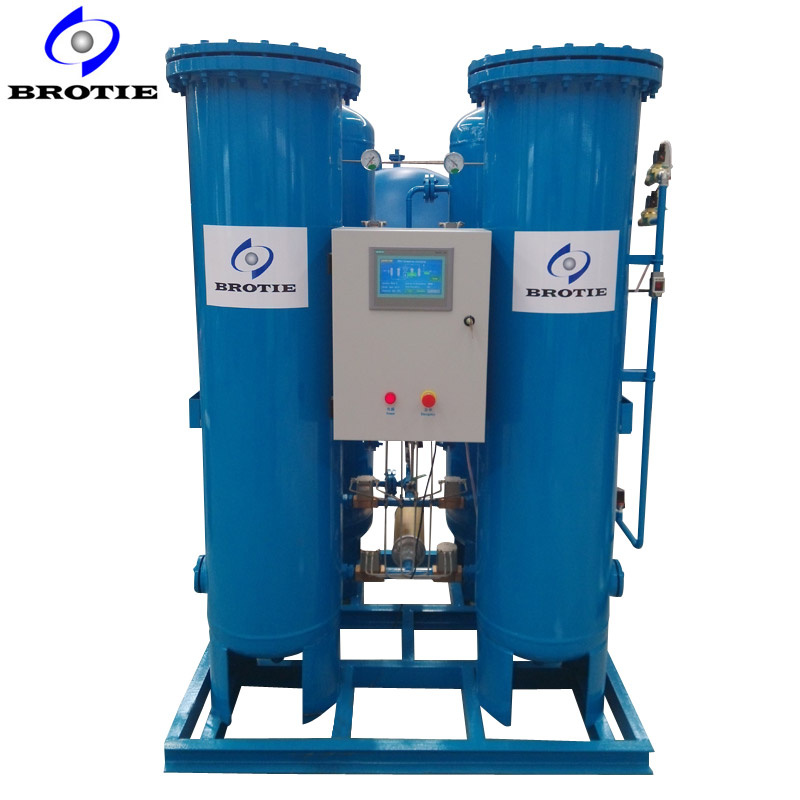

BROTIE PSA Oxygen Generator(BRHO/BRIO)
Principles:
Customized PSA oxygen generator, purity 90-95% with no purification system, capacity from 1Nm3/h-50Nm3/h, pressure from 0.1bar to 200bar, uses zeolite molecular sieve as sorbent, produces oxygen by making use of the PSA principle. Professional energy saving design provided with each of BROTIE oxygen generator system, low air consumption means more economical for customers. The BRO-CONTROL system is provided, all the parameters can be read and the operation can be actualized by one touch only. Alarming system can work automatically when the purity, the capacity and pressure is lower than required, it means more reliable and more humanistic for customers.
Applications:
1. After the oxygen generator, the oxygen purification system is equipped to guarantee the quality of the O2 and removing dust, eliminating bacteria and stabilizing pressure to ensure the oxygen outputted stably and meeting medical standards.
2. Users only need to turn the start/stop button to gain the oxygen with designing required flow capacity and purity within 30 minutes.
3. Single line and double lines types are available for option. Users are suggested to choose the single line type when they only require a stable flow capacity; Choose double lines when demand is unstable and sometimes meet extra peak values.
Two years spare parts have been provided with the generators.
All goods will be commissioned before delivery, international service can be provided.
All the models can be customized, for more information, please do not hesitate to contact.
Model
Construction
Dimensions
Inlet& Outlet
Weight(Kg)
BRHO-1
Four towers
620*505*1260
G1/4; G1/4
226
BRHO-2
Four towers
1000*900*1500
DN15; G1/2"
418
BRHO-3
Four towers
1000*950*1580
DN15; G1/2"
515
BRHO-4
Four towers
1200*1100*1800
DN15; G1/2"
622
Two towers
1050*600*1700
DN15; G1/2"
433
BRHO-5
Four towers
1300*1200*1750
DN25; G1/2"
694
Two towers
1100*600*1620
DN25; G1/2"
459
BRHO-6
Four towers
1300*1200*1850
DN25; G1/2"
749
Two towers
1100*600*1850
DN25; G1/2"
502
BRHO-7
Four towers
1400*1300*1800
DN25; G1/2"
853
Two towers
1200*650*1650
DN25; G1/2"
586
BRHO-8
Four towers
1400*1300*1850
DN25; G1/2"
937
Two towers
1200*650*1820
DN25; G1/2"
640
BRHO-10
Four towers
1500*1400*1850
DN25; G1/2"
1076
Two towers
1300*700*1750
DN25; G1/2"
758
BRHO-15
Four towers
1700*1550*2120
DN40; G1"
1352
Two towers
1400*750*2120
DN40; G1"
923
BRHO-18
Four towers
1800*1650*2060
DN40; G1"
1531
Two towers
1550*800*2060
DN40; G1"
1062
BRHO-20
Four towers
1800*1650*2250
DN40; G1"
1618
Two towers
1550*800*2250
DN40; G1"
1130
BRHO-25
Four towers
1800*1650*2700
DN50; G1"
1899
Two towers
1550*800*2700
DN50; G1"
1327
BRHO-30
Four towers
1900*1750*2700
DN50; G1"
2166
Two towers
1650*850*2700
DN50; G1"
1524
BRHO-35
Four towers
2100*1900*2600
DN50; G1"
2424
Two towers
1750*900*2600
DN50; G1"
1686
BRHO-40
Four towers
2100*1900*2900
DN50; G1"
2633
Two towers
1750*900*2900
DN50; G1"
1847
BRHO-45
Four towers
2200*2000*2850
DN65; G1"
2831
Two towers
1850*950*2850
DN65; G1"
2167
BRHO-50
Four towers
2100*1950*3100
DN65; G1"
3179
Two towers
1850*950*3100
DN65; G1"
2325
BRHO-55
Four towers
2300*2100*3000
DN65; G1"
3328
Two towers
1900*1050*3000
DN65; G1"
2411
BRHO-60
Four towers
2300*2100*3210
DN65; G1"
3599
Two towers
1900*1050*3210
DN65; G1"
2615
