| Prod Model: |
DG6LN |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Power: |
5kw |
| Engine Speed: |
3000/3600rpm |
| Optional Parts: |
Wheels,Panel,ATS etc. |
| Color: |
Red,Yellow,Black etc. |
| Warranty: |
Running for One Year |
| Stroke: |
Four Stroke |
| Type: |
Self-Starting Diesel Generator |
| Cooling Method: |
Air Cooled |
| Installation Method: |
Portable |
| Output Type: |
AC Sigle Phase&Three Phase DC12-18V |
Product Description

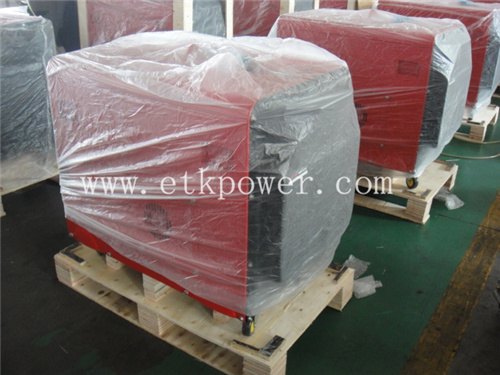

DIESEL GENERATOR SET --DG6LN
Diesel generator Set DG6LN with ETK186F(E) diesel engine, portable silent type diesel generator set with 4 wheels, diesel generator professional export manufacturer. Diesel engine, diesel water pump, diesel generator and welder set, gasoline engine, gasoline generator set are also our best-selling products.
Introduction
As a factory of diesel engine and diesel generator, ETK is pioneer in design, manufacture and assembly of diesel generators sets, ATS panels, and leader in provision of power generation solutions ensuring power is provided whenever and wherever it is needed.
Advantages:
1. Diesel generator set with CE
2. Skilled technicians and professional engineers
3. Every spart part supplier is chosen strictly based on excellent quality
4. Complete production procedures, strict test center, good package
5. Warranty: Running for one year
6. Standard operation / technical maintenance /manual/tool kits
7. Any questions. Pls do not hesitate to contact our salesperson
| Model | open type diesel generator set | silent type diesel generator set |
| 2KW | 3KW | 5KW | 3KW | 5KW |
| DG3LE | DG4LE | DG6LE | DG4LN | DG6LN |
| Frequency(Hz) | 50 /60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Voltage(AC)(V) | 220;230;120/240 | 220;230;120/240 | 220;230;120/240 | 220;230;120/240 | 220;230;120/240 |
| Voltage(DC)(V) | 12 | 12 | 12 | 12 | 12 |
| Current(A) | 8.30 | 8.30 | 8.30 | 8.30 | 8.30 |
| Engine speed(rpm) | 3000 /3600 | 3000 /3600 | 3000 /3600 | 3000 /3600 | 3000 /3600 |
| Power facotr(cosφ) | 1 | 1 | 1 | 1 | 1 |
| Starting system | Recoil manual start/optional electric start |
| Rate power(Kw) | 2.0/3.0 | 3.0/4.0 | 4.6/6.0 | 2.8/3.5 | 4.6/5.5 |
| Net weight(kg) | 75 | 96 | 119 | 139 | 168.5 |
| Engine model | ETK170F(E) | ETK178F(E) | ETK186F(A)(E) | ETK178F(E) | ETK186F(A)(E) |
| Type | Single cylinder,vertical,direct injection,4-stroke,air cooled diesel engine |
| Cooling type | Force air-cooled |
| Crankshaft direction | Clockwise from flywheel end |
| Continuous Output(Kw) | 2.5/2.98 | 3.4/4.4 | 5.7/6.6 | 3.4/4.4 | 5.7/6.6 |
| Maximum Output(Kw) | 2.8/3.36 | 4.0/4.9 | 6.3/7.34 | 4.0/4.9 | 6.3/7.34 |
| Bore × Stroke(mm) | 70*55 | 78*62 | 86*70/86*72 | 78*62 | 86*70/86*72 |
| Displacement(cc) | 211 | 296 | 406/418 | 296 | 406/418 |
| Fuel Tank Capacity(L) | 15 | 15 | 15 | 15 | 15 |
| Packing dimensions(L×W×H)mm | 705*520*580 | 745*520*600 | 785*550*635 | 950*550*770 | 965*565*725 |
| Lube-oil Capacity(L) | 0.75 | 1.1 | 1.65 | 1.1 | 1.65 |
| 20FT container (pcs) | 132 | 99 | 99 | 72 | 72 |
Changzhou ETK Power Machinery Co., Ltd. Specializes in producing all kinds of diesel and gasoline generators, air compressor, water pump. Power trowel, plate compactor, floor saw, concrete mixer, concrete vibrator etc. Our products can be used in many areas, such as industry, agriculture and fishery. Our company has strong technological power, strict discipline of basic management, advanced technology and superior check methods. We have carried out the quality system certification ISO9001 during the whole process and have CE and EPA.
With seasoned and experienced professionals coupled with state-of-the-art technology and industry best practices, it is our vision to make our products that truly recognizes the needs of its clients, understands the clients and renders the best services in customer interaction. Our products are well sold in Philipine, India, Thailand, UAE, France, UK, Spain, Australia and so on. Our goal is to make our products in everywhere of the world.
Welcome to contact us
