| Prod Model: |
ADP100GFR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |

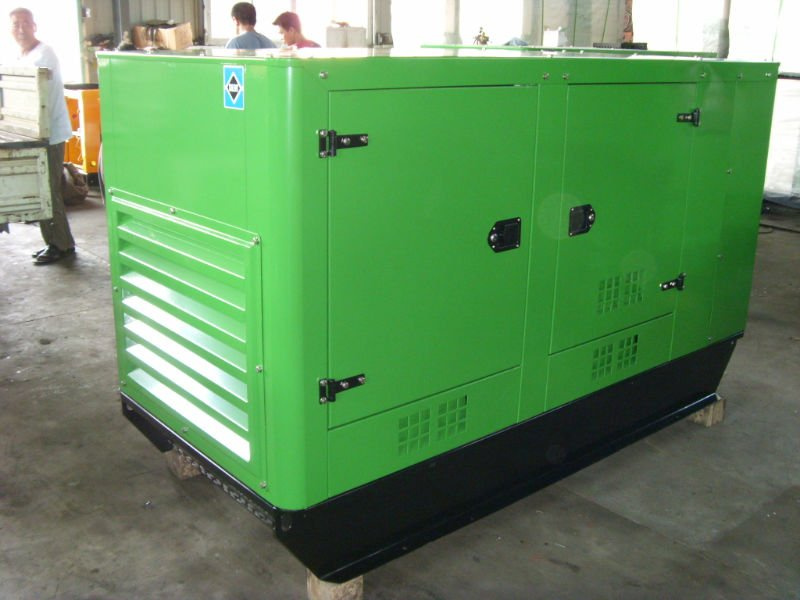

Micro-Computer Control Automatic Diesel Generator |
| Output Type: |
AC Three Phase |
Product Description
Engine: Ricardo--R6105JZLD
Alternator: Mindong-100TFW
Standard intelligent control panel.
Radiator 40OC max, fans are driven by belt,
With safety guard.
24V charge motor.
Absorber.
Dry type air filter, fuel filter, oil filter.
Two 12V batteries, rack and cable.
Ripple flex exhaust pipe, exhaust siphon, flange, muffler.
Operation& Maintenance manual.
Standby power: Power available for use at variable loads for limited annual time(500h), within the following limits
Of maximum operating time: 100% loads 25h per year-90% loads 200h per year. No overload available. Applicable
In case of failure of the main in areas of reliable electric network.
Prime Power: The maximum power available during a variable power sequence, which maybe run for and unlimited number of hours per year. Between stated maintenance intervals. The permissible average power output during a 24 hours period shall not exceed 80% of the prime power. 10% overload available for governing purposes only.
|
Model |
ADP-100GFR |
Prime Power |
100kw /125kva |
|
S t andby Power |
110kw / 140kva |
|
Frequency |
Phase/Wires |
Power factor
COSΦ |
Voltage |
StandbyAmps |
PrimeAmps |
|
50Hz |
3/4 |
0.8 lagging |
220/380v |
234.3 |
213 |
|
50Hz |
3/4 |
0.8 lagging |
240/415v |
214.5 |
195.0 |
China Power Machinery Co. Ltd, Modern Power Machinery manufacturer, leading supplier in China, is a corporation of complementary business units that design, manufacture, distribute and service generators and related technologies, including diesel generator, diesel utility vehicle, snow blower, riding lawn mower, snowmobile, golf cart etc., specially focused in power products.
Headquartered in Shanghai, China, belong to the Group who employs approximately 2, 500 people worldwide, which was awarded AAA(1) Credit Certification by the PRC Ministry of Commerce, Shanghai AAA Credit Freight Forwarder industry, Shanghai Excellent Clearance AA Credit Enterprise, also rated to be Shanghai Famous Brand Service Supplier and Shanghai Key Enterprise, which enable the company to be listed on top 14 of nation-wide enterprises. Certified by ISO9001: 2008, we won the award of premium partner of Bank of China.
We have established good co-operative relationship with China Customs., China Commodity Inspection Department and other related departments, achieves an Annual turnover of 0.64 billion US$. Innovation, Quality Control and Cost Control are our main advantages, Global Quality Assurance for the Diesel Genset, Cummins is one important feature, for other Diesel Generators which combined with other brand engine (also they are worldwide fame), Power guarantee: If Compared with other China Factories, you will find our products:
1. Better Price if the Same Quality
2. Better Quality if the Same Price
We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
