| Prod Model: |
LHBMG100-300 |
| Markets: |
Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Color: |
Your Choice for Biomass Gas Generator |
| Fuel: |
Biomass Gas for Biomass Gas Generator |
| Package: |
Plywood Case for Biomass Gas Generator |
| Power: |
100-300kw |
Product Description

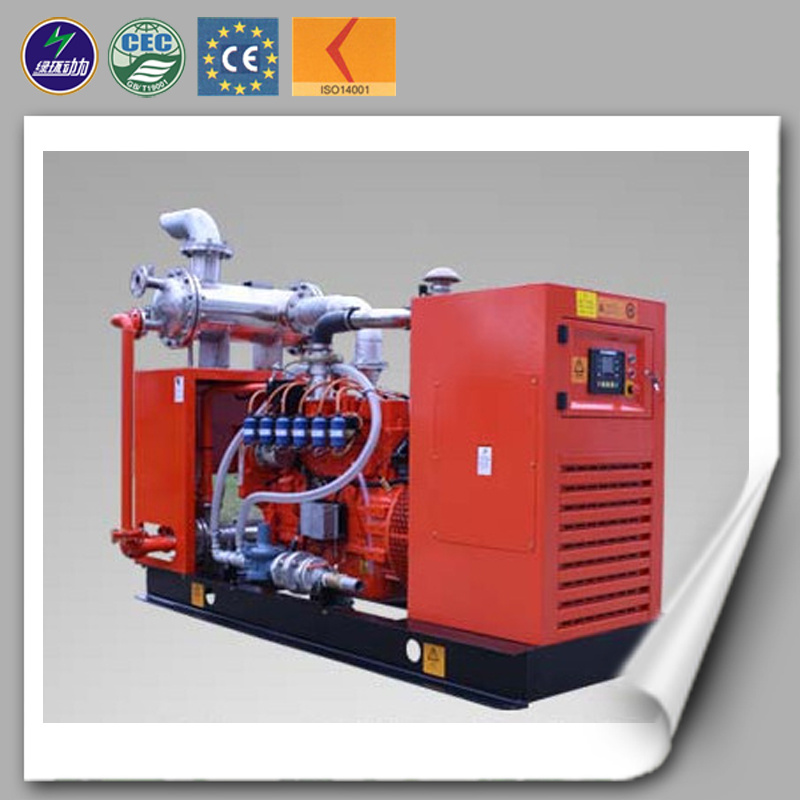

Rice Husk Wood Chips 100-300KW Biomass Gas Generator with CE ISO Approved
1. specifications
50-600kW biomass gas generator sets
manufacturer for over eight years
With CE and ISO certificates
high efficiency
Easy Start & Auto start
2.Gas Requirements For Biomass gas generator
Within 1m to the intake valve of gas generator set
Gas temperature ≤ 40ºC
Pressure 3-10kpa, pressure changing rate ≤ 1kpa/min
H2S ≤ 200mg/Nm3
NH3 ≤ 20mg/Nm3
Tar content≤20mg/Nm3
Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
Moisture content ≤ 40g/Nm3
Heat value≥4.2MJ/nm3
Parameters of the biomass generator
Model Number (Engine Type) | LHBMG300 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 80KW/300KW |
| Rated Speed | 1000RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant consumption | ≤1.0g/kw.h |
| Engine Capacity | 32 L |
| Cylinder Number | 6 |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Chinese Stamford |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 4200x1170x1550mm |
| Weight | 8500kg |
3. Service
1.pre-sale service:
(1)We will send our engineer to prospect the site of power station free to charge.
(2)According to the situation of site we can supply you many drawings:like power station floor plan,
engineering flow sheet of circle cooling system,genset installation,genset foundation,electrical connection and some other techincal support etc.
2.Sale service:
(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.
(2)We will debug the generator set till it can generate power successfully.
(3)We will also supply a technical training to the operators.Orcan send your staff to our company.We can train you till you can operate the generator set.
3.After-sale service:
(1)Our every engineers are in charge of different area,we will response periodically and support you
technical service free of charge,
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)we solve quality problem in time when genset doesn't work,We insure to help our clients to gain the biggest economic profit.
4.FAQ:
1.How to choose the right model?
A: It depends on real output power, Voltage, Frequency and gas type.
2.What is the oil consumption and capacity per hour?
A: 1.0-1.63g of lubricant oil consumption per hour. 1.0 Cubic meter gas can produce 1.5-3.0kw/h power. The capacity depends on gas energy. E.g 1.0 Cubic meter natural gas produce about 3.0kw/h
3.What is the overhaul?
A: About 30000 working hours. A week is enough to finish.
4. What is the warranty?
A: 1 year. Inside this 1 year, we offer all spare parts free of charge. After this period, spare parts are not free. But, a set of spare parts will be shipped together with machine free.
5. How is the service?
A: We offer installation,repair and maintain service abroad. And online guide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
Please feel free to ask question and quotation.
Shandong Lvhuan Power Equipment Co., Ltd. is a manufacturer which specially produces internal-combustion gas engine generator sets and gas engines, with registered capital of more than RMB10 million, annual turnover of RMB100 million, over 200 staff, beautiful scenery and convenient transportation. Our factory mainly specializes in the design, research, production, sale, installation and technical service of gas generator sets and diesel generator sets. Our company has strong specialty, powerful technical force, a complete production plant, advanced processing technology, mature inspection method and a strict test system.
Our products include 105, 135 and 190 series base engines. The output power ranges from 10kw to 500kw. The gensets can be used for biogas, natural gas, oil associated gas, coal mine gas and mash gas produced by burying rubbish and sewage disposal.
We manage our company by ISO9001 system strictly. Gas engines and alternators are environment-friendly products.
Our philosophy is "Only pay attention to supplying stronger power to you". More importantly, combining with our continuous technological innovation and hard work, we believe that you will choose our company and keep a long-term business relationship with us!
