| Prod Model: |
GD008-WZ-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
The technical sources are from the research of Harbin Electric Co., Ltd.

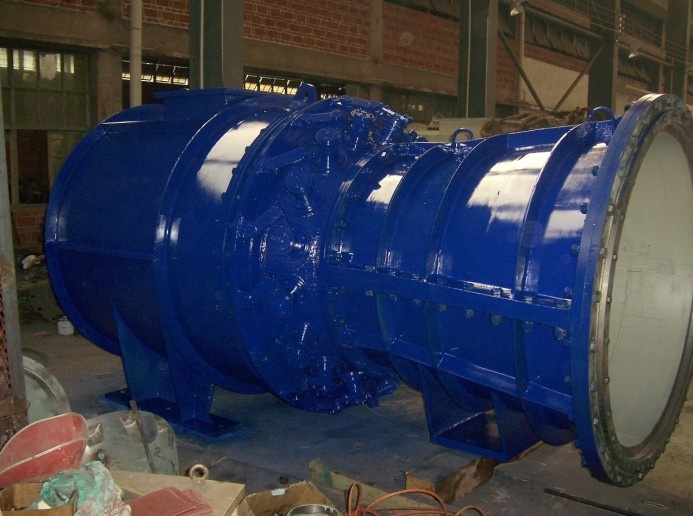

Model: GD008-WZ-110
The turbine technical specifications:
Contact Jelly Tuo
1. Efficiency: 88%
2. Speed: 750r/min
3. Discharge(m3/s): 3.66~5.4
4. Head(m): 15.5~32.6
5. Rated output: 445KW~1356KW
The generators:
Rated output: 400KW~1250KW
Operation and maintenance manual with:
Operating criteria
O / M manual of Turbine & Generator
O / M manual of all main equipment / components
Wiring diagram of controls and switch boards panel
Parts list and cable list
Spare parts for Turbine
Supply the spare part for the turbine and associated equipment considered necessary for 5 years of operation of the generating units.
The contract includes the design, manufacture, inspection and testing, packing for export shipment.
Located in the beautiful world and the natural and cultural heritage of the Emei Mountain, close to the Chengdu-Kunming railway, transportation is very convenient. Companies engaged in the turbine manufacturing since the eighties, China Water Conservancy Association members, strong, well-equipped, superb, perfect detection means, an area of 15, 000 square meters, fixed assets 20 million yuan, more than 150 employees, senior professional and technical personnel more than 40 people, the company has achieved ISO9001-2000 quality system certification in 2004, developed its own "ceramic turbine rotor blades" provincial innovation award.
