| Prod Model: |
SP-3000L |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Large |
| Weight: |
766kg |
| Certification: |
CE, RoHS.ISO9001 |
| Material: |
Monocrystalline Silicon |
Product Description

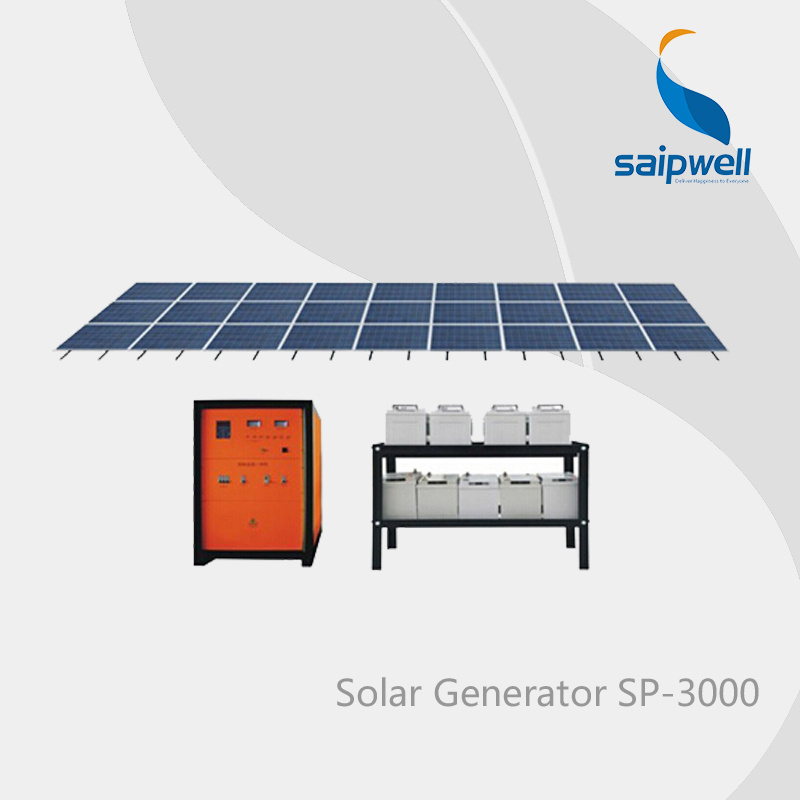

Saipwell Home Solar Power Generator (SP-3000L)
Specifications
Home Solar Power Generator？
1. CE & RoSH？
2. Simple structure？
3. Energy saving？
4. Multi-protection settings
Introduction:
？1. Avoid using the machine under such conditions as having flammable or explosive or erosive gas and too hot places.
？
2. This system equips with solar panel and battery.Under the condition of fully charged, it can supply power for 2pcs 3W LED lights and charge the mobile. ( the parameters differ according to the different geographical, using condition and using time) .
？
Features:
？
1. Simple structure, easy maintenance
2. Output for pure sine wave
3. Micro-computer？chip controller,PWM regulator, automatic temperature compensation
4. Electronic insurance tube is replaced of？fuse, surge and over-current protection
5. Protection is wide, over-voltage, under-voltage, overload, short-circuit protection, etc
6. High performance, especially used at home
7. Double Charge fuction :？Solar and city power
8. Emergency？ power for home or Office, remote areas, communications,etc
Other Products
FAQ
？
Question:What can be included for this system?
？
Answer: ？
This system includes:solar panels,inverter,controller,battery,solar pv cable,bracket,and disconnectors.
？
Question:What's the advantage for this solar system?
？
Answer: ？
1.Steady operating
2.The most advantage:On grid energy backup(not means sell electricity,just backup)
3.CE Certified
4.Easy installation according to our instructions
5.professional parts supply
？
Question:How to place and install them before we use?
？
Answer: ？
The system can be put on ground outside house,but must be kept away from water or spray.And the solar panels must be placed away from shadow,the less dust the better in the air.And the solar panel must be placed to？a certain angle(20-45 angle)？which will be faced directly to the sun
？
Question:how about the lifetime?
？
Answer: ？
The life time for？solar panel is？25years,another parts is for？6-15years.
？
？？
Package data:
？
PartSize ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？(L*W*H？？ mm) ？ ？ ？ ？ ？ ？ ？ ？ ？Weight(kg)
？
Power box ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？？500*640*930 ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？65
Solar panel ？ ？ ？ ？ ？ ？ ？ ？ ？ ？？1200*850*680 ？ ？ ？ ？ ？ ？ ？ ？ ？？180
Solar panel bracket ？ ？ ？ ？1660*85*600 ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ 111
Battery ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？490*540*880 ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ 375
Battery bracket ？ ？ ？ ？ ？ ？ ？？2270*85*75 ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？ ？35
？
？
Solar on grid system:solar panel+grid tie inverter
？
Solar off grid system:solar panel+hybird inverter(controller ,inverter)+battery
？
？
(other parts as PV array combiner,rack,cable can optional)
？
Contact Us
Tel: ？ ？ ？ ？0086-021-56026033-8052？？？
Mobile: ？？+86 15026900836
http://www.saipgroup.com/
？
We're Professonal,as always~？？
|
Technical data: |
|
|
|
|
|
Item No. |
SP-3000L |
|
Capacity |
3000VA |
|
System voltage |
110VDC |
|
Best output power everyday |
6000WH |
|
Inverter |
Output wave |
Pure sine wave |
|
Output voltage |
AC110/220V |
|
Output frequency |
50HZ/60HZ |
|
Output current |
10.9A(220V) / 21.8A(110V) |
|
Precision of output voltage |
±3% |
|
Precision of output frequency |
±0.1% |
|
False output wave of AC |
<3% |
|
Overload ability |
120%, 30 seconds |
|
Invert efficiency |
>85% |
|
Solar panel |
Pmax |
1600W |
|
Vmp |
160V |
|
Imp |
10A |
|
Battery |
Capacity |
108V150AH |
Shanghai Saipwell Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces thermostats, heaters, hiboxes and all kinds of waterproof enclosures, solar charge controller, solar generator, wind generator etc.
