| Prod Model: |
AGF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automatic Grade: |
Automatic |
| Filling Principle: |
Pressure |
| Structure: |
Linear |
| Feed Cylinder Structure: |
Single-Room Feeding |
| Material Type: |
Liquid |
| Type: |
Count Filling Machine |
| Filling Valve Head: |
Multi-Head |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Packaging Type: |
Bottle |
| Packaging Material: |
Composite Materials |
| Dosing Device: |
Measuring Pump |
Product Description

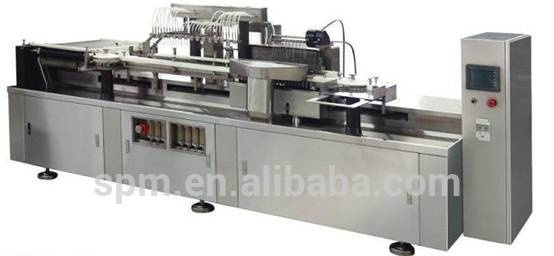

Machine Description: 1) The machine is applicable for ampoule pre-nitrogen flushing, filling, post-nitrogen flushing and sealing
2) It adopts glass pump; stainless steel pump and ceramic pump which driven by mechanical or servo motor, stable performance, no-dropping, high filling accuracy.
3) Specification: 1-20ml ampoule
4) The machine is linear intermittent filling way, accurate needle alignment, no dropping phenomenon
5) Multi-filling pumps( 8/10/12/16/20-heads), high production capacity?
6) It applicable to natural gas, coal gas, hydrogen generators or other medium, adjustable length of drawing and good-looking
7) Avoid cross-contamination
8) The quality of air inside of the filling area can be printed, indicated, stored, alarmed, and controlled by the isolator
9) Glove system inside of Isolator
10) Peristaltic pump suitable as well.
Technical Data:
Model | AGF8 | AGF10 | AGF12 | AGF16 |
Container Size (ml) | 1-20 |
Capacity(pcs/min) | 1-2ml>22000 | 1-2ml>28000 | 1-2ml>32000 | 1-2ml>40000 |
5ml>12000 | 5ml>18000 | 5ml>22000 | |
10-20ml>10000 | 10-20ml> 14000 | 10-20ml>18000 |
Power | 380v 50Hz |
Electric Load | 3Kw |
Glass Pump Accuracy
(based on 1ml) | ±2% |
Piston Pump driven by Servo Motor | ±1% |
Oxygen | 0.1-0.2Mpa ,0.7-1.5 m3 /h. | 0.1-0.2Mpa ,0.85-1.8m3 /h. | 0.1-0.2Mpa, 1.2-2.3 m3 /h. | 0.1-0.2Mpa,2.1-4.0 m3 /h. |
Gas | 0.2-0.3Mpa,1.8-3.0m3/h. | 0.2-0.3Mpa,2.1-3.2 m3/h. | 0.2-0.3Mpa,3.2-3.7m3/h. | 0.2-0.3Mpa,3.8-4.0 m3/h. |
Successful Rate of Drawing | 99.95% |
Brack Rate | ≤0.1% |
Noise(dB) | ≤65 |
Weight(kg) | 2450 | 2500 | 2500 | 2550 |
Dimension(L*W*Hmm) | 3500×1800×1900 | 3500×1800×1900 | 3500×1800×1900 | 3500×1800×1900 |
Specifications
It is applicable for water and air spray washing.Hot air laminar dry
and sterilize, multiple needle filling and sealing.
Quick Details
- Type: Filling Machine
- Condition: New
- Application: Food, Medical
- Packaging Material: Other
- Automatic Grade: Automatic
- Driven Type: Mechanical
- Voltage: 380V/50Hz
- Power: 2.2kw
- Place of Origin: Shanghai, China (Mainland)
- Brand Name: SPM
- Model Number: AGF8/1-20
- Dimension(L*W*H): 3500*1800*1900
- Weight: 2450kg
- After-sales Service Provided: Engineers available to service machinery overseas
- Usage: Outer
- Type: General
