| Prod Model: |
IFC6 354-6 190kw/1000rpm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
190kw |
| Running Speed: |
1000rpm |
| Frequecny: |
50Hz;60Hz |
| Voltage: |
400V;450V |
Product Description

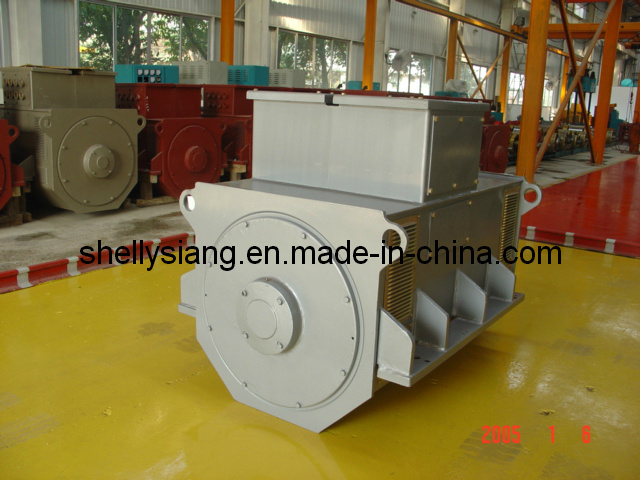

Siemens Middle Speed AC Brushless Alternator(IFC6 354-6 190kw/1000rpm) INTRODUCTION
1FC6 brushless 3 phase synchronous generators is renewal product instead of 1FC5 series generators in 1980's.We introduced the advanced patent techniques of this generators from siemens in 1989.Our company have obained quality system certificate by siemens and technological certificats and by the ministry of machinery industry and the classification Societies of china in 1990.In recent years measurement ability of the series generators are raised through technological Introdction and tfansformations.
The series generators can be used as spare power or mobile power supply applied to railway post,mile and charter,which have gone into international market.
Siemens Middle Speed AC Brushless Alternator(IFC6 354-6 190kw/1000rpm)
If you want to know more information about Siemens Middle Speed AC Brushless Alternator(IFC6 354-6 190kw/1000rpm), Contact with us freely .
Type |
(KW)
Rated output(KW) |
Rated Voltage(v)
(V) |
Rated FRE(Hz)
Hz |
Rated speed
(rpm) |
Power factor
COS φ |
Efficiency(%)
(%) |
Moment of inevtia
(Kg.m) |
Set weight(kg)
(kg) |
(mm)
Overall Dimensions |
| L | S | L×W×H |
IFC6 562-4
IFC6 564-4
IFC6 566-4 | 1400
1500
1600 | 1250
1300
1400 | 400 | 50 | 1500 | 0.8
()
(lagging) | 94.7
94.7
94.7 | 47.5
50.3
56.3 | 4150
4540
5000 | 2070×1500×1610
2070×1500×1610
2070×1500×1610 |
IFC6 354-6
IFC6 354-6 | 190
250 | 150
200 | 400 | 50 | 1000 | 0.8()
(lagging) | 90.5
91.5 | 7.5
8.0 | 1360
1610 | 1455×890×960
1610×890×960 |
IFC6 404-6
IFC6 404-6 | 300
375 | 250
335 | 400 | 50 | 1000 | 0.8()
(lagging) | 91.0
91.7 | 11.2
13.3 | 1750
1950 | 1735×1020×1040
1735×1020×1040 |
IFC6 454-6
IFC6 456-6 | 475
560 | 425
500 | 400 | 50 | 1000 | 0.8()
(lagging) | 92.3
93.0 | 19.0
22.2 | 2700
2850 | 1915×1210×1300
1915×1210×1300 |
IFC6 502-6
IFC6 504-6
IFC 506-6 | 800
900
1000 | 710
800
850 | 400 | 50 | 1000 | 0.8
()
(lagging) |
93.8
93.8
93.9 |
31.6
36.0
42.1 |
3250
3500
3800 |
1970×1310×1400
1970×1310×1400
1970×1310×1400 |
IFC6 562-2
IFC6 564-6
IFC6 566-6 | 1050
1200
1300 | 900
1000
1120 | 400 | 50 | 1000 | 0.8
()
(lagging) | 93.9
94.0
94.2 | 53.1
60.8
66.9 | 4400
4850
5150 | 2027×1500×1610
2225×1500×1610
2225×1500×1610 |
