| Prod Model: |
LR300GF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
300kw |
| Gas Source: |
Natural Gas, Biogas, City Sewage Gas, Landfill Gas |
Product Description

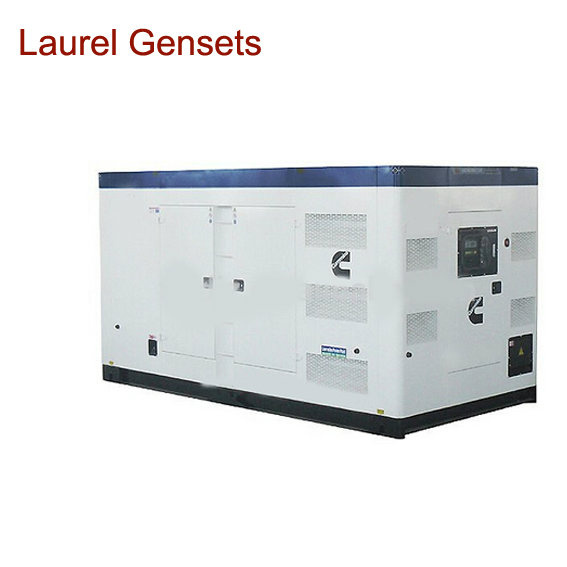

Silent 375kva Natural Gas Generator Approved by CE 300kW
1. Specification of genset |
Gensets model | KH-300GF |
| Rated power | 300KW |
| Rated Voltage | 400/230V |
| Rated frequency(HZ) | 50Hz |
| Rated Speed | 1500rpm |
| Power Factor | 0.8(lagging) |
| Dimensions(mm) (L×W×H) | 3500*1550*2000 |
| Net Weight(kg) | 4400 |
| 2. Specification of diesel engine |
| Engine brand | Cummins |
| Engine model | KT19 |
| Number of Cylinders | 6 |
| Cylinder arrangement | Vertical in-line |
| Cycle | Four stroke |
| Aspiration | Turbocharged,air to air cooled |
| Fuel System | Direct Injection |
| Bore×Stroke (mm×mm) | 159X159 |
| Displacement (Liter) | 18.9 |
| Speed Governor | Electronic |
| Cooling System | Forced Water Cooling Cycle |
| Starting Method | DC24V electrical starting |
| 3. Specification of alternator |
| Alternator brand | Marathon |
| Alternator model | MP-300-4 |
| Number of Phase | 3 |
| Connecting Type | 3 Phases and 4 Wires |
| Number of Bearing | 1 |
| Protection Grade | IP21 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
| 4. The components of the generator set |
1)Cummins engine 2)Marathon alternator 3)Deepsea 8620 paralleling box
4)Water heater 5)CHP (2 level ) 6)Battery charger
7)Remote radiator |
5.General Features: |
| Cummins Engine |
| Radiator 40°C max, fans are driven by Belt, with safety guard |
| 12V charger alternator |
| Marathon Alternator |
| Absorber |
| Dry type air filter, fuel filter, oil filter |
| Main line circuit breaker |
| Standard control panel |
| Ripple flex exhaust pipe, exhaust siphone, flange, muffler |
| 12V*2 batteries, rack and cable |
| User manual |
| 6. Specification of control Panel |
Deepsea is a new generation Automatic control module for single Genset, which adopts bran-new
outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory. |
The module also monitors and protects the engine, indicating operational status, fault conditions and
metering on the front panel LCD and LED's. |
Natural Gas Generators & CHPs/CO-GENs
The power ratings: 10kWe to 1,200kWe.
CCHPs (Combined Cooling, Heating and Power) /Tri-generation: available on request.
The hertz and voltages: 50hz, 400/230vac or 60hz, 220/110vac, other voltages available on request.
The fuels: (1) pipeline natural gas with pressure 1-5kpa (2) CNG (3) LNG.
The gas engines: Powered by Cummins, Deutz, GM, Toyota, Isuzu and Suzuki gas engines.
The alternators: Leroy Somer, Stamford, Marathon and Chinese ones. Brushless, self-excited.
The control cabinets: with controllers from ComAp, DeepSea/DSE and Smartgen. ATS, parallel cabinet and grid parallel cabinet available.
The governors: electronic, from Woodward & Hainnzmann.
The mixers: venturi or variable mixers from IMPCO.
The ignition system: hi-energy ignition system from Woodard, Altronic & Motortech. Lean-burn with closed loop lambda control system available for continuous running gas gensets/CHPs.
Gas train: ball valve, gas filter, DUNGS solenoid valve & pressure switches.
Heat recovery system: to recovery heat from jacket water and/or from exhaust pipe, with total heat efficiency up to 85%.
Silent canopy: with noise < 72dB(A) @ 7 m. Container type available.
Standards and Certifications: ISO 9001, ISO 8528, ISO 3046, CE, UL, CSA, EPA.
Factory test: all gensets are tested with min. 2 hours before delivery.
Packing: Standard export packing, no fumigation certificate needed.
Quality warranty: 1,500 hours or 18 months for standby gas gensets/CHPs, whichever comes first. 8,000 hours for continuous running gas gensets/CHPs with European configuration.
Manufacture's Advantages:
1. Our factory was founded in 1981.
2. Main Products: diesel generator sets, generators, engines, water pumps and other agricultural machinery products.
3. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service
1. professional value-added technical support
2. warm before-sales & after-sales service
3. warranty period of 24 months or 1200 operating hours for diesel generators.
3. warranty period of 12 months or 1000 operating hours for gasoline generators.
Guangzhou Laurel & Honesty Holdings, founded in 1981, is professional company focusing on generators and Agricultural machines.
It has been 34 years since our factory was founded. Our main products are diesel generator sets, generators, marine engines, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE, RoHS, GS, TUV etc.
QUALITY GUARANTY POLICY
1. Guaranteed products
All kinds of Generator sets, generators, engines, pumps, control panels and agricultural machines sold by our company, Guangzhou Laurel & Honesty Holdings.
2. Base warranty period
1)The warranty period of generator sets is 2 years or 1200 running hours (the earlier one shall prevail) from the date when the generator set have been delivered from the factory.
2)The warranty period of generators, engines, pumps, control panels and agricultural machines is 1 year or 1000 hours from the date when the goods have been delivered from the factory whichever is coming first, the warranty period will be ended.
3)Any other special stipulation according to the order.
3. Guaranty range
The user shall strictly follow the operation handbook and service statement (included all the products mentioned above) to maintain and keep the equipments, the goods has any malfunctions caused due to the manufacture quality problems in the guarantee period.
4. Limit of guaranty
1)The goods is damaged during transport, Carrier shall take charge of the amends.
2)The goods is damaged due to unsuitable setting or doesn't follow the installation manual which offered by our company.
3)The goods is damaged due to the user doesn't follow the service statement to replace the filter and lube oil in the stated period.
4)The goods is damaged due to the user doesn't use the appointed oil filter, fuel filter, air filter which mentioned in the manual book.
5)The goods is damaged due to the user make bold to replace or use the spare parts or add other equipment on it without our company approbation.
6)The goods is damaged due to disassembly parts from the equipments without our company approbation.
7)The goods is damaged due to unsuitability place, start, warm-up, stop and so on.
8)The goods is damaged due to using disqualification fuel or other substance mixed in the fuel, such as water, impurity, contamination and so on.
9)Our company shall provide free maintenance service for malfunctions caused due to the manufacture quality, but not take charge of any overhead expensed, losing and any fault analysis fee.
. AFTER-SALES SERVICE POLICY
Guangzhou Laurel & Honesty Holdings will meet the needs of consumers as possible. They can expect to enjoy our specialized service from product manufacturing, delivery and installation to the technical support and maintenance during operation process. After receive the feedback of quality problem, we answer the consumers and supply problem solve program in 24 hours. Do our best to supply satisfied service.
You can get the following services:
1. Provide complete qualified products:
Once business cooperation is established, customers will immediately be presented with detailed technical information according to products.
(1)Product information
(2)Engine information
(3)Alternator information
(4)Automatic Start-Stop Systems information
(5)Insulation Protection information
2. Provide complete technical support, including installation and commissioning services:
After the customer receive the goods, we can provide installation and commissioning advisory guidance, and also can assign engineering technologist with installation experience to the scene and guide the on-site installation if necessary.
3. Professional technology personnel training:
If the customer requirements, we will arrange technical personnel training, guidance.
4. Maintenance Service.
5. Supply technology assistance for your whole life.
