| Prod Model: |
VTD3500LDE, VTD6000LDE |
Product Description

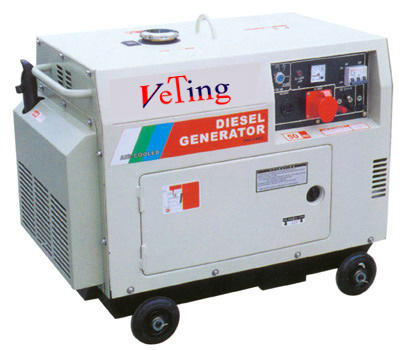

DIESEL GENERATOR (SILENT)
Characteristics:
Soundproof canopy
Low oil shut-down
Minimal vibration & smooth running
Brushless alternator (optional brush + AVR type)
Air circuit breaker
Large, efficient muffler
Large-capacity fuel tank 13.5L to 16L
Easy to move with durable 4-stroke rolling structure
Options:
1. Remote control
2. Automatic transfer switch (ATS)
| Specifications: |
| MODEL | VTD3500LDE | VTD6000LDE |
| Frequency(Hz) | 50/60 |
| Max AC output (KVA) | 3. 2/3. 5 | 2 5. 2/5. 88 |
| Rated AC output (KVA) | 2. 8/3. 3 | 4. 8/5. 5 |
| Voltage (V) | 110-120 | 220-240 |
| DC output | 12V/8. 3A |
| Phase Single or three phase (optional) | | |
| Engine model | VD178FE | VD186FAE |
| Displacement (cc) | 296 | 418 |
| Engine starting system | Electric start with battery |
| Lube oil capacity (L) | 1. 1 | 1. 65 |
| Fuel tank capacity (L) | 13. 5 | 16 |
| Battery | YES |
| Dimensions(L*W*H) | 880*570*770 | 950*570*770 |
| Net weight (kg) | 140 | 165 |
| Noise level at 7M (dB) | 72 | 72 |
Shanghai Veting Power Co., Ltd. specialized in manufacturing diesel/gasoline engines, diesel/gasoline generators, diesel/gasoline generators & welder, pumps, lawn mowers and such kinds of engine products. All products exported are manufactured by ourselves.
We have passed certificates of ISO9001: 2000 quality management system. 'Safe, durable, stable and green' is our manufacturing principles. Our products have been certificated by EPA, EC, CE and CSA. The requirements of PLT are strictly followed to control consistency of production and quality of products. Our products have been widely exported to North America, Europe and other oversea markets.
We insist on 'human resource to be based on, excellent quality to compete, R&D to succeed, creation to expand' as our developing principles, and are striving to be a leader of the competitive market.
We are sincere and eager to cooperate with friends all over the world for a more brilliant future!
Superior products, superior quality, superior service, superior price'.
