| Prod Model: |
GFS |
| Type: |
Micro-Computer Control Automatic Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Two Stroke |
| Cooling Method: |
Wind Cooling |
Product Description
To forge long term relationships with our customers for mutual benefit, we welcome friends from around the world to contact us for business negotiation.

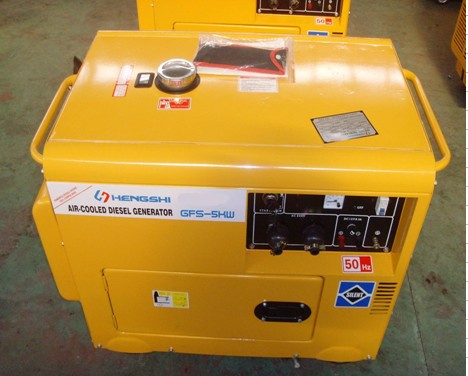

| GFS Series Slient air cooled diesl engine generator set |
| Model | GFS-3 | GFS-5 |
| Type | Brushless,self-exciting,2-poles,single-phase | Brushless,self-exciting,2-poles,single-phase |
| AC frequency(HZ) | 50 | 60 | 50 | 60 |
| AC output Voltage(V) | 120,220,230,120/240 | 120,220,230,120/240 |
| Con.AC output(KVA) | 3 | 3.3 | 4.5 | 5 |
| Max.AC output(KVA) | 3.3 | 3.6 | 5 | 5.5 |
| DC output(V/A) | 12/8.3 | 12/8.3 |
| Insulation | F | F |
| Power factor | 1 | 1 |
| Model | FF178FE | FF186FE |
| Type | OHV 4-Stroke air-cooled single-cylinder | OHV 4-Stroke air-cooled single-cylinder |
| Displacement(cc) | 306 | 418 |
| Engine Speed(rpm) | 3000 | 3600 | 3000 | 3600 |
| Starting System | Electric | Electric |
| Max.power output(hp) | 5 | 5.5 | 8 | 9 |
| Fuel Tank Capacity(L) | 16 | 16 |
| Continues work(h) | 10.8 | 10 | 7.3 | 7 |
| Operating Noise Level(at 7m) | 68 | 70 |
| DIM(L*W*H)(mm) | 940*555*780 | 960*555*780 |
| Net weight(kg) | 150 | 175 |
| 20'FCL(pcs) | 72 | 73 |
Fufa Electrical Co., Ltd. is located in Fujian, a coastal province in China. We enjoy convenient air and water transportation. Our main products are electric motors generator-sets, generatorsand water pumps, which are made using a combination of many good materials. We adopt high grade aluminum, stainless steel, cast iron, pure copper wire, high efficiency electrical steel as well as polymers and ceramics in our products.
We can also complete in-house design tooling and OEM orders for customers.
Our priority is to provide our customers with professional services, high quality products and on-time delivery. Well aware of the importance of quality, we have passed several international certifications, such as ISO9001 and CE.
To forge long term relationships with our customers for mutual benefit, we welcome friends from around the world to contact us for business negotiation.
