Engine:
Cummins
Alternator:
Kaijie, Marathon, Stamford, Leroy Somer
Frequency:
50Hz, 60Hz for Option
Rated Voltage:
400/230V, Various Voltage Available
Controller:
Smartgen, Deepsea, Comap
Optional:
Silent / Waterproof Canopy, ATS, Parallel System
Quality Standard:
ISO9001/CE/Soncap
Warranty Period:
1 Year or 1000 Hours Running
Type:
Basic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description

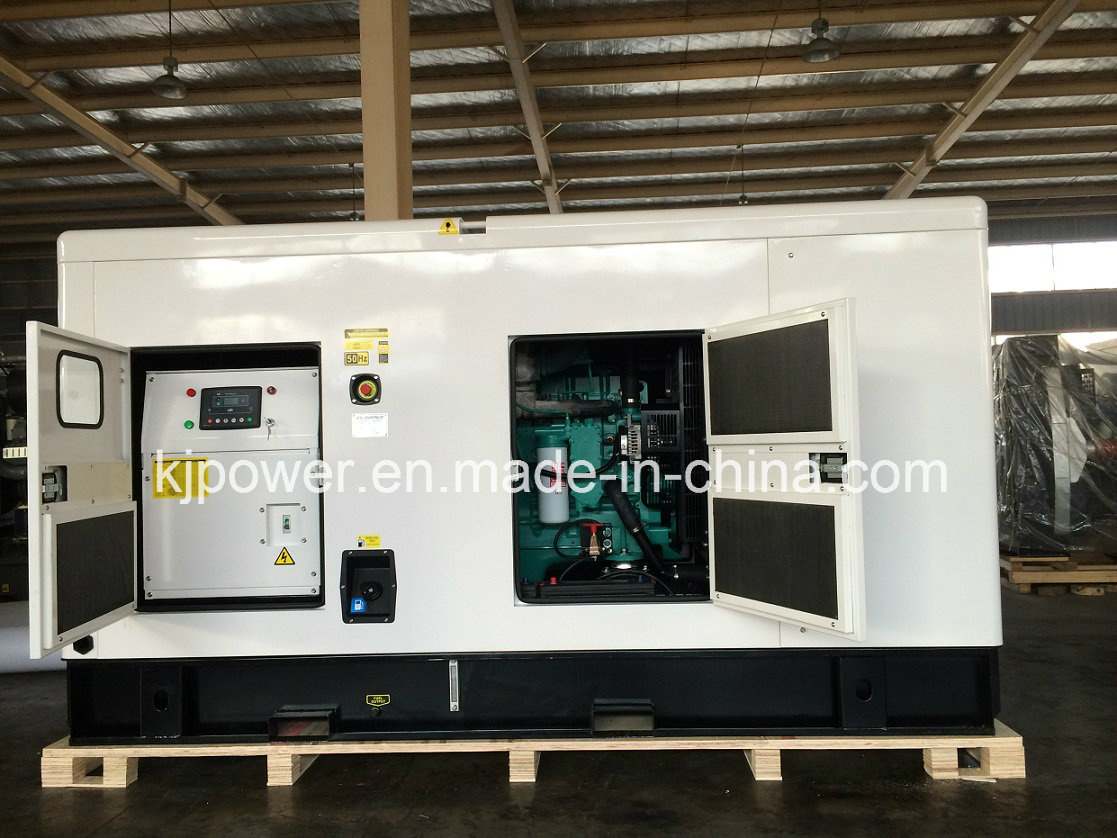

Product Description-25KVA-250KVA Silent Diesel Generator Set with cummins engine
1.Powered by Cummins Engine 2. With Stamford / Leroy Somer / Marathon Alternator 3. With CHINT / ABB MCCB & Electronic Components 4. Electric Start with Battery 5. Base Integrated Fuel Tank 6. ATS, Deepsea / ComAp / Smartgen Controller 7. Comply with ISO9001/CE 8. After-sale Services
Cummins Diesel Generators Power From 20kVA up to 1500kVA, with compacted structure and best configuration.
OEM CUMMINS Powered Diesel Generator Sets with its high reliability, low use and maintenance cost win the loyalty of many customers in the field of Army, transportation engineering system and mine industries. Established in 1919, headquartered in Columbus, Indiana, (USA) Cummins Inc.Serves customers in more than 160 countries and territories through its network of 680 company owned and independent distributor locations and more than 5, 000 dealer locations. As the largest foreign engine investors of China, Cummins possess Chongqing Cummins Engine Co., Ltd (produce M, N, K series engine) and Dongfeng Cummins Engine Co., Ltd (produce B, C, L series engine ) and produce CUMMINS engines with globally uniform quality standards.
Control Systems
Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
LED Automatic Control Panelis a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.
AMF Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.
ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically; While main power resumes balanced, it controls the generator set to shut down after cooled.
Engine *Heavy duty diesel engine *Four stroke, water cooled *12V and 24V stater and charge alternator *Cooling radiator and fan *Maintenance free battery including ract and cable *Flexible fuel connection hoses and manual oil sump drain valve *Exhaust silencer Alternator *Brushless, single bearing, flexible disc *Insulation class: H *Protection class: IP23 *Self-exciting and Self-regulation Canopy *All canopy designed with modular principles *All metal canopy parts painted by electrostatic polyester power paint *Soundproof design ensure that the noise level be controlled in small scope *Convenient to lift and move *Easy to maintenance and operate
Base Frame *Base frame including position for forklift and crane *Integral fuel tank *Daily fuel tank continuously supply for 8-24 hours *Fuel tank easy to maintain and clean *Anti-vibration pads are flexed between engine and alternator.
Control System *Control, monitor and protect the Generator Set including: *High water temperature *Low oil pressure *Over and under speed *Over current *Under/Over generator voltage *Start and stop failure *Low and high battery voltage *Charge fail *Emergency stop
Genset Model
Prime Power
Standby Power
Engine Model
Cylinder
Bore×Stroke
Aspiration
Disp.
Alternator
Dimension (open type)
Weight
KVA/KW
KVA/KW
mm
L
KaiJie
Stamford
L×W×H(mm)
kg
KJ-C28
25 / 20
27.5 / 22
4B3.9-G1
4L
102×120
Natural
3.9
KTFW20
PI144E
1800×750×1350
800
Kj-C30
27.5 / 22
30 / 24
4B3.9-G2
4L
102×120
Natural
3.9
K-TFW22
PI144F
1800×750×1350
820
KJ-C41
40 / 32
44 / 35
4BT3.9-G1
4L
102×120
Turbo.
3.9
K-TFW32
PI144J
1800×750×1350
950
KJ-C65
60 / 48
66 / 52.8
4BTA3.9-G2
4L
102×120
Turbo.&Intercooled
3.9
K-TFW50
UCI224E
1800×750×1450
980
KJC100
94 / 75
103 / 82
6BT5.9-G1
6L
102×120
Turbo.
5.9
K-TFW75
UCI274C
2200×800×1450
1200
KJ-C110
100 / 80
110 / 88
6BT5.9-G2
6L
102×120
Turbo.
5.9
K-TFW80
UCI274C
2200×800×1450
1200
KJ-C140
125 / 100
137.5 / 110
6BTA5.9-G2
6L
102×120
Turbo.&Intercooled
5.9
K-TFW100
UCI274D
2350×850×1500
1500
KJ-C160
135 / 108
150 / 120
6BTAA5.9-G2
6L
102×120
Turbo.&air to air cooled
5.9
K-TFW110
UCI274E
2450×850×1500
1600
KJ-C200
160 / 128
176 / 140
6CTA8.3-G2
6L
114×135
Turbo.&Intercooled
8.3
K-TFW130
UCI274F
2500×850×1600
1800
KJ-C220
175 / 140
200 / 160
6CTA8.3-G2
6L
114×135
Turbo.&Intercooled
8.3
K-TFW150
UCI274G
2600×900×1600
1900
KJ-C250
200 / 160
220 / 176
6CTAA8.3-G2
6L
114×135
Turbo.&air to air cooled
8.3
K-TFW160
UCI274H
2600×900×1600
2000
KJ-C260
225 / 180
250 / 200
6LTAA8.9-G2
6L
114×145
Turbo.&air to air cooled
8.9
K-TFW180
UCD274J
2700×1000×1600
2100
KJ-C280
250 / 200
275 / 220
6LTAA8.9-G2
6L
114×145
Turbo.&air to air cooled
8.9
K-TFW200
UCD274K
2700×1000×1600
2200
Anhui Kaijie PowerTechnology Co., Ltd. is a professional manufacturer, specializing in production, design, sales, installation, maintenance and service of generator sets with CUMMINS, PERKINS, DEUTZ, Volvo, MTU, DOOSAN, Quanchai, Shangcai, Weichai, Yuchai, etc. Series world famous diesel engine and STAMFORD, LEROY SOMER, MARATHON, KAIJIE series AC alternators. Kaijie series generator set power range is from 10kVA-2500kVA. We believe that it is our assurance of quality and exceptional communication skills in generation set field as well as our competitive prices and professional service that will always mean your best choice. Comply strictly with ISO9001: 2008 Quality System, We always maintain the high quality of transmission and the standard of reliability, safety, durability as well as economy and environment-friendliness. And has formed a completed pre-sale, sale and after-sale service system. Win customers with quality; Stand in the market with credit; Redound upon society with value; Call on innovation and humanism, try our best to serve customers base on novel design and integrated service! Customers' satisfication, our traget!
