| Prod Model: |
BN5800DSE/W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cooling Method: |
Air Cooled |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Self-Starting Diesel Generator |
| Output Type: |
AC Single Phase |
Product Description

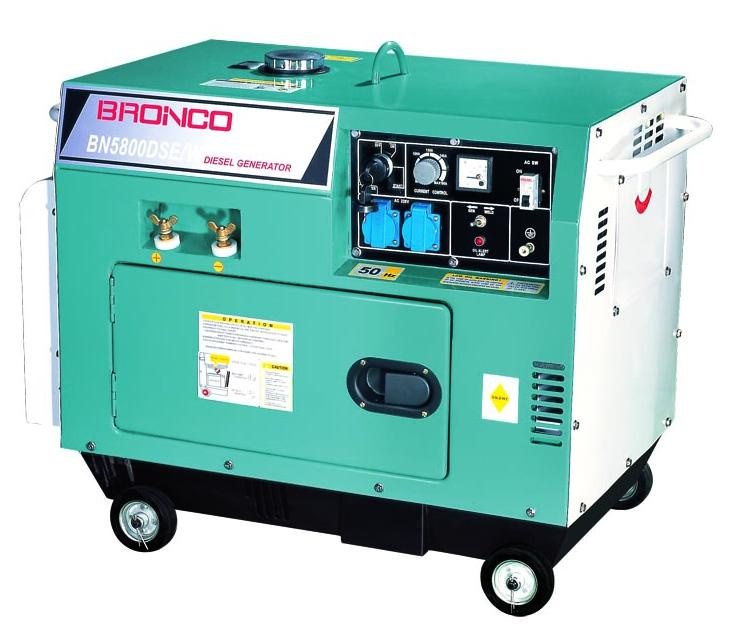

Electric Air-Cooled Welding Diesel Generator
ELECTRIC WELDING AIR- COOLED DIESEL GENERATORS
|
Engine model |
BN186F/E |
|
Rated output power(kw) |
2 |
|
Max.output power(kw) |
2.2 |
|
Rated frequency(HZ) |
50 |
|
Rated voltage(V) |
230 |
|
Rated current(A) |
8.7 |
|
Rated rotation speed(RPM) |
3000 |
|
Power factor(cosφ) |
1 |
|
Bore*Stoke(mm) |
86*70 |
|
Compression ratio |
19:1 |
|
Rotation direction |
clockwise |
|
Lubrication system |
Pressure splashed |
|
Lube oil type |
SAE-10W30(above |
|
Displacement(cc) |
406 |
|
Rated weilding voltage(v) |
55-65 |
|
Rated weilding direct current(A) |
160 |
|
Weilding rated voltage(V) |
26 |
|
Weilding current adjustment scope(A) |
50-180 |
|
Welding lasting load rate |
40% |
|
Structure type |
Silent type |
|
Starting system |
Electric starter |
|
Fuel tank capacity(L) |
16 |
|
Oil capacity(L) |
1.65 |
|
Noise level(DB) |
75 |
|
Net weight(KG) |
175 |
|
Overall dimension(MM) |
960*570*760 |
Bronco (Zhejiang) Electric Machinery Manufacturing Co., Ltd. is located in the beautiful Taizhou Economic Development Zone, where occupies an area of 40, 000 square meters.
BRONCO is a company that combines the development, manufacturing, and marketing of gasoline generators, diesel generators, water pumps, air compressors.
We possess advanced production testing equipment and a modern quality management system, and have always implemented comprehensive quality control through strict adherence to ISO9001 standards. Furthermore, our products have also passed GE, CE, EMC certification.
The company has adopted horizontal integration, and product development is both supported by scientific research institutions and LED by the demands of the market. We actively incorporate advanced technology, materials and production processes so as to constantly develop new products - some of which already meet the highest standards within China.
Our products are sold throughout the world in regions such as Europe, America, the Middle East, Southeast Asia, and Africa, where we have built up a complete sales network. In Dubai, the economic heart of the Middle East, we have created a sales branch, and have won the trust and support of customers through our outstanding products and consummate service.
