| Prod Model: |
EM184J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
34kw |
| Phase: |
Three Phase |
| Dimension: |
85X55X85mm |
| N.W.: |
226kg |
| G.W.: |
236kg |
| Qty/20ft: |
72PCS |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description
| Type | Rated Output(kw) | Rated Capacity(kva) | Net weight(kg) | Gross weight(kg) | dimension |
| Single phase 230V 50Hz / Three-phases 400V 50Hz |
| EM164A | 6.5 | 8.1 | 85 | 95 | 56*46*64 |
| EM164B | 8.8 | 11 | 90 | 102 | 56*46*64 |
| EM164C | 10.8 | 13.5 | 96 | 110 | 56*46*64 |
| EM164D | 12.8 | 16 | 99 | 116 | 56*46*64 |
| EM184E | 18 | 22.5 | 120 | 133 | 84*59*75 |
| EM184F | 22 | 27 | 150 | 156 | 84*59*75 |
| EM184G | 25 | 31.3 | 156 | 172 | 84*59*75 |
| EM184H | 30 | 37.5 | 216 | 226 | 85*55*85 |
| EM184J | 32 | 40 | 226 | 236 | 85*55*85 |
| EM224C | 34 | 42.5 | 235 | 255 | 108*66*94 |
| EM224D | 40 | 50 | 250 | 270 | 108*66*94 |
| EM224E | 48 | 60 | 270 | 290 | 108*66*94 |
| EM224F | 58 | 72.5 | 310 | 330 | 108*66*94 |
| EM224G | 68 | 85 | 350 | 370 | 108*66*94 |
| EM274C | 80 | 100 | 385 | 415 | 125*76*102 |
| EM274D | 91 | 114 | 405 | 435 | 125*76*102 |
| EM274E | 112 | 140 | 455 | 485 | 125*76*102 |
| EM274F | 128 | 160 | 500 | 530 | 125*76*102 |
| EM274G | 140 | 175 | 550 | 580 | 125*76*102 |
| EM274H | 160 | 200 | 600 | 630 | 125*76*102 |
Place of Origin: Fujian, China (Mainland)
Brand Name: EMEAN
Model Number: EM184J
Output Type: AC Three Phase
Speed: 1500/1800RPM
Frequency: 50/60Hz
Rated Power: 6.5KW-34KW
Rated Voltage: 400/230V, 440/254V, 380/220V, etc.
1. Rated Output: 6.5-34KW
2. Good quality and competitive price
3. CE, ISO9001 approved
Detailed product description:
1) Rated output: 6.5KW to 30kW (8kVA-37.5kVA)
2) Rated voltage: 400V, 400/230V, 230V, 415V, etc.
3) Rated frequency: 50 / 60Hz
4) Rated speed: 1, 500 / 1, 800rpm
5) Three-phase four-wire
6) Protection: IP21- IP23
7) Insulation: Class H
8) Standard: International Electrician Committee Command Standard IEC34, International Standardization Organization Command Standard ISO8528NEMA standard
9) Engine can be connected with steel or flexible materials
10) Steel frame cast-iron cover
11) Excellent silicon steel chip
12) Imports all bearing

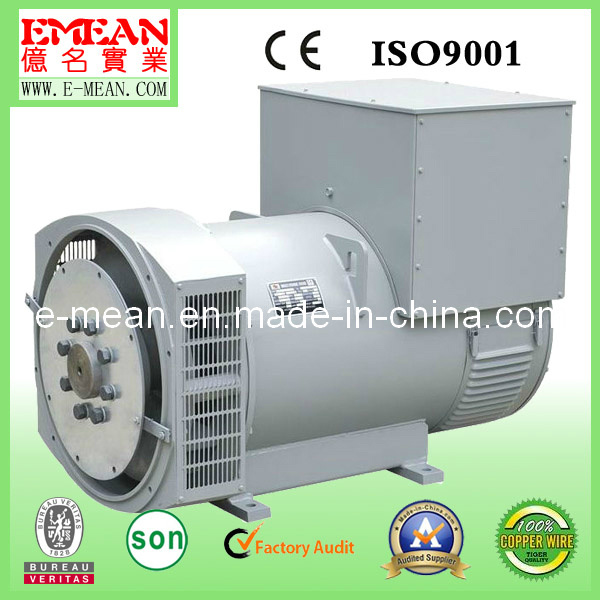

The ST series generators are mainly designed to serve as power source of small capacity which supply electricity for lighting purpose in ships as well as for household electric devices used in towns or villages. The generators are excellent in appearance, consolidate in construction and easy to maintain. Dimensions adopt IEC standard. They are suitable for Australia, Europe, America and other countries if the end covers are mabel B.
The generator adopt harmonic wave self-excitation constant voltage system and automatic voltage control excitation constant voltage system, both of them have excellent dynamic characteristic performance, convenient and reliable in operation
Fuzhou Emean Electric Machinery Co., Ltd. is one of the biggest enterprises, lies in "China Electrical Machinery and Appliances City"--Fuan. EMEAN is a private enterprise established in 2003, which is a comprehensive electrical machinery manufacturing company integrating product designs, production, marketing and service.
Rely on scientific and technological development, we continue to provide users high-tech products, which is our consistent pursuit. On the basis of absorbing the foreign advanced technology, we have already fetched in 10 lines advanced international machinery production. The main products manufactured by our company consist of more than 10 series, over 100 types, involving generators, diesel generating sets, gasoline generating sets and concrete cutter, of which all of our products have been passed the national attestation CCC, CE certificate, Nigeria Soncap and EPA certificate.
EMEAN is a young enterprise, but she owns the fresh and great-hearted blood, which make her more charmful. "Quality assurance, user first" is the agreement of EMEAN executives. Communicate with the domestic industry, scientific research institutions exchange and cooperation so as to improving the quality, such as: Design and production, commissioning and maintenance. Then occupy the market, and expand the scale of the company. We have been moving forward to a more prosperous achievement under the fierce competition.
Today, EMEAN staff pursue the guidelines--"aggressive, realistic, strict and unity" to blaze new trails. We make technology as the core, quality as life and users to God, dedicated to provide you with the highest & cost-effective products and meticulous after-sales service in order to shape a bright future.
