| Prod Model: |
2.0~2.2kw |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
110~240V |
| Frequency: |
50/60Hz |
| Speed: |
3000/3600rpm |
| Cooling Method: |
Air Cooled |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Output Type: |
AC Single Phase |
Product Description

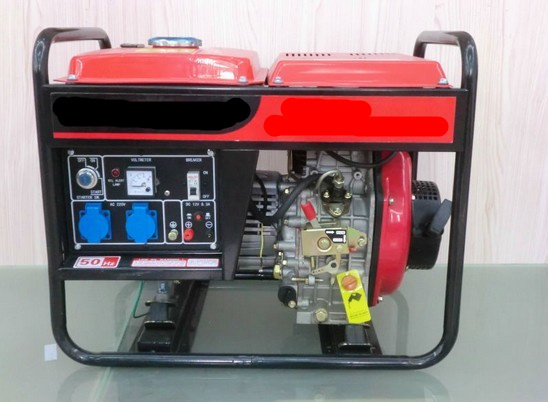

Air-cooled diesel generators are portable and widely used in daily life.
Warranty:
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
|
Model |
XDG2200/E |
XDG3600/E |
XDG5000/E |
XDG6000/E-3 |
|
FOB Fuzhou port,China |
|
|
|
|
|
Frame Type |
Open Type |
Open Type |
Open Type |
Open Type |
|
Frequency(Hz) |
50 / 60 |
50 / 60 |
50 / 60 |
50 / 60 |
|
Voltage(V) |
110~240 |
220/380 110/190 |
|
Rated Power (kVA) |
2.0 |
3.0 |
4.6 |
4.6 |
|
Max.powert(kVA) |
2.2 |
3.3 |
5.0 |
5.0 |
|
Phase |
Single |
3-phase |
|
Power factor |
1.0 |
1.0 |
1.0 |
0.8 |
|
Diesel Engine Type |
170F/FE |
178F/FE |
186FA/FAE |
186FA/FAE |
|
Max. Power Output (hp) |
4.0HP |
6.0HP |
10.0HP |
10.0HP |
|
Diesel Engine Type |
Air-cooled, 4-stroke,Vertical,Single-cylinder, Direct injection combustion. |
|
Bore*stroke(mm*mm) |
70*55 |
78*62 |
86*72 |
86*72 |
|
Displacement (cc) |
211 |
296 |
406 |
406 |
|
Compression rate |
20:01 |
20:01 |
19:01 |
19:01 |
|
Ignition System |
Explode Ignition |
|
Lube oil system |
Pressure splash Type |
|
Starting System |
Recoil or Electric |
|
Lube oil capacity(L) |
0.75 |
1.1 |
1.65 |
1.65 |
|
Fuel Tank Capacity(L) |
12.5 |
12.5 |
12.5 |
12.5 |
|
Dimension(L*W*H)(mm) |
630*475*560 |
700*475*580 |
720*490*620 |
720*490*620 |
|
N.W/G.W (kg) |
60/65 |
78/83 |
91/96 |
9/96 |
Qingdao Sanfengtai International Trade Co., Ltd. is a professional manufacturer and supplier of high quality diesel generator and accessories. The company has advanced production lines, sophisticated detection equipment, a complete quality management system, the number of highly qualified engineers and technicians. The business invloves all over the world.
Our factory is located in Dongying, Shandong province which has built a domestic advanced production line with functions of equipment, trial run and paint coating, and a modern laboratory of whole machine and accessories. The company always insists on the following quality policies and targets: Pushing the enterprise operating in the quality system which can be recognized by customes.
Keeping on the objectives of 'quality first, client supreme, all services for clients', Sanfengtai would like to create good future together with you.
