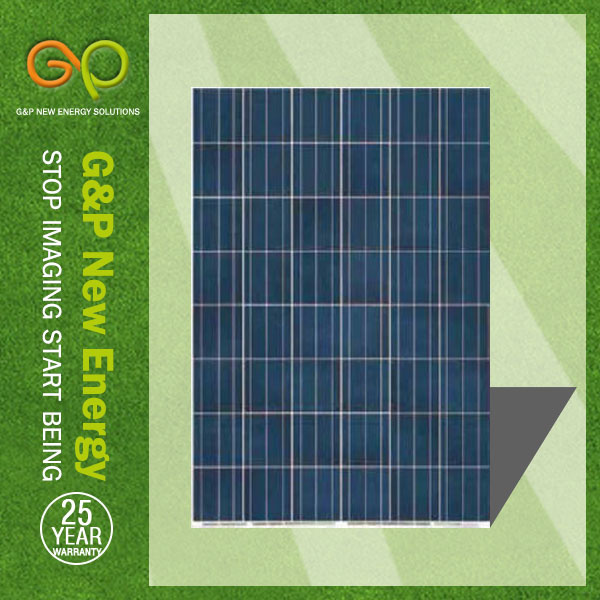

| Prod Model: |
GPP175-205W48 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame: |
Aluminium |
| System: |
Utility Grid Connect system |
Product Description
1. High conversion efficiency based on leading innovative photovoltaic technologies;
2. High stabillity with guaranteed+/-3%power output tolerance, ensuring return on investment;
3. Beautiful appearance; Features
4. Sealed with high transparency low iron tempered glass, anti-aging EVA, high insulation TPT, with the anodizing (or plating finish);
5. Withstands high wind-pressure and snow load;
6. Easy to install.
Quality and Safety:
1.25-year power output warranty with China Pacific Property Insurance Co., Ltd;
2. Rigorous quality control meeting the highest international standards;
3. ISO9001: 2008(Quality Management System)certified factories manufacturing world-class products;
4. Products meet international standards and through professional testing and certification authority (SGS, UL, CE, TUV).
Recommended Applications:
1. On-grid utility systems;
2. On-grid commercial systems;
3. Off-grid ground mounted systems;
4. Our products are widely used in solar lighting, lamps, household electricity, traffic, communication, meteorological, building and photovoltaic power plants and other fields.
|
Model Number |
GPP170W48 |
GPP175W48 |
GPP180W48 |
GPP185W48 |
GPP190W48 |
GPP195W48 |
GPP200W48 |
GPP205W48 |
|
Maximum power(Wmp) |
170 |
175 |
180 |
185 |
190 |
195 |
200 |
205 |
|
Maximum power voltage(Vmp) |
22.8 |
22.9 |
23 |
23.1 |
23.2 |
23.3 |
23.4 |
23.5 |
|
Maximum power current(Imp) |
7.46 |
7.64 |
7.83 |
8.01 |
8.19 |
8.37 |
8.55 |
8.72 |
|
Open circuit voltage(Voc)(V) |
29.7 |
29.8 |
29.9 |
30 |
30.1 |
30.2 |
30.3 |
30.4 |
|
Short circuit current(Isc)(A) |
7.48 |
7.67 |
8.02 |
8.22 |
8.41 |
8.6 |
8.8 |
8.99 |
|
Weight per piece(kg) |
13.6 |
14 |
14.4 |
14.8 |
15.2 |
15.6 |
16 |
16.4 |
|
Cells types & Size |
polycrystal silicon 156*156mm |
|
Size of module(mm) |
1324*990*40 |
|
Cells per Module (pcs) |
48 |
|
NOCT-Nominal operating cell temperature |
47±2 |
|
Maximum system voltage(VDC) |
1000 |
|
Cell Efficiency(%) |
>16 |
|
Max. Series Fuse Rating (A) |
15 |
|
Temperature coefficients of isc(%) |
0.065±0.015% |
|
Temperature coefficients of Voc(%) |
-(2.23±0.1)mv |
|
Temperature coefficients of Pm(%) |
-(0.5±0.05) |
|
Temperature coefficients of Im(%) |
+0.1% |
|
Temperature coefficients of Vm(%) |
-0.38 |
|
Temperature Range |
-40+85 |
|
Tolerance Wattage |
±5% |
|
Surface Maximum load Capacity |
30m/s(200kg/sq.m) |
|
Allowable Hail Load |
steel ball fall down from 1m height |
|
Front Glass |
3.2mm tempered |
|
Junction Box Type |
Black Ip65 |
|
Length of Cables(mm) |
90cm |
|
Output tolerance(%) |
±3% |
|
Frame(Material,Corners,etc) |
Anodizde Aluminum Alloy |
|
Standard Test Conditions |
AM1.5 1000W/m2 25 |
|
Warranty |
3 years product warranty and 25years 80%of power |
Our company supplys different kinds of products. High quality and favaroble price. We' Re pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
