Product Description

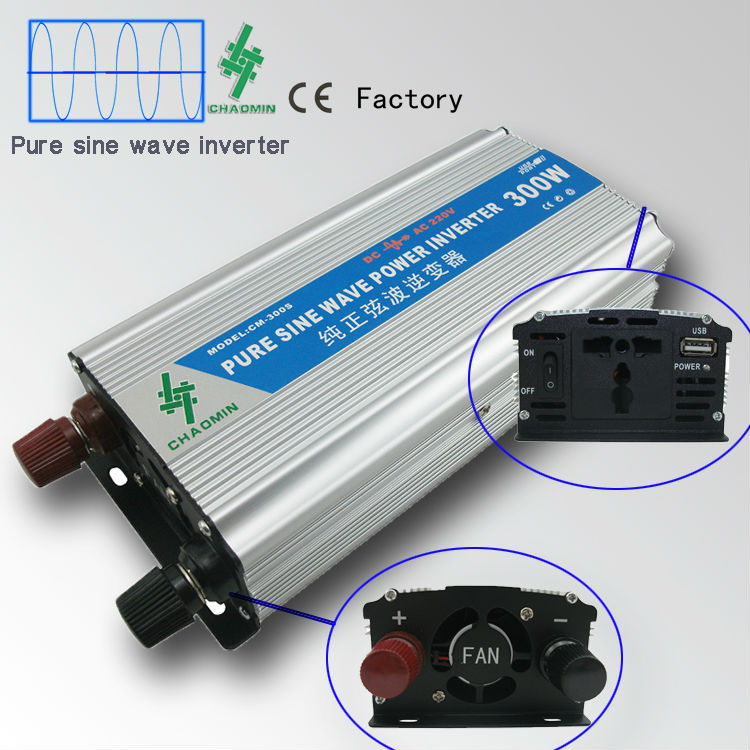

We are one of professional manufacturer in the field of power inverter in China, The Main products is Pure sine wave inverter, modified sine wave inverter, for home using, for solar system and for car.
MODEL
CM-300wS
CM-500wS
CM-1000wS
CM-2000wS
CM-3000wS
CM-5000wS
CM-6000wS
SPECIFICATION
DC INPUT
Input Voltage(Vdc)
12v /24V
12V/24V
12/24/48
12/24/48
24/48
24/48
24/48
Peak power
600w
1000w
2000w
4000w
6000w
10000w
12000w
Input AC Range(Vac)
120-230V/90v-120v
Input Frequency Range(Hz)
50HZ/60HZ
Charge Current
7~10A
13A~17A
17A~25A
Transfer Time(ms)
<=4 ms( OR 2S for generator option)
AC OUTPUT
Output Power(W)
300W
5000W
1000W
2000W
3000W
5000W
6000W
Output waveform
Pure Sine Wave
Output Voltage
220VAC/110VAC
Output USB Port
5V,500mA (optional)
Output Frequency
50HZ/60HZ±3%
Output Current(A)
1.6
3.2
6.4
9.5
12.7
15.9
Voltage Precision(VAC)
220±3%
Wave Distortion(TCKJ)
<=3%
Overload Capacity
100%~120%, 25 mins, 120%~200%, 1 mins, >200%, 0.1 mins
Inversion Efficiency
90%
Bypass Transfer time(ms)
<=4 ms
PROTECTION
Protection
over temperature/ over load/ over voltage/
low battery/ low voltage/ Input low/ hight voltage/ short current protection
AMBIENT
Temperature
-20~45 degree
DIMENSION
Package L×W×H
240*102*105(mm)
500*220*130(mm)
515*220*190(mm)
Weight(Kg)
0.98
1.2
2.2
4.3
6.5
7.5
9
Brand
ChaoMin Or OEM
Certificate
CE,ISO9001,ROHS,EMC,UL
Warranty
1 Year Warranty
