Product Description

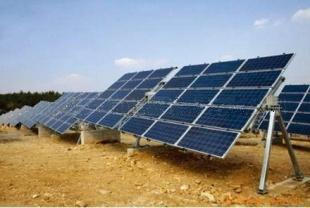

Solar Tracker 2X PV Mounting System
Solar Tracker 2X is a single-axis tracking system designed for ground-mount installation of a variety configurations. Solar Tracker 1X adopts a slew drive which is powered by a 24V DC or AC motor, enabling the angle of panels to be adjusted within the scope of 60 to 60 degree. With this product in place. All you have to do is to pre-set the configurations and the system will do the rest. The tracking system calibrates the positioning on daily basis, ensuring the accuaracy, enhancing the enercy yield, and most importantly, saving the labor costs to a great extent.
Benefits:
Easy Installation
Choice Quality
Diversified Application
Universal Compatibility
10-year Guarantee
100% Recyclable, environment friendly
Main Specifications:
|
Installation Site: Open Ground |
Tracker Type:1-Axis |
|
Module Type: Framed |
Tracking Mode:1 per time |
|
Max Area:20m² |
Working Wind Speed:<90km/h |
|
Max System Weight:1000Kg |
Max Wind Speed:140km/h |
|
Driver Type:Slew Drive |
Control Methods:PLC |
|
Ajustable Angle:-60°to 60° |
Life Time:15 years~20 years |
|
Motor:3000RPM(DC or AC 24V) |
Quality Guarantee:2 years |
|
Material:Zina-galvanized Steel |
Standard:AS/NZS 1170 and other international standards |
Junxin Industrial, TUV ISO9001: 2008 certified and established in 2000, is a professional manufacturer and exporter of wind turbine generators. After 9 years' development, our company now owns large numbers of professional personnel, advanced manufacturing equipments and examination facilities with an integrated service system of design, manufacture, installation, debugging, marketing and after-sales service etc.
The products of horizontal wind turbine generator range from 200W, 300W, 500W, 1KW, 2KW, 3KW, 5KW, 10KW, 20KW, 30KW and 50KW with CE and ISO9001 certificates honored. Vertical Axis Wind Turbines from 200W up to 300KW with CE and ISO Certificates.
Thanks to the wide sorts and good quality, the products have already taken up the majority of domestic market and have been exported to more than 70 countries and areas, say, Britain, France, the United States, Canada, New Zealand, Argentina, India etc, received high affection and reputation from the users. Furthermore, through years of development, we have taken the leading role in the line of manufacturing wind turbine generators in China.
