| Prod Model: |
CCF8.9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1051mm*558mm*710mm |
| Fuel Oil: |
MGO Only |
| Silent Cabinet: |
Optional |
| Stroke: |
Four Stroke |
| Type: |
Basic Diesel Generator |
| Cooling Method: |
Water Cooling |
| Installation Method: |
Fixed |
| Output Type: |
AC Single Phase |
| Landuse Type Of Unit: |
Marine |
Product Description

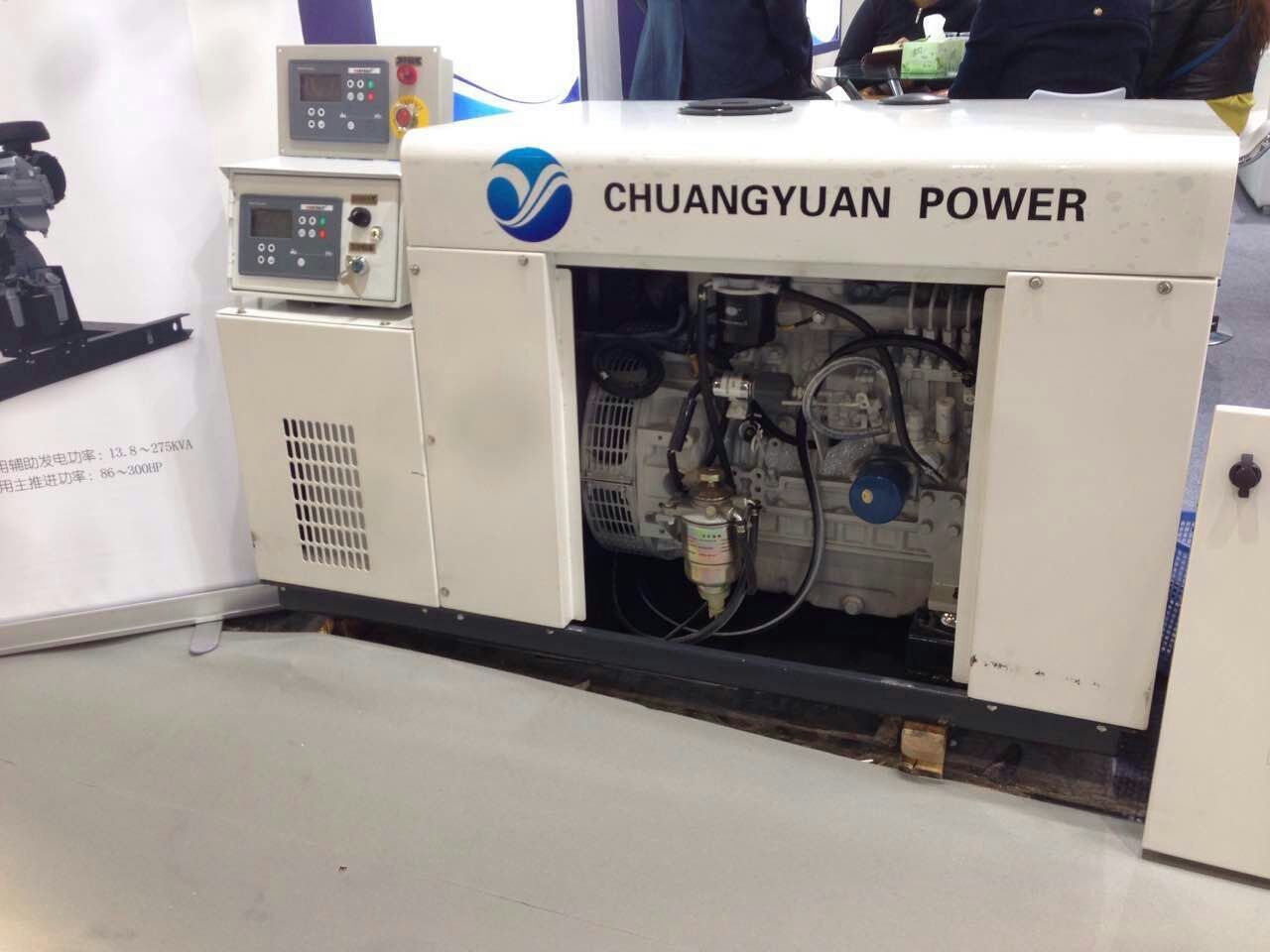

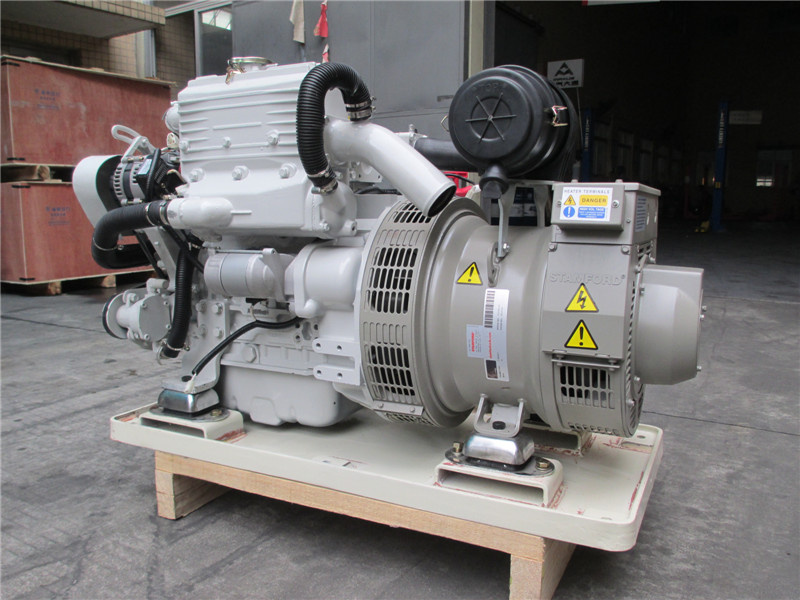

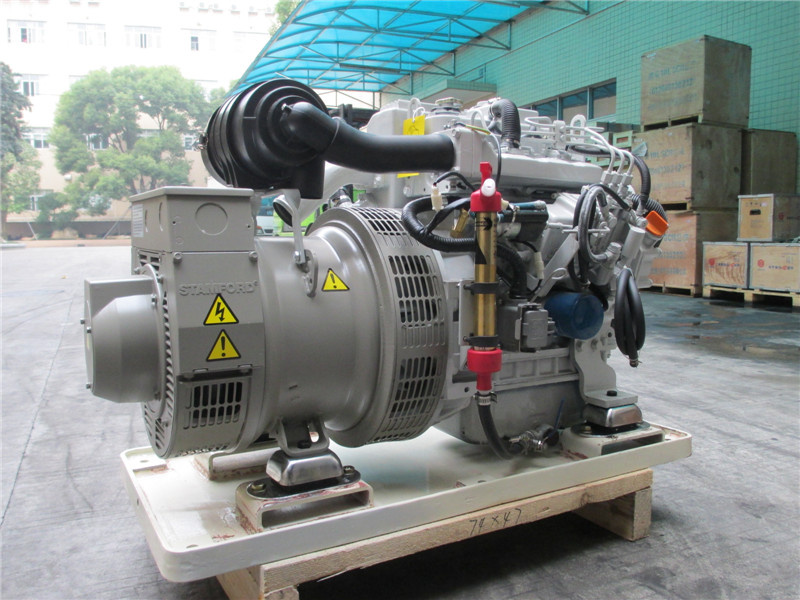

Marine Genset
KIPOR engine with Stamford alternator
Model: CCF8.9
Brand: CY Power
Rated power: 8.9 KW / 8.9kVA
Rated speed: 1500 r/min
Rated voltage: 230V
Rated current: 40.5A
Power factor: 1LAG
Dimension (L× B× H): 1051mm*558mm*710mm
Net weight: 320 KG
Acousitc housing is an option for this type of genset, and the noise level will be futher reduced to 75db.| Genset model | Engine model | Rated power | Fuel Consumption at Rated power | Genset rated & Standby output (KW & KVA) | Genset frequency (HZ) | Genset rated Voltage (V) & Current (A) | Genset net weight (KG) |
|
|
|
|
|
|
|
|
|
| CCFJ5 | KD373M | 6.7 | 1.1 | 5/6.25 & 5.5/6.9 | 50 | 220&22.7 | 210 |
| CCFJ8.9 | KD388M | 12.3 | 2 | 8.9/11.1&9.8/12.25 | 50 | 220&40.5 | 320 |
| CCFJ12 | KD488M | 16.4 | 2.6 | 12/15&13.2/16.5 | 50 | 220&54.6 | 340 |
| CCFJ20 | KD498M | 27.5 | 3.6 | 20/25&22/27.5 | 50 | 220&91 | 470 |
| CCFJ6 | KD373M | 8.1 | 1.4 | 6/7.5&6.6/8.25 | 60 | 220&27.3 | 220 |
| CCFJ25 | KD498M | 33 | 4.5 | 25/31.23&27.5/34.4 | 60 | 440&41 | 500 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
