| Prod Model: |
STC-20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
20kw |
| Phase: |
Three Phase |
| Dimension: |
740X460X630mm |
| N.W.: |
192kgs |
| G.W.: |
207kgs |
| Qty/20ft: |
120PCS |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description
| TYPE | Output | Current(A) | Pole Number | Sychronous Speed(r.p.m) |
| KVA | KW |
| Single phase 230V 50Hz/1500r/min |
| ST-2 | 2 | 2 | 8.7 | 4 | 1500 |
| ST-3 | 3 | 3 | 13 | 4 | 1500 |
| ST-5 | 5 | 5 | 21.8 | 4 | 1500 |
| ST-7.5 | 7.5 | 7.5 | 32.6 | 4 | 1500 |
| ST-10 | 10 | 10 | 43.3 | 4 | 1500 |
| ST-12 | 12 | 12 | 52.2 | 4 | 1500 |
| ST-15 | 15 | 15 | 65.3 | 4 | 1500 |
| ST-20 | 20 | 20 | 87 | 4 | 1500 |
| Three phase 400V 50Hz/1500r/min |
| STC-3 | 3 | 3.8 | 5.4 | 4 | 1500 |
| STC-5 | 5 | 6.3 | 9 | 4 | 1500 |
| STC-7.5 | 7.5 | 9.4 | 13.5 | 4 | 1500 |
| STC-10 | 10 | 12.5 | 18.1 | 4 | 1500 |
| STC-12 | 12 | 15 | 21.7 | 4 | 1500 |
| STC-15 | 15 | 18.8 | 27.1 | 4 | 1500 |
| STC-20 | 20 | 25 | 36.1 | 4 | 1500 |
| STC-30 | 30 | 37.5 | 54.1 | 4 | 1500 |
| STC-40 | 40 | 50 | 72.2 | 4 | 1500 |
| STC-50 | 50 | 62.5 | 90.2 | 4 | 1500 |
Place of Origin: Fuan, China (Mainland)
Brand Name: EMEAN

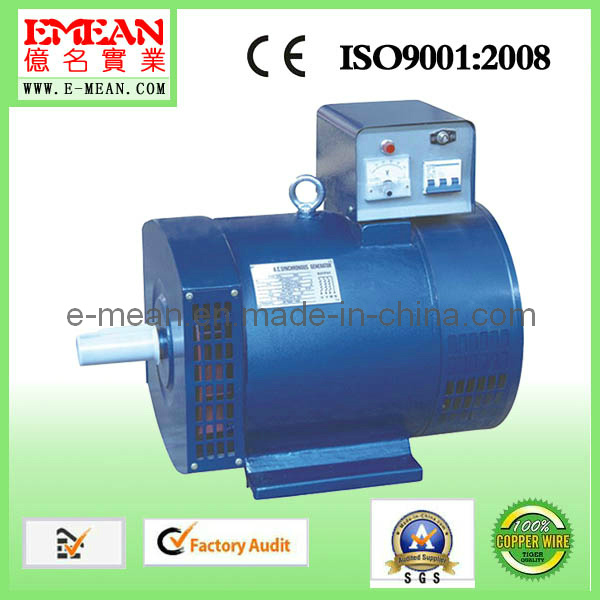

Model Number: STC-20
Output Type: AC Three Phase
Speed: 1500rpm
Frequency: 50/60Hz
Rated Power: 20KW
Rated Voltage: 400/230V
Rated Current: 36.1A
Pole number: 4
Power factor: 0.8
Motor: Unloaded squirrel induction motor
Color: Meet customer requirements
Samples: Offer
OEM: Accept
Advantage: Factory
Stock: Available
Certificates: CE, ISO
Stamford Alternators/Generators
TWG series, three-phase brushless synchronous generator is our newly developed one, by introducing Foreign advanced technology of well-known generator. Its body is constructed by steel shell and Its rotor is made as whole salient pole type with full damping, it utilize brushless self exciting Method and automatically controlled by AVR. It features small-size, light-weight, delicate Appearance and perfect performance.
The technical performance and mounting dimension of TWG series generator is coincident with International IEC norm and relevant national standard to fulfil, the quality of which can reach Up-to-day international level. Main performance index:
1. Four-pole brushless controllable self-exciting, drip-leak-Proof; ( IP21 protect class), class F insulation.
2. Full-damping whole salient construction guarantee generator to operate stably in any condition, and enable it to overspeed running under 150% rated r/p/m.
3. Adjusting rate of stable voltage<± 1%, adjusting rate of instant voltage: -15% ~+20%
4. Wave aberration rate of voltage, harmony wave factor of telephone THF<2.5%, effective factor of Telephone TIF<50
Applications This series generator has been extensively utilized as a standby power supply on post And telecommunication institutes, banks, stock exchange centers, airports, hospitals, hotels, Commercial building and factories. It can also be applied as a prime power supply for ships, Mines, and armies as well as highway construction and other rugged environment The ST series generators are mainly designed to serve as power source of small capacity which supply electricity for lighting purpose in ships as well as for household electric devices used in towns or villages. The generators are excellent in appearance, consolidate in construction and easy to maintain. Dimensions adopt IEC standard. They are suitable for Australia, Europe, America and other countries if the end covers are mabel B.
The generator adopt harmonic wave self-excitation constant voltage system and automatic voltage control excitation constant voltage system, both of them have excellent dynamic characteristic performance, convenient and reliable in operation
Fuzhou Emean Electric Machinery Co., Ltd. is one of the biggest enterprises, lies in "China Electrical Machinery and Appliances City"--Fuan. EMEAN is a private enterprise established in 2003, which is a comprehensive electrical machinery manufacturing company integrating product designs, production, marketing and service.
Rely on scientific and technological development, we continue to provide users high-tech products, which is our consistent pursuit. On the basis of absorbing the foreign advanced technology, we have already fetched in 10 lines advanced international machinery production. The main products manufactured by our company consist of more than 10 series, over 100 types, involving generators, diesel generating sets, gasoline generating sets and concrete cutter, of which all of our products have been passed the national attestation CCC, CE certificate, Nigeria Soncap and EPA certificate.
EMEAN is a young enterprise, but she owns the fresh and great-hearted blood, which make her more charmful. "Quality assurance, user first" is the agreement of EMEAN executives. Communicate with the domestic industry, scientific research institutions exchange and cooperation so as to improving the quality, such as: Design and production, commissioning and maintenance. Then occupy the market, and expand the scale of the company. We have been moving forward to a more prosperous achievement under the fierce competition.
Today, EMEAN staff pursue the guidelines--"aggressive, realistic, strict and unity" to blaze new trails. We make technology as the core, quality as life and users to God, dedicated to provide you with the highest & cost-effective products and meticulous after-sales service in order to shape a bright future.
