| Prod Model: |
ST-90 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
3-18kw |
| Voltage: |
220/380V |
| Structure: |
Vertical |
| Fuel: |
Electric |
| Flow Path: |
Water Pipe Boiler |
| Type: |
Natural Circulation |
| Installation: |
Fast Loading |
| Pressure: |
Low Pressure |
| Usage: |
Sauna Room |
| Combustion: |
Electirc |
Product Description

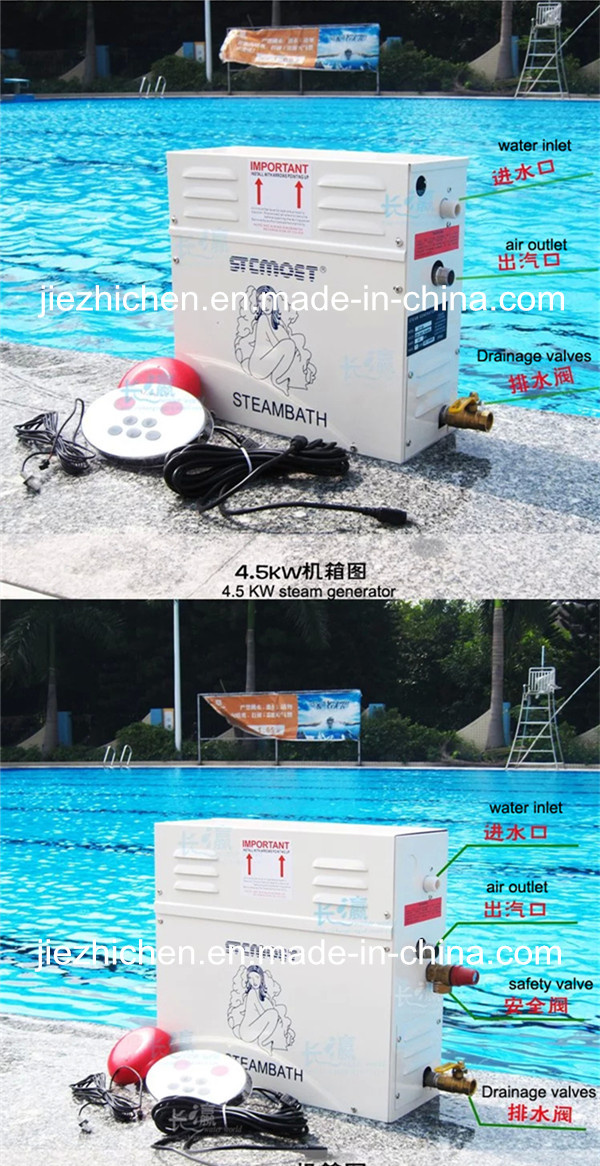

Steam Bath Generator Portahle Sauna Steam Generator1. Description for 4.5kw-18kw steam generators:
STCMKET sauna bath generator which uses electricity for heating and has a fully automatic control is especially designed for steam bath, it has the following features: Small structure, energy saving, big amount of steam, reliable function, safety and long life, it's anideal steam-generating device and your best choice.
1). Voltage: 380/220V
2). Water quality: Never use low quality water containing scale, high acid or alkaline, it's better to use disposed" soft water" or running water.
3). For safety reason, the steam generator must be securely grounded.
4). Keep inflammable and explsive materials away from installationsite.
5). In order to keep steam transfer-ring pipe smooth, never install sluidevalve in the steam generator outlet pipe.
| Model | Power
(Kw) | Voltage
(V) | Current
(A) | Inlet | Outlet | Package
(mm) | Weigth
(Kg) |
| ST-45 | 4.5 | 220/380 | 20 | 4" | 4" | 435*185*420 | 7.6 |
| ST-60 | 6 | 220/380 | 27 | 4" | 4" | 550*185*435 | 9 |
| ST-90 | 9 | 220/380 | 40.5 | 4" | 4" | 550*185*435 | 11.5 |
| ST-120 | 12 | 380 | 54 | 4" | 4" | 660*225*485 | 14.7 |
| ST-150 | 15 | 380 | 67.5 | 4" | 4" | 660*225*485 | 14.7 |
| ST-180 | 18 | 380 | 81 | 4" | 4" | 660*225*485 | 14.7 |
