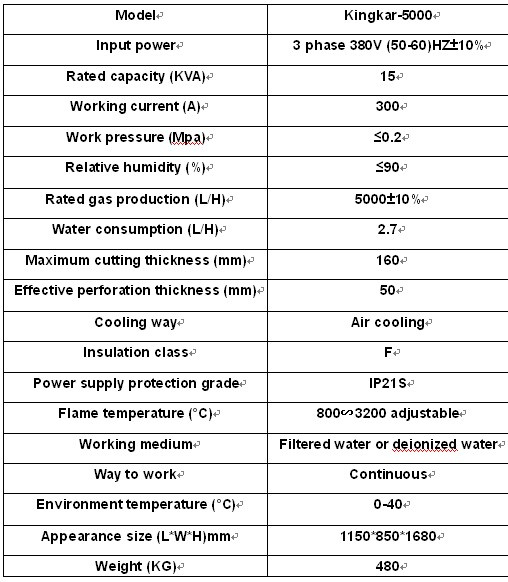

Model:
Kingkar-5000
Input Power:
3 Phase 380V (50-60)Hz±10%
Rated Capacity (kVA):
15
Working Current (a):
300
Work Pressure (Mpa):
<=0.2
Relative Humidity (%):
<=90
Rated Gas Production (L/H):
5000+-10%
Water Consumption (L/H):
2.7
Maximum Cutting Thickness (Mm):
160
Effective Perforation Thickness (Mm):
50
Gas Source:
Water and Electricity
Product Description
Cutting methods on the market today generally use oxygen and acetylene, propane, coke oven gas and other gases. Through experiment and practice, the using of hydrogen energy and water consumption lowers the cost to 40 to 60 percent than traditional methods. Hydrogen gas is separated from the water, through electrolysis to produce hydrogen and oxygen gas for industrial cutting. Hydrogen machine has a ten-year lifetime with a ten-year guarantee. Calculated according to a decade, the use of hydrogen energy machine is at least 3-5 times the cost savings.
Working Principle 1. The principle is based on the theory of electrolysis. 2. It is consumed only water and electricity in the course of using 3. To electrolyze water into pure hydrogen and oxygen. 4. Burning the gas then form Oxy-hydrogen flame. 5. Oxy-hydrogen flame is a high temperature energy source which can be used for precision cutting processing equipment, giving results that are economical, reliable, safe and environmental.
Characteristics of the Products:
Electrolysis of pure water to produce hydrogen with no corrosion and pollution, and the purity of hydrogen is extremely high.
With stable pressure and output, Hydrogen is controlled according to the requirements, and automatic control technology is perfect and reliable.
Power consumption is less, and the electrolysis is efficient.
Why we use hydrogen machine?
The hydrogen fuel comes from hydrogen generator, as compared with other fuels, has the following advantages: 1. Safety and environmental protection The molecular weight of hydrogen is 2, is 1/14 lighter than air. Therefore, the leakage of hydrogen in the air will escape from the ground automatically without forming aggregates. But other oil and gas gathering ground will constitute explosive hazard. Tasteless, non-toxic, does not cause intoxication, combustion products only water, do not pollute the environment.
2. High temperature energy The heat of 1kg hydrogen is 34000Kcal, triple gasoline. Hydroxide flame's temperature is up to 2800 degrees, which is higher than conventional liquid gas.
3. Centralized heat Oxy-hydrogen flame is straight, little heat loss and high efficiency.
4. Automatic regeneration Hydrogen is from water, then reduced to water of combustion.
5. Variable -temperature characteristics Flame regulation can be achieved according to the melting point temperature of the heated object.
6. Wide variety of sources Hydrogen by electrolysis of water extraction, water is inexhaustible, and per kg water can produce 1860 liters hydrogen gas.
7. That production that is used The use of advanced automatic control technology, machine hydroxide gas demand set by the user, not the storage of gas.
8. Wide range of applications: suitable for all the needs of gas.
Application field Suitable for all the needs of the flame processing establishments, used to replace acetylene, propane, liquefied petroleum gas and other gas, commonly used in steel cutting, welding metal oxide, jewelry processing require high energy gas plant, glass processing.
Packaging
We can do OEM and also can design as your special request. Welcome to visit our factory at any time in the future.
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.
KingKar Oxy-hydrogen generator for boiler only consumes water
And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.
Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
