| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,EXW |
| Min Order: | 100/Piece |
| Pay Type: | T/T |
| Prod Model: | ST-A02 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: | Home |
| Specification: | Normal |
A.This product is composed of dc power system,especially design for users in remote parts of power shortage country,field work and camping trip,also use for small dc electric power supply.
B.System main circuit adopts the high performance and high precision of 10 AD single chip processor as the main controller,has a variety of functions,such as battery charged too much and excessive discharge protection,when excessive discharge voltage within the prescribed scope,working state will changed from green to red and green lights shine and close all the output.

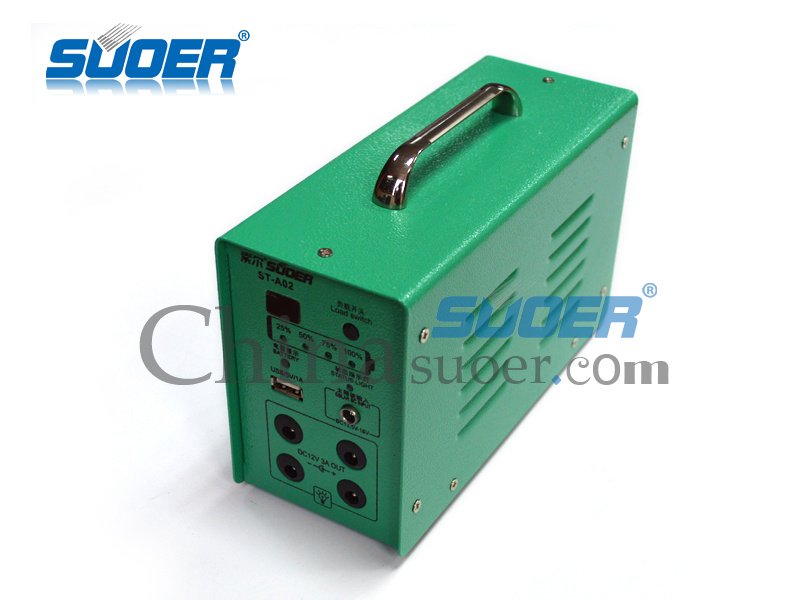

C.This product has multiple dc output interface,can meet various needs,output interface contains 4*12V dc output and 1*5V USB output.
2.Function Features
A. With single chip processor as the main controller,when the system is over charge and over discharge to intelligent management.Overcharge and over discharge protection function can prolong battery efficiency.
B. Low power consumption standby function:5 minutes later,if there is no detected output load,system will automatically switch to low power standby mode.
C. USB output overload protection:when charging as for mobile phone,MP3 and digital camera,etc.if the maximum output current 1000mA,USB output will shut down automatically.
D. Overload protection:when the lighting more than 3A,system is in the automatic protection,output automatically shut down.
E. Independance charge,discharge:when the product is in charge,it also be used for other products between each other.
F.Powerful monitoring and prompt:this system in addition to over charge,over fall,over-current protectionfunction,it also have the input,output short circuit functions,when you encounter these situations,system will be in the form of a bright red light to remind you until you remove the corresponding fault.
G. This system can use ac adapter to charge.
3.Technical Parameters
| Model | ST-A02 | |||||||||
| Battery capacity | 12V/7AH | |||||||||
| charging current rating | 3A | |||||||||
| DC interface | 4 | |||||||||
| DC total output | 12V/3A | |||||||||
| Reverse connect protection | √ | |||||||||
| Output protection | √ | |||||||||
| USB output interface | 1 | |||||||||
| USB output | 5V/1A | |||||||||
| USB output protection | √ | |||||||||
| Excitation loss | 5MA(AC:300MA) | |||||||||
| Standby loss | 0.2MA | |||||||||
| Charging circuit pressure drop | ≤0.26V | |||||||||
| Discharge circuit voltage protection | ≤0.15V | |||||||||
| Battery over-voltage protection | 17V | |||||||||
| Charging voltage | 13.6V | |||||||||
| Even charging voltage | 14.2V | |||||||||
| Float charging voltage | 13.8V | |||||||||
| Charging control mode | PWM Pulse Width Modulation | |||||||||
| Discharge cut-off voltage | 10.5V | |||||||||
| Restore electricity discharge | ≤15% | |||||||||
| Charging power | Solar panel:18v/10w with 6M cable | |||||||||
| AC charging adapter:input:AC 100~240v,DC 16v/2A | ||||||||||
| Output voltage | DC output port:DC 12V,The maximum current:3A | |||||||||
| USB output port:DC 5V,The maximum current:1A | ||||||||||
| Overpressure protection | 10.3v | Over-discharge protection voltage | 17V | |||||||
| Storage battery | 12V/7AH Lead-acid | |||||||||
| Charging time | By solar panel:about 10~11h | By charging adapter:about 4hours | ||||||||
| Duration time | 4pcs of 3w LED lamps,lighting time:6-7h | |||||||||
| Standby time | 6mA | Sleep state mode current | 0.2mA | |||||||
| Panel extensibility | You can match the other panels charge capacity,such as 20w/18v,30w/18v,etcwattage of panels later,charging time will be relatively reduced. | |||||||||
| Working Temperature | 0-40 Centigrade recommend working temperature:10~30 centigrade | |||||||||

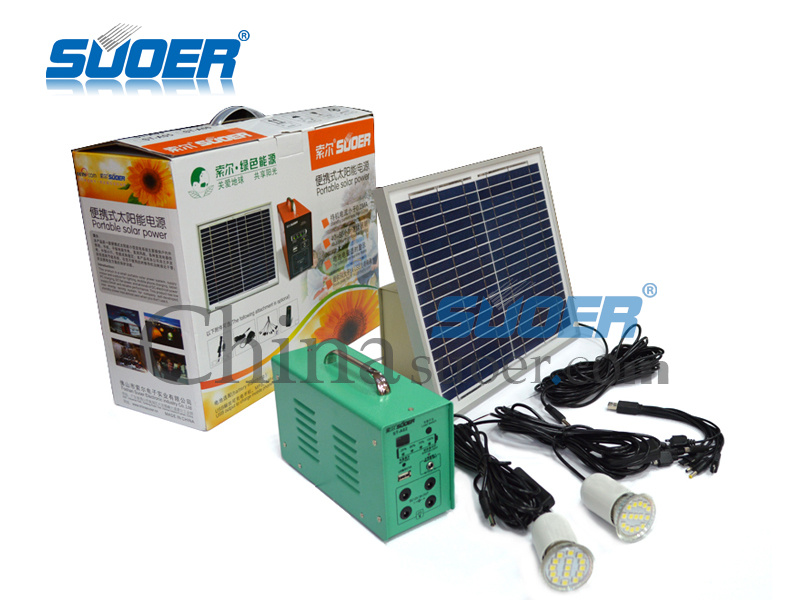

4.System configuration
| NO. | Material name | Specification | Unit | Qty | Notes | |||||

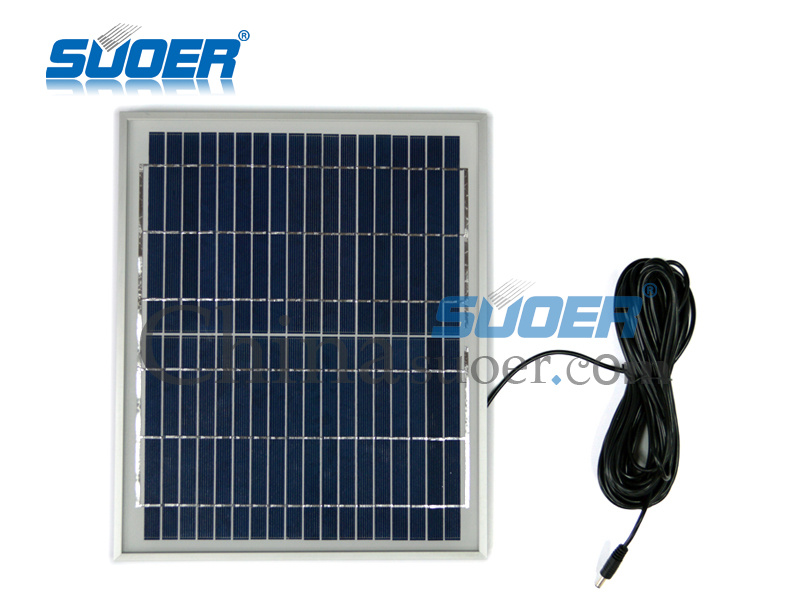

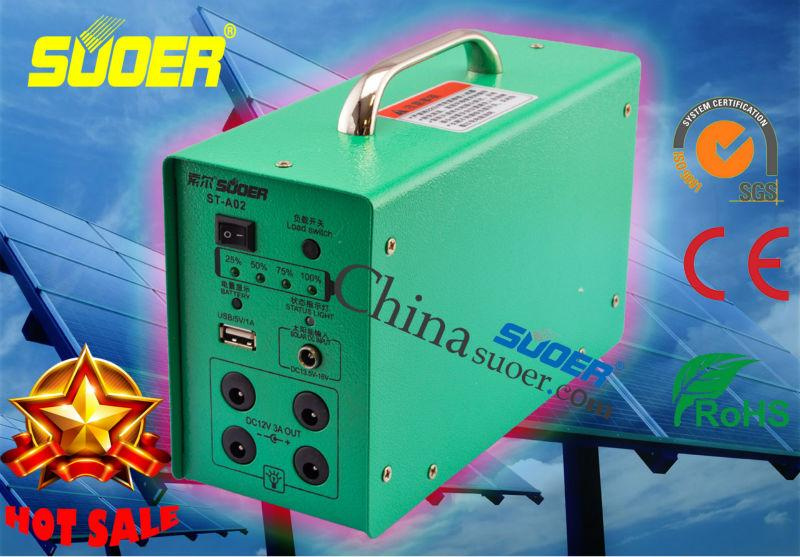

| 1 | Solar panel | 18v/10w | Pcs | 1 | 345x285x18mm | |||||
| 2 | Cabinet | 205x80x120mm with battery & PCB | Set | 1 | ||||||
| 3 | Lighting cable | 5m | Pcs | 2 | ||||||
| 4 | Light source | LED 3W | Pcs | 2 | Peak power after fully charged | |||||
| 5 | AC adapter | AC 100~240V/DC 16V/2A | Pcs | 1 | Optional | |||||
| 6 | Instruction | 1 | ||||||||
| 1)Solar charging indicator does not light when there is sunshine | Check whether the connection is correct and contact is reliable | |||||||||
| 2)DC output but not bright LED lights | Check whether the LED lights plug is loose,check DC voltage,Check whether switch of LED is "NO",Check whether the line connecting is right.If the entire things above are normal,the light still can't be lighted,replace the LED bulb. | |||||||||
| 3)Even if you don't pick up any load,working indicator light will be red,green,flashing | The system is in the low voltage protection condition,Pls charge to full timely. | |||||||||
| 4)The system is fully charged in short time after long-term use,and powers the loads in short time | Replace the battery for its damage | |||||||||
| 5)The indicator lights green with red flashing,and no DC output effects | Over loads,output recovers back after reducing loads used and triggering power switch twice. | |||||||||
