| Prod Model: |
LY96-GF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin:T Jiangsu China: |
Brand Name:T Lingyu |
| Output Type:T AC Three Phase: |
Speed:T 1500/1800/3000/3600rpm |
| Frequency:T 50/60Hz: |
Rated Power:T112.5kVA/90kw |
| Rated Voltage:T 110~570V: |
Rated Current:T AMPS |
| Payment Terms:T T/T L/C Credit: |
Fan:T Aluminum Fan |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Portable |
| Stroke: |
Six Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Single Phase |
Product Description

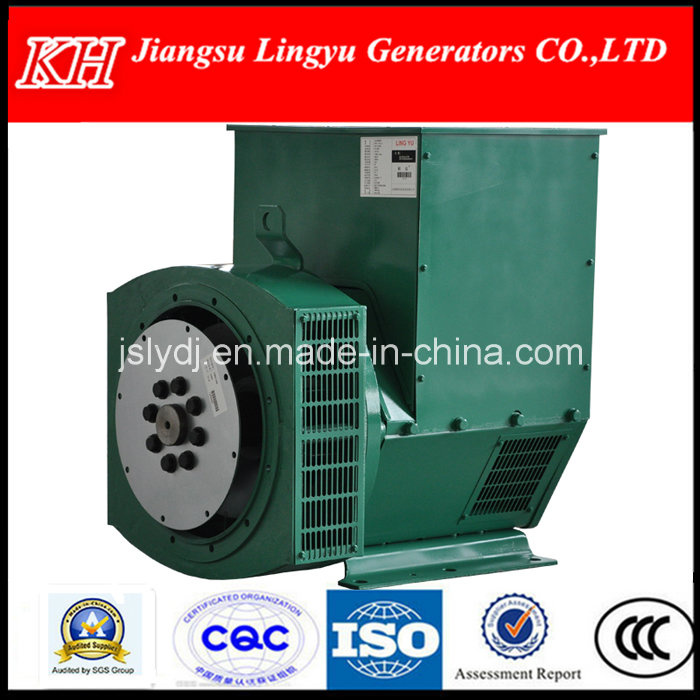

"LingYu" brand pure copper brushless generator
Detailed Picture
Specifications
1) Brushless Synchronous A. C. Alternator,
2) LingYu Type of Electric Generator,
3) Three Phase, IP23, Class H,
4) Power range: 8kVA-1250kVA(8KW-1000KW)
5)Rated voltage 380/400V, 110-690V option
6) Adjusting rate of stable voltage≤ 1%
7) Transient state voltage≤ -15% - +20%
8) Wave aberration rate of voltage THD≤ 3%
9) Telephone harmony wave factor of telephone THF≤ 2%
Features
1) A. V. R. (Automatic Voltage Regulator)controlled
2) 12 wire reconnectable winding;
3) 100% famous brand copper wire;
4) 2/3pitch windings avoid excessive neutral currents;
5) Dynamically balanced rotor and sealed-for-life bearings;
6) Permanent Magnet Generator(PMG) is available as an option;
7) Reliable supplier with Quality Materials, and strict Quality Controller (by QC Dept. )
8) Easily coupled with power networks or other genetator sets,
9) Balance rotor with single or two sealed ball bearings available,
10) Convenient installation and easy maintenance, easy access to terminal, rotating rectifier and coupling bolts,
11) Wide range of flange adaptor and single bearing coupling disc,
Characteristics:
Permanent magnet generator system,providing invari-able excitation on all occasions.
Easy to be connected in parallel into power supply net-works or with other generators.Standard2/3 pitch windings check excessive midline power.
Balanced rotor with single or double sealed ball bearings or grease-rechargeable bearings.
Simple in installation,easy in maintenance& services and equipped with wiring terminals,rotating diodes and cou-pling bolts,which are extremely easy for operation.
Meeting all the leading industrial and marine standards related.
| SAE/ Frame No. | Continuous Duty |
| Brushless Alternator Model | Rated Output (KW/KVA) | Specification |
| KW | KVA | Packing Size(cm) | G.W/N.W(kg) |
| KH274C | SEA1,2,3#/ 10,11.5,14disk | 80 | 100 | 840*590*830 | 415*385 |
| KH274D | 96 | 120 | 435*405 |
| KH274E | 112 | 140 | 485*455 |
| KH274F | 128 | 160 | 530*500 |
| 1) Insulation Class: H |
| 2) Protection Class: IP 21 or IP23 |
| 3) All generators have two kinds of coupled construction: single-bearing or double-bearing |
To know more details, please feel free to contact us by the following way:
FAX:0514-86827818
TEL:0514-86826088
MOBILE:+86-15052559798
Jiangsu Lingyu Generator Co., Ltd. (hereinafter referred to as "Lingyu") is professional manufacturer of synchronous brushless alternators and diesel generating sets. Our workshop covers 100, 00sqm, and supply capacity can over 8000 units per year. And we are two hours away far from Shanghai port.
Lingyu produces Stamford type brushless alternators, range from 8kVA to 1250kVA, 50Hz/60Hz option, rpm 1500-1800rpm, voltage 110V-690V, class H, IP23, all easily coupled with Industrial&Marine, Diesel&Gasoline engines, world first-class of Cummins, Lovol, Volvo Penta, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc, and our alternator are widely used in industry, commercial, real estate, hospital, hotel, railway, telecommunications, data-centers and mining etc.
Lingyu people treat Quality and Service as enterprise' S life, and has competitive advantages
1) Filters reliable suppliers with quality materials,
2) 100% quality copper wire, bearings, etc,
3) Strict Quality Control by QC. Dept.
4) comformity to IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59.
Certified of CCC, CE, TUV, EPA, SGS
5) 2 years warranty-the first supplier who can offer in China.
6) Ships general parts within 3days upon customer' S complaint
Lingyu generators are being exported to Europe, Africa, and many other regions, obtaining great corporate reputation and long-terms partner cooperations.
Warmly welcome to Lingyu.
